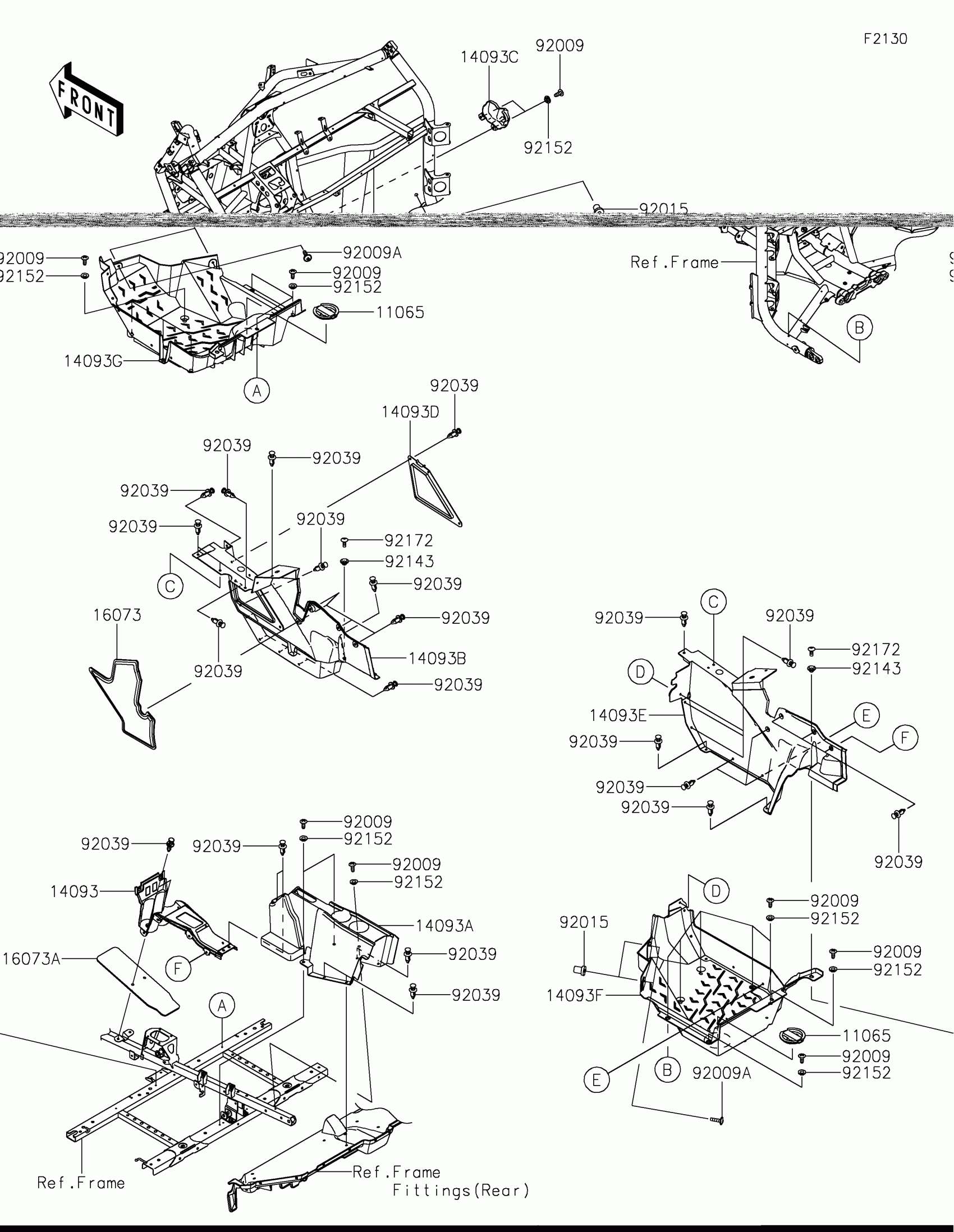

Kawasaki TERYX KRX® 1000 SE Frame Fittings(Front) Diagram

Description

Price

11065

CAP,FLOOR

11065-1423

$11.22

14093

COVER,CENTER CONSOLE,FR

14093-0833

$76.40

14093A

COVER,CENTER CONSOLE,RR

14093-0834

$33.86

14093B

COVER,FLOOR,CNT,RH

14093-0838

$43.93

14093C

COVER,FR GEAR,SIDE

14093-0839

$3.79

14093D

COVER,MAINTENANCE

14093-0850

$7.91

14093E

COVER,FLOOR,CNT,LH

14093-1161

$45.06

14093F

COVER,FLOOR,LH

14093-1208

$136.18

14093G

COVER,FLOOR,RH

14093-1209

$136.18

16073

INSULATOR

16073-0898

$60.62

16073A

INSULATOR

16073-0940

$40.42

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92039

RIVET

92039-0776

$1.19

92143

COLLAR

92143-1057

$5.00

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92172

SCREW,TAPPING,6X16

92172-0739

$0.85
