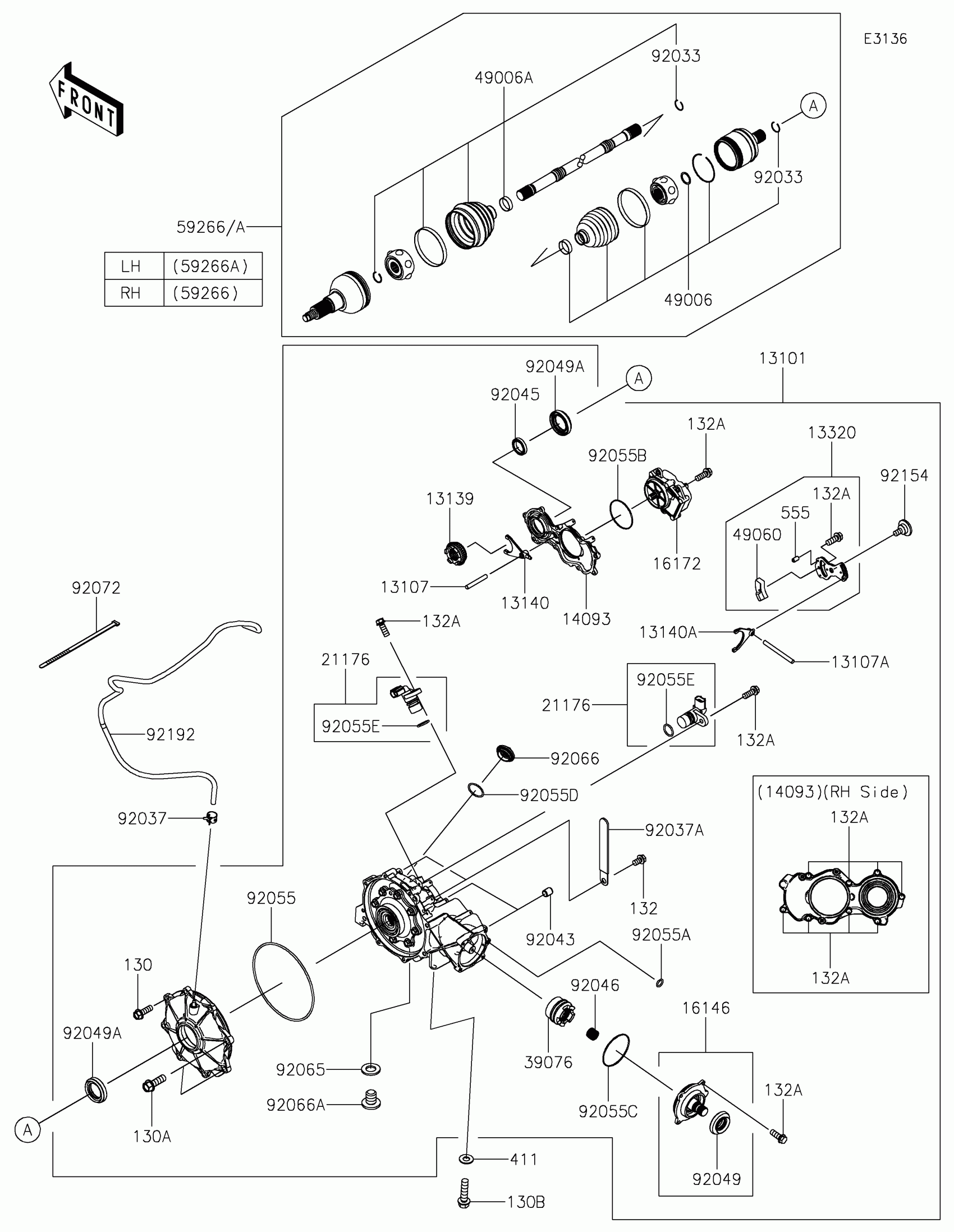

Kawasaki TERYX KRX® 1000 SE Drive Shaft-Front Diagram

#

Description
Price

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0730

$1,802.10

13107

SHAFT,DIFF LOCK

13107-0768

$9.43

13107A

SHAFT

13107-0887

$5.07

13139

SHIFTER,DIFF

13139-0035

$125.59

13140

FORK-SHIFT

13140-0674

$25.91

13140A

FORK-SHIFT

13140-0675

$25.91

13320

LEVER-ASSY

13320-0033

$52.72

14093

COVER,RH

14093-0707

$138.82

16146

COVER-ASSY,INPUT SHAFT

16146-0740

$127.23

16172

ACTUATOR

16172-0030

$637.73

21176

SENSOR,SPEED

21176-0891

$92.95

39076

LIMITER

39076-0047

$75.65

49006

BOOT,INSIDE

49006-0615

$94.95

49006A

BOOT,OUTSIDE

49006-0616

$94.99

49060

CAM

49060-0025

$83.52

59266

JOINT-BALL,RH

59266-0761

$864.28

59266A

JOINT-BALL,LH

59266-0762

$897.55

92033

RING-SNAP

92033-0837

$6.22

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-1993

$5.52

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92045

BEARING-BALL,6806

92045-0826

$45.82

92046

BEARING-NEEDLE

92046-1234

$23.10

92049

SEAL-OIL

92049-0160

$12.92

92049A

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

$13.57

92055

RING-O,190.2X4.2

92055-0121

$20.37

92055A

RING-O,7.5X1.5

92055-0756

$1.11

92055B

RING-O,1.9X71.8

92055-0781

$3.32

92055C

"O" RING

92055-081

$17.91

92055D

RING-O,35.8MM

92055-1281

$7.34

92055E

RING-O

92055-1639

$3.09

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,36X7.5

92066-0744

$8.22

92066A

PLUG,12X15

92066-0943

$18.22

92072

BAND,L=218

92072-032

$5.00

92154

BOLT

92154-3860

$9.23

92192

TUBE,5.8X10.8X1275

92192-1922

$21.63

130

BOLT-FLANGED,8X25

130CA0825

$1.46

130A

BOLT-FLANGED,10X30

130CA1030

$2.32

130B

BOLT-FLANGED,10X40

130CA1040

$2.83

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

411

WASHER-PLAIN,10MM

411AA1000

$0.96

555

PIN-SPRING,4X8

555A0408

$3.92
