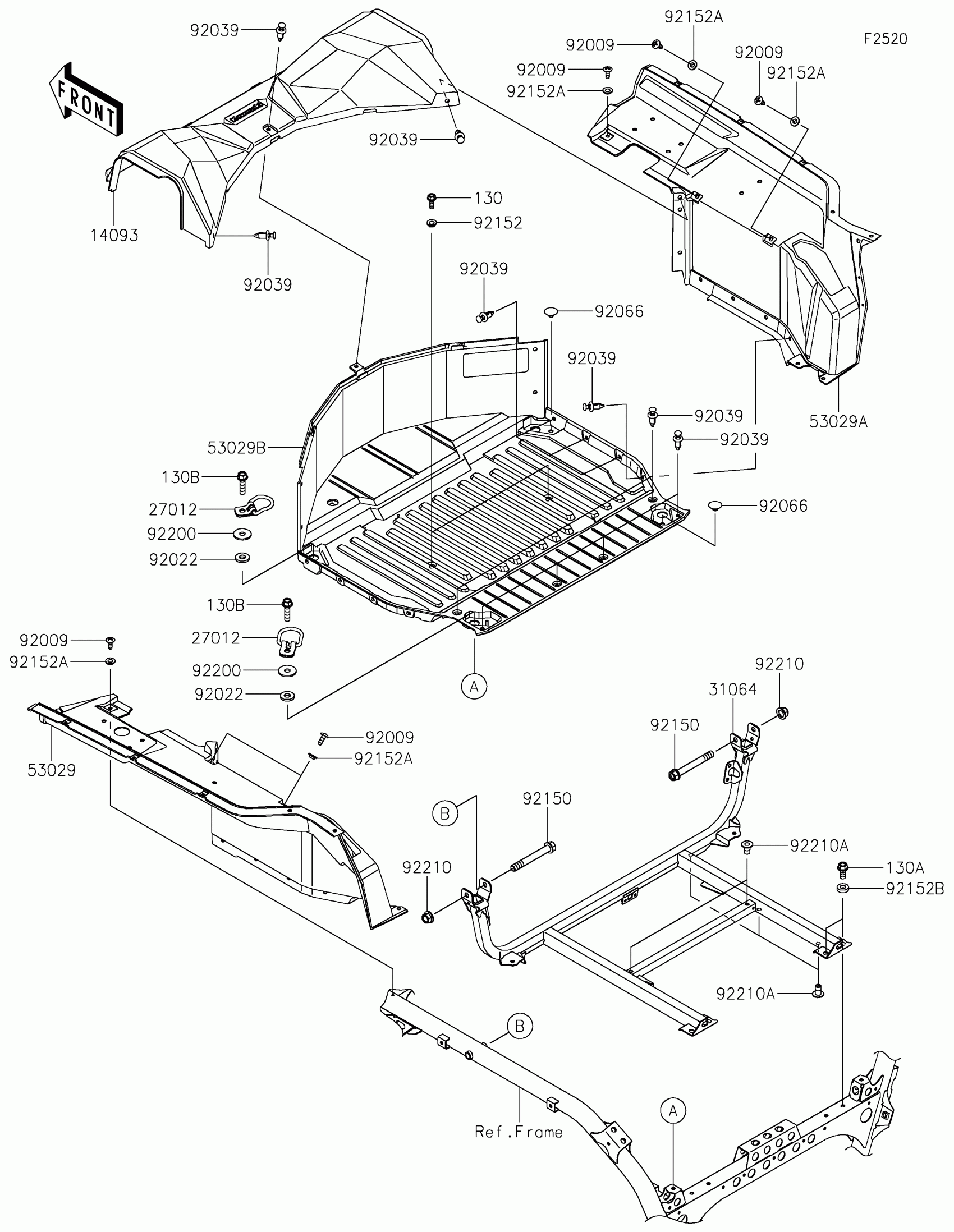

Kawasaki TERYX KRX® 1000 SE Carrier(s) Diagram

Description

Price

14093

COVER,MAINTENANCE

14093-0799

$41.18

27012

HOOK

27012-0863

$8.22

31064

PIPE-COMP,RR CARRIER FRAME

31064-0716

$194.92

53029

CARRIER,LH

53029-0360

$38.18

53029A

CARRIER,RH

53029-0361

$38.18

53029B

CARRIER,BASE

53029-0368

$129.63

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92022

WASHER,10X22X3.2

92022-1944

$5.00

92039

RIVET

92039-0776

$1.19

92066

PLUG

92066-1485

$2.44

92150

BOLT,10X80

92150-1893

$3.97

92152

COLLAR

92152-0224

$5.65

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92152B

COLLAR,8.2X18X5

92152-1848

$5.69

92200

WASHER,9X28X2.3

92200-1951

$4.39

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.95

130

BOLT-FLANGED,6X18

130CA0618

$1.78

130A

BOLT-FLANGED,8X18

130CA0818

$2.55

130B

BOLT-FLANGED,8X30

130CA0830

$1.08
