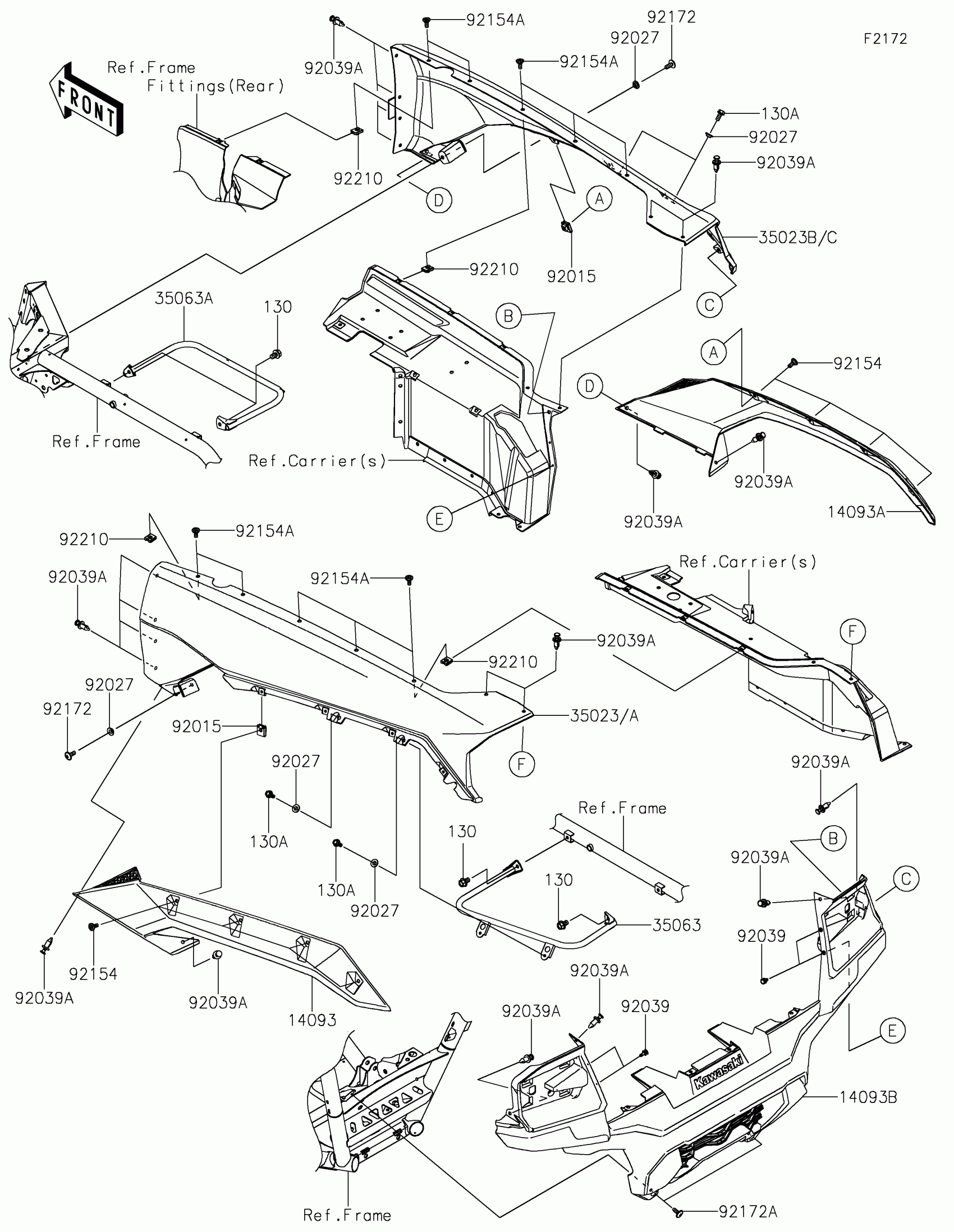

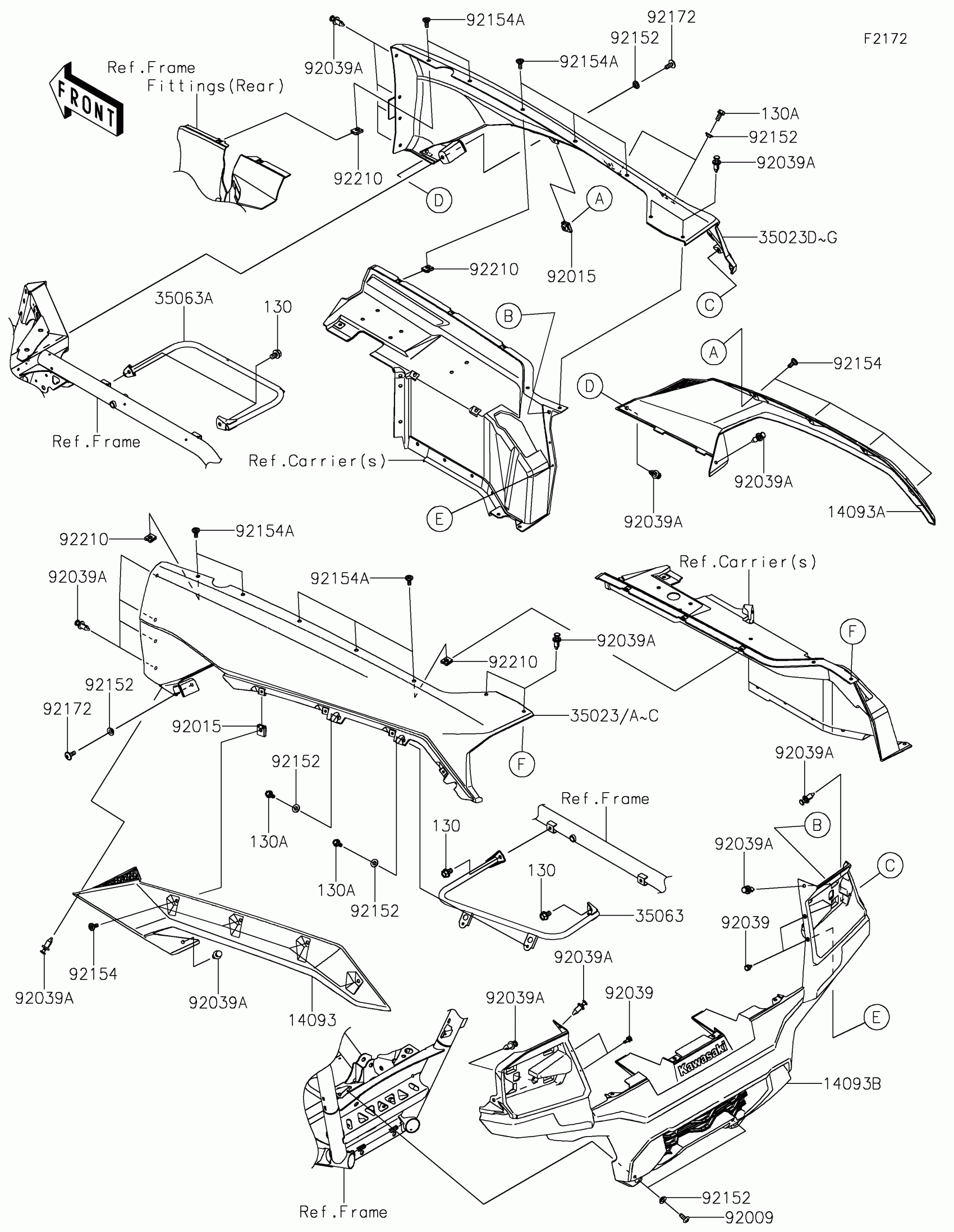

Kawasaki TERYX KRX® 1000 Rear Fender(s) Diagram

Description

Price

14093

COVER,FLAP,LH

14093-0796

$88.78

14093A

COVER,FLAP,RH

14093-0797

$88.78

14093B

COVER,TAIL

14093-0798

$234.32

35023

FENDER-REAR,LH,L.GREEN

35023-0453-290

$261.21

35023A

FENDER-REAR,LH,M.M.WHITE

35023-0453-66F

$276.58

35023B

FENDER-REAR,RH,L.GREEN

35023-0454-290

$261.21

35023C

FENDER-REAR,RH,M.M.WHITE

35023-0454-66F

$276.58

35063

STAY,LH

35063-1462

$102.89

35063A

STAY,RH

35063-1463

$102.89

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-0776

$1.19

92154

BOLT

92154-2474

$1.59

92154A

BOLT

92154-3957

$2.32

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0711

$3.02

92210

NUT

92210-1125

$4.76

130

BOLT-FLANGED,8X12

130BA0812

$0.95

130A

BOLT-FLANGED,6X14

130CA0614

$4.12
