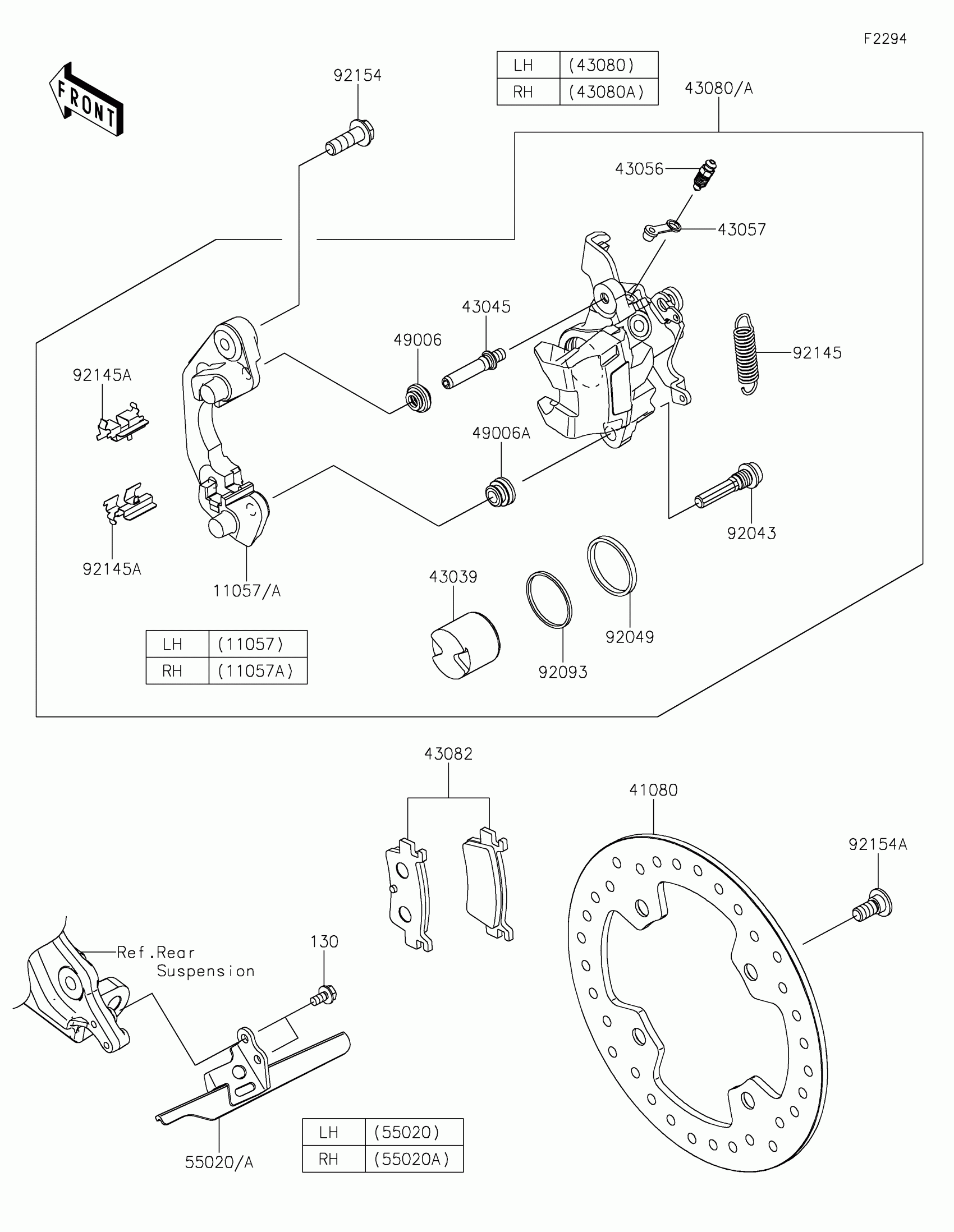

Kawasaki Teryx KRX® 1000 Rear Brake Diagram

Description

Price

11057

BRACKET,LH

11057-2900

$48.38

11057A

BRACKET,RH

11057-2902

$48.38

41080

DISC,BRAKE

41080-0712

$71.71

43039

PISTON-BRAKE

43039-0022

$70.89

43045

SHAFT-CALIPER

43045-0017

$17.26

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,RR,LH

43080-0223

$306.84

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0224

$306.84

43082

PAD-ASSY-BRAKE

43082-0197

$105.10

49006

BOOT

49006-0566

$5.24

49006A

BOOT

49006-0624

$3.73

55020

GUARD,RR-CALIPER,LH

55020-2268

$10.54

55020A

GUARD,RR-CALIPER,RH

55020-2269

$10.54

92043

92043-0985

$11.89

92049

SEAL-OIL

92049-0830

$8.71

92093

SEAL

92093-0743

$8.71

92145

SPRING,RETURN,47MM

92145-1690

$5.24

92145A

SPRING

92145-1905

$14.25

92154

BOLT,FLANGED,10X30

92154-0543

$9.43

92154A

BOLT,SOCKET,10X23

92154-0713

$4.10

130

BOLT-FLANGED,6X12

130CA0612

$3.96

Kawasaki Teryx KRX® 1000 Rear Brake Diagram

BRACKET,LH

BRACKET,RH

DISC,BRAKE

PISTON-BRAKE

SHAFT-CALIPER

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,RR,LH

CALIPER-SUB-ASSY,RR,RH

PAD-ASSY-BRAKE

BOOT

BOOT

GUARD,RR-CALIPER,LH

GUARD,RR-CALIPER,RH

PIN

SEAL-OIL

SEAL

SPRING,RETURN,47MM

SPRING

BOLT,FLANGED,10X30

BOLT,SOCKET,10X23

BOLT-FLANGED,6X12
