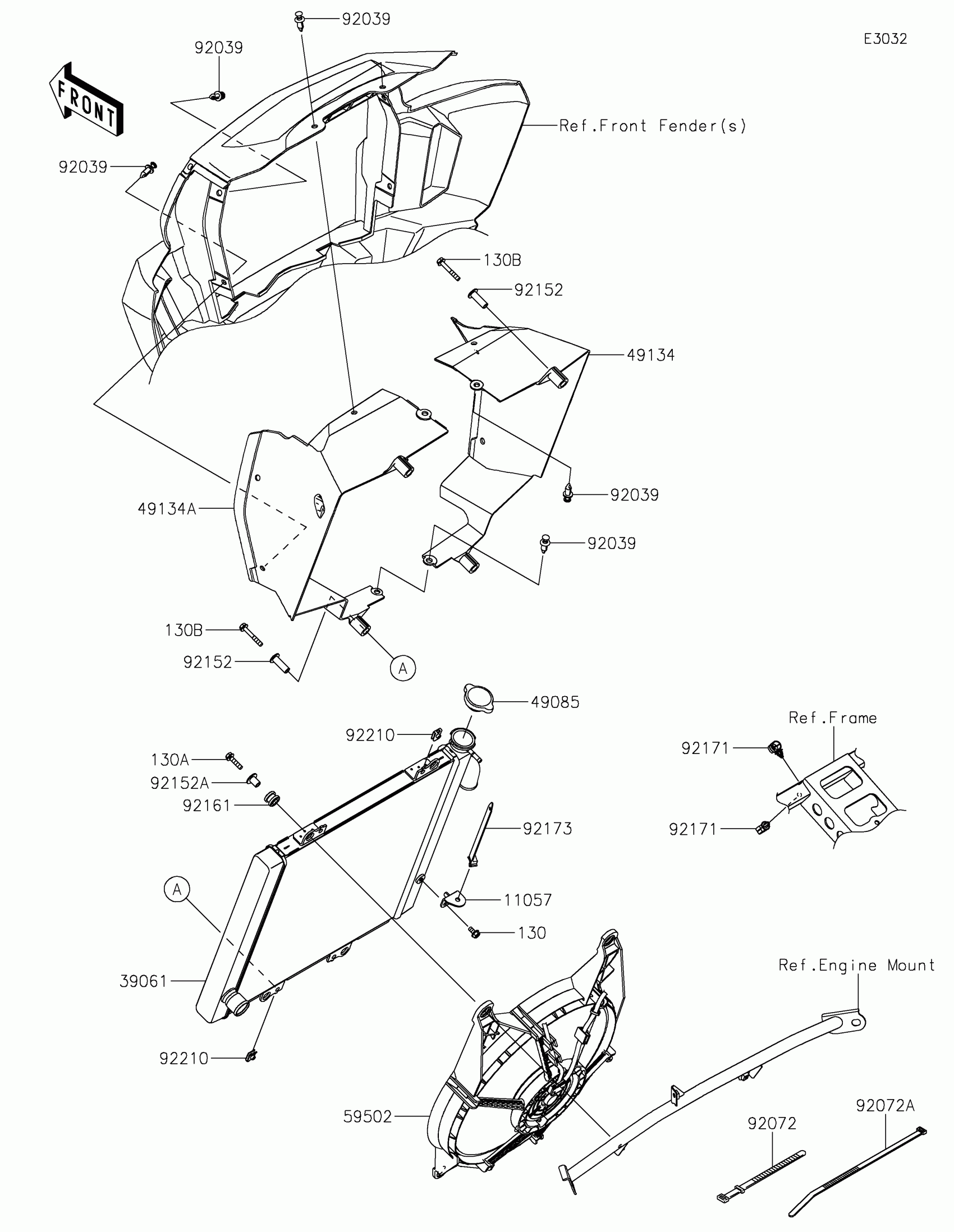

Kawasaki TERYX KRX® 1000 Radiator Diagram

Description

Price

11057

BRACKET

11057-2564

$4.52

39061

RADIATOR-ASSY

39061-0786

$695.72

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

49134

SHROUD,RH

49134-0001

$15.84

49134A

SHROUD,LH

49134-0002

$16.07

59502

FAN-ASSY

59502-0628

$386.90

92039

RIVET

92039-0776

$1.19

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR

92152-1215

$7.36

92152A

COLLAR

92152-1512

$8.56

92161

DAMPER

92161-1349

$4.68

92171

CLAMP,13MM DIA.

92171-1415

$2.03

92173

CLAMP

92173-1980

$2.80

92210

NUT

92210-0754

$2.02

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

130B

BOLT-FLANGED,6X40

130BA0640

$1.20
