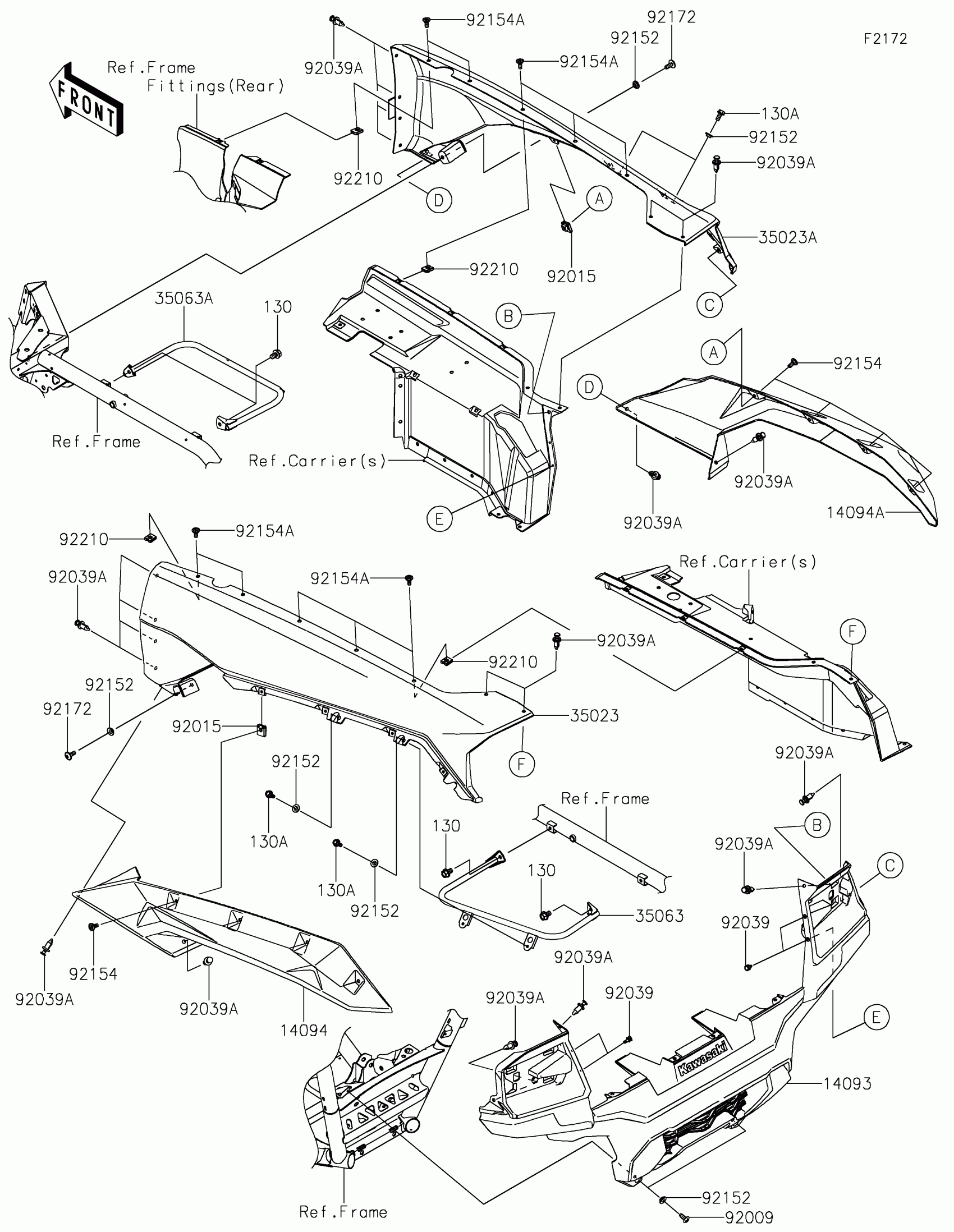

Kawasaki TERYX KRX® 1000 LIFTED EDITION Rear Fender(s) Diagram

Description

Price

14093

COVER,TAIL

14093-0798

$234.32

14094

COVER,RR FENDER,LH

14094-0231

$239.11

14094A

COVER,RR FENDER,RH

14094-0232

$239.11

35023

FENDER-REAR,LH,L.GREEN

35023-0463-777

$268.66

35023A

FENDER-REAR,RH,L.GREEN

35023-0464-777

$268.66

35063

STAY,LH

35063-1462

$102.89

35063A

STAY,RH

35063-1463

$102.89

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-0776

$1.19

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT

92154-2474

$1.59

92154A

BOLT

92154-3957

$2.32

92172

SCREW,6X16

92172-0236

$0.85

92210

NUT

92210-1125

$4.76

130

BOLT-FLANGED,8X12

130BA0812

$0.95

130A

BOLT-FLANGED,6X14

130CA0614

$4.12
