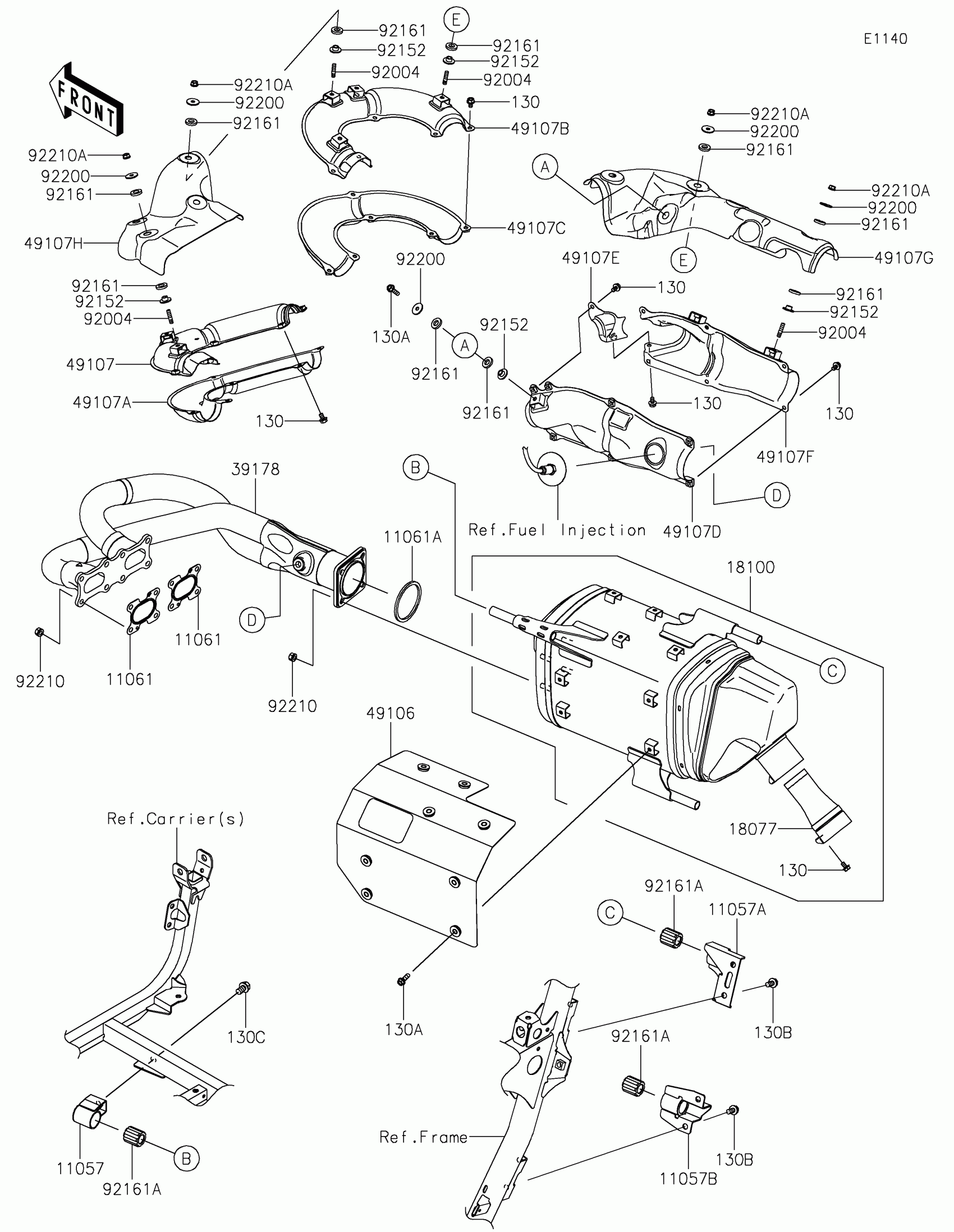

Kawasaki TERYX KRX® 1000 LIFTED EDITION Muffler(s) Diagram

#

Description
Price

11057

BRACKET,FRM-MUFFLER/FR

11057-3721

$22.54

11057A

BRACKET,FRM-MUFFLER/RR/UPP

11057-3722

$26.63

11057B

BRACKET,FRM-MUFFLER/RR/LWR

11057-3723

$24.98

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1310

$8.41

11061A

GASKET,EXHAUST PIPE-MUFFLER

11061-1311

$9.09

18077

ARRESTER-SPARK

18077-0045

$99.61

18100

BODY-ASSY-MUFFLER

18100-0613

$773.35

39178

MANIFOLD-COMP-EXHAUST

39178-0494

$1,168.83

49106

COVER-MUFFLER

49106-0890

$139.35

49107

COVER-EXHAUST PIPE,#1,UPP

49107-0814

$75.16

49107A

COVER-EXHAUST PIPE,#1,LWR

49107-0815

$33.09

49107B

COVER-EXHAUST PIPE,#2,UPP

49107-0816

$104.25

49107C

COVER-EXHAUST PIPE,#2,LWR

49107-0817

$39.85

49107D

COVER-EXHAUST PIPE,LH

49107-0819

$69.30

49107E

COVER-EXHAUST PIPE

49107-0820

$15.44

49107F

COVER-EXHAUST PIPE,RH

49107-0825

$107.62

49107G

COVER-EXHAUST PIPE

49107-0829

$269.42

49107H

COVER-EXHAUST PIPE

49107-0836

$226.22

92004

STUD,6X18

92004-0799

$1.05

92152

COLLAR

92152-0423

$2.98

92161

DAMPER

92161-0319

$2.98

92161A

DAMPER

92161-2274

$3.13

92200

WASHER,6.5X22X1.6

92200-2324

$1.93

92210

NUT,8MM

92210-1242

$1.73

92210A

NUT,6MM

92210-1787

$0.89

130

BOLT-FLANGED,6X10

130BD0610

$2.63

130A

BOLT-FLANGED,6X20

130BD0620

$2.82

130B

BOLT-FLANGED,8X16

130CA0816

$1.77

130C

BOLT-FLANGED,10X16

130CA1016

$2.31
