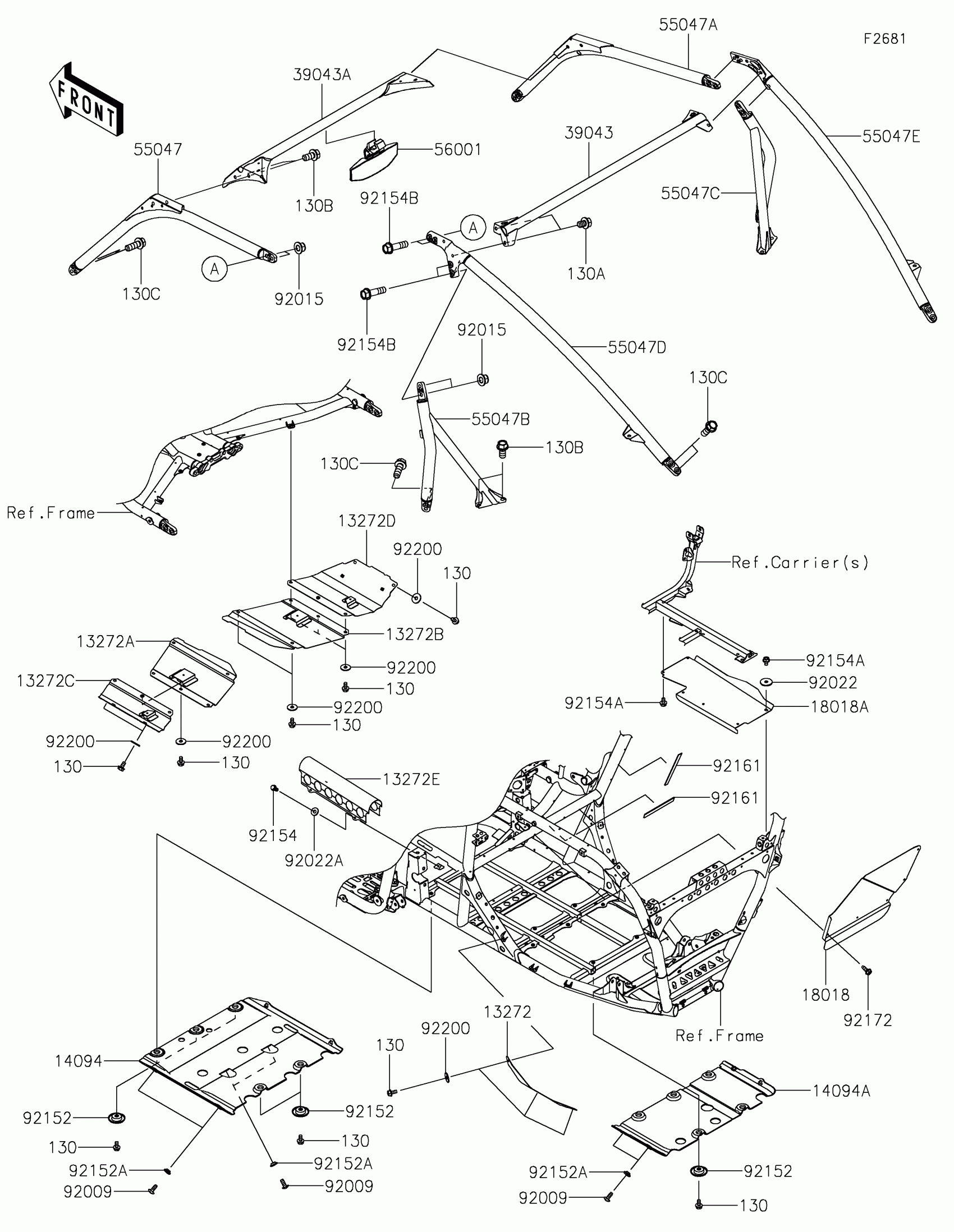

Kawasaki TERYX KRX® 1000 LIFTED EDITION Guards/Cab Frame Diagram

#

Description
Price

13272

PLATE,CVT COVER

13272-3797

$24.49

13272A

PLATE,SKID,FR,CNT,LH

13272-4328

$52.78

13272B

PLATE,SKID,FR,CNT,RH

13272-4329

$52.78

13272C

PLATE,SKID,FR,LH

13272-4330

$23.05

13272D

PLATE,SKID,FR,RH

13272-4331

$23.05

13272E

PLATE,DRIVE SHAFT

13272-7108

$20.08

14094

COVER,SKID,CNT

14094-0040

$44.44

14094A

COVER,SKID,RR

14094-0041

$45.99

18018

PLATE-HEAT GUARD

18018-0616

$34.19

18018A

PLATE-HEAT GUARD

18018-0646

$24.12

39043

CROSSMEMBER-COMP,RR,T.BLACK

39043-0032-388

$161.61

39043A

CROSSMEMBER-COMP,FR,T.BLACK

39043-0033-388

$219.65

55047

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0399-388

$171.97

55047A

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0400-388

$171.97

55047B

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0407-388

$125.42

55047C

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0408-388

$125.42

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0409-388

$196.23

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0410-388

$196.23

56001

MIRROR-ASSY,REARVIEW

56001-0474

$101.20

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,6.5X24X2

92022-1690

$2.99

92022A

WASHER

92022-2247

$0.57

92152

COLLAR

92152-0784

$1.54

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,FLANGED,6X12

92154-2922

$1.66

92154A

BOLT,FLANGED,6X10

92154-4159

$1.39

92154B

BOLT,FLANGED,12X45

92154-7076

$7.22

92161

DAMPER,10X85X1

92161-1964

$2.59

92172

SCREW,TAPPING,6X16

92172-0869

$1.14

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X12

130CA0612

$3.02

130A

BOLT-FLANGED,12X16

130CA1216

$1.95

130B

BOLT-FLANGED,12X25

130CA1225

$5.91

130C

BOLT-FLANGED,12X35

130CA1235

$2.75
