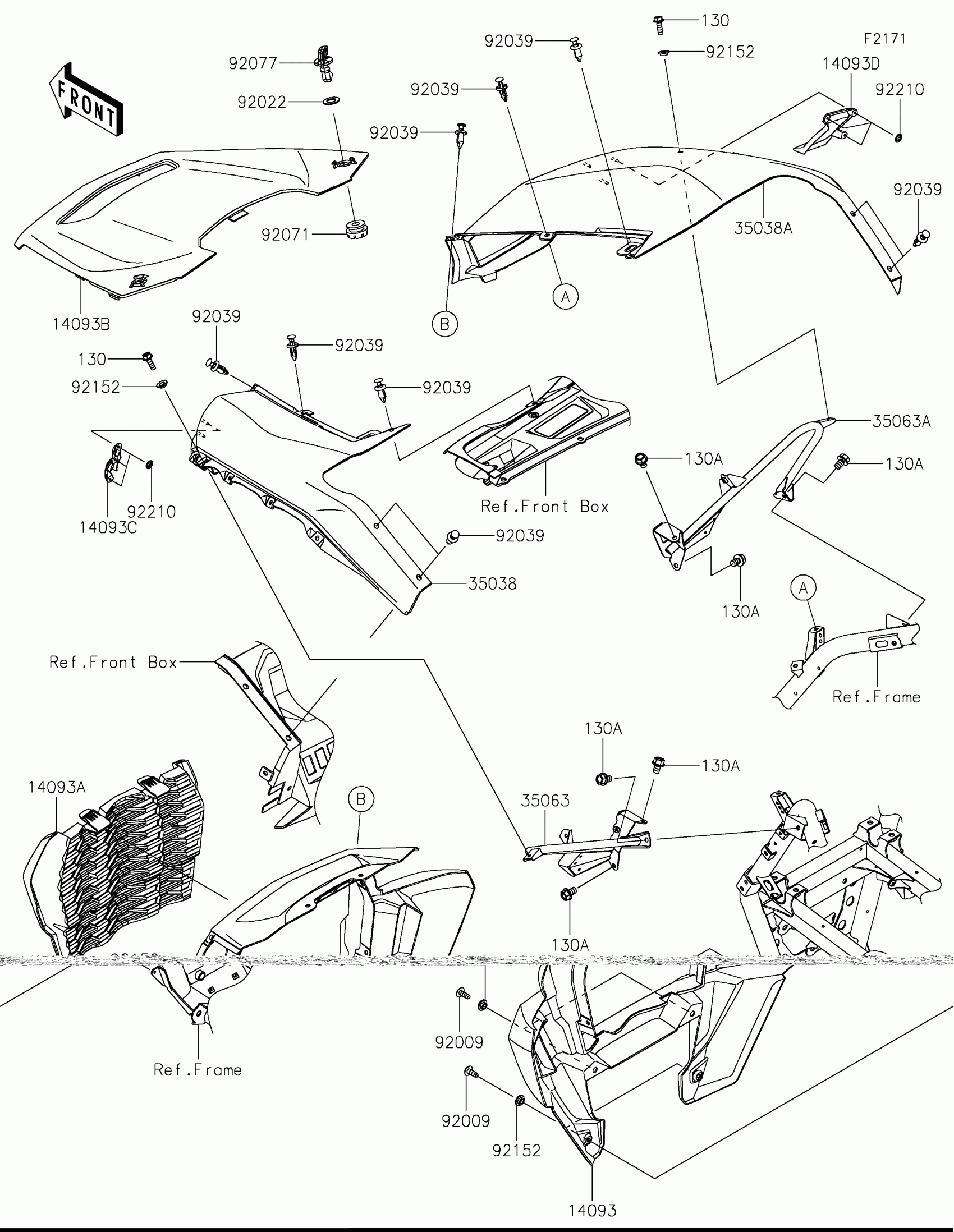

Kawasaki TERYX KRX® 1000 LIFTED EDITION Front Fender(s) Diagram

Description

Price

14093

COVER,FR

14093-0804

$180.06

14093A

COVER,FR GRILL

14093-0810

$89.08

14093B

COVER,HOOD,EBONY

14093-0921-H8

$370.36

14093C

COVER,LH

14093-0958

$3.34

14093D

COVER,RH

14093-0959

$3.34

35038

FENDER-FRONT,LH,EBONY

35038-0017-H8

$333.82

35038A

FENDER-FRONT,RH,EBONY

35038-0018-H8

$333.82

35063

STAY,LH

35063-1629

$94.23

35063A

STAY,RH

35063-1630

$94.23

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0746

$0.92

92077

KNOB

92077-0033

$2.11

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92210

NUT

92210-1796

$0.43

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X12

130BA0812

$0.79
