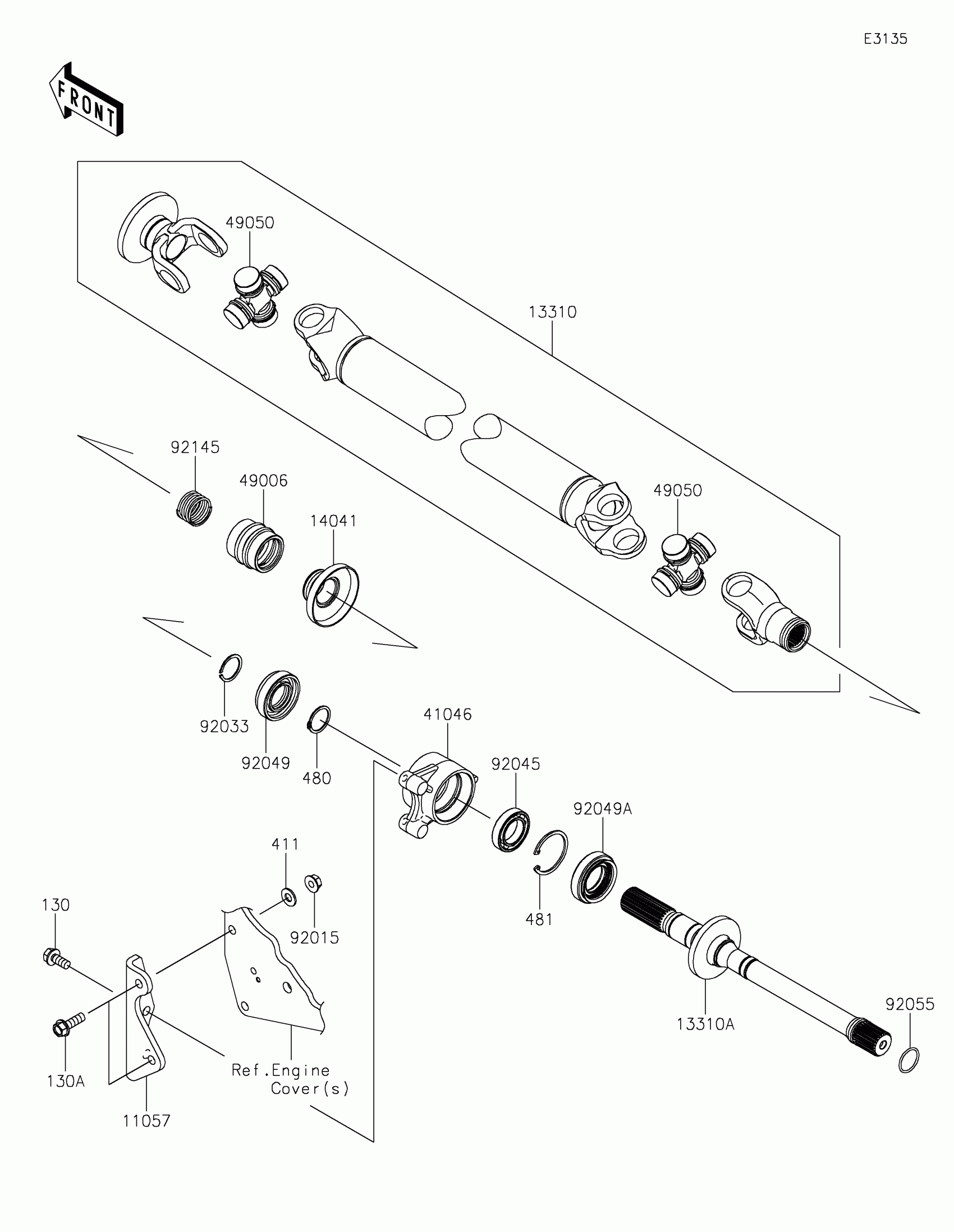

Kawasaki TERYX KRX® 1000 LIFTED EDITION Drive Shaft-Propeller Diagram

Description

Price

11057

BRACKET,BEARING-COMP

11057-2804

$34.90

13310

SHAFT-ASSY,FR GEAR SIDE

13310-0581

$489.78

13310A

SHAFT-ASSY

13310-0582

$76.61

14041

COVER-COMP

14041-0631

$8.15

41046

HOUSING-BEARING

41046-0037

$111.12

49006

BOOT

49006-0646

$2.66

49050

SPIDER

49050-0034

$104.96

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92033

RING-SNAP,25MM

92033-1172

$3.71

92045

BEARING-BALL,#6905

92045-036

$22.57

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$9.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$9.51

92055

RING-O,22.1X1.9

92055-1617

$1.89

92145

SPRING

92145-1838

$3.88

130

BOLT-FLANGED,8X18

130BA0818

$1.81

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

481

CIRCLIP-TYPE-C,42MM

481J4200

$4.64
