2025 Kawasaki Teryx KRX® 1000 Lifted Edition Control Diagram

← All diagrams

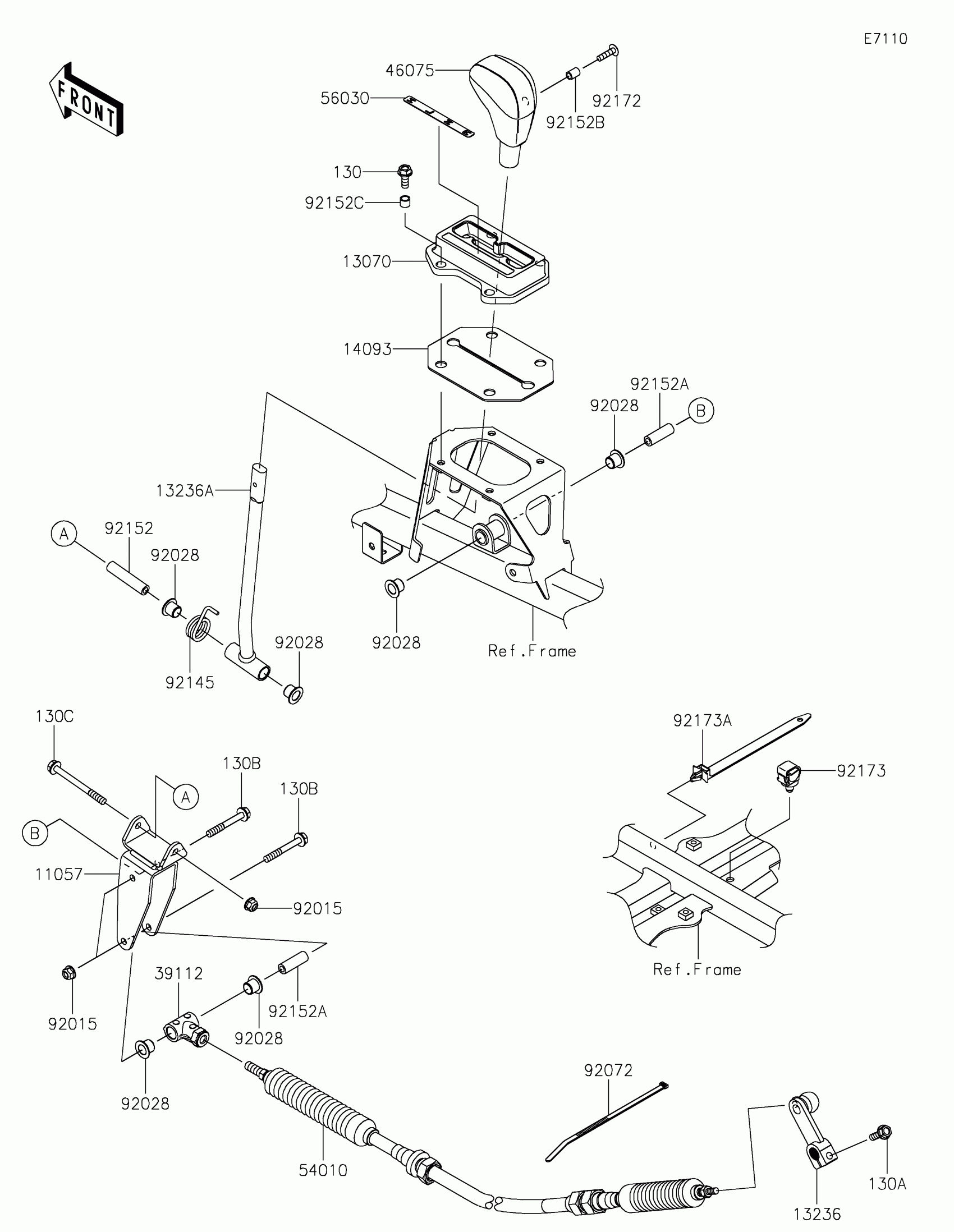

Find the part on the Control diagram for your 2025 Kawasaki Teryx KRX® 1000 Lifted Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Teryx KRX® 1000 Lifted Edition Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LEVER

11057-7665

1

$13.05

In stock

13070

GUIDE

13070-0894

1

$9.02

In stock

13236

1

$46.03

In stock

13236A

LEVER-COMP

13236-0817

1

$45.57

In stock

14093

COVER,HEAT GUARD

14093-1245

1

$2.27

In stock

39112

RODEND-TIE

39112-0036

1

$21.80

In stock

46075

GRIP

46075-0569

1

$21.39

In stock

54010

CABLE

54010-0662

1

$46.38

In stock

56030

LABEL,POSITION

56030-1421

1

$1.54

In stock

92015

1

$3.43

In stock

92028

BUSHING

92028-1507

1

$4.16

In stock

92072

BAND,L=292.1

92072-3509

1
Out of stock

92145

SPRING

92145-1839

1

$4.64

In stock

92152

COLLAR,6.0X10X47

92152-1517

1

$7.32

In stock

92152A

COLLAR,6.0X10X30

92152-1518

1

$5.25

In stock

92152B

COLLAR,5.6X8X10.5

92152-1545

1

$2.19

In stock

92152C

COLLAR,6.8X9.2X8.8

92152-2863

1

$1.49

In stock

92172

SCREW,5X20

92172-2081

1

$0.76

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-1980

1

$2.29

In stock

130

BOLT-FLANGED,6X18

130BB0618

1

$1.54

In stock

130A

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

130B

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

130C

BOLT-FLANGED,6X65

130CA0665

1

$1.49

In stock
