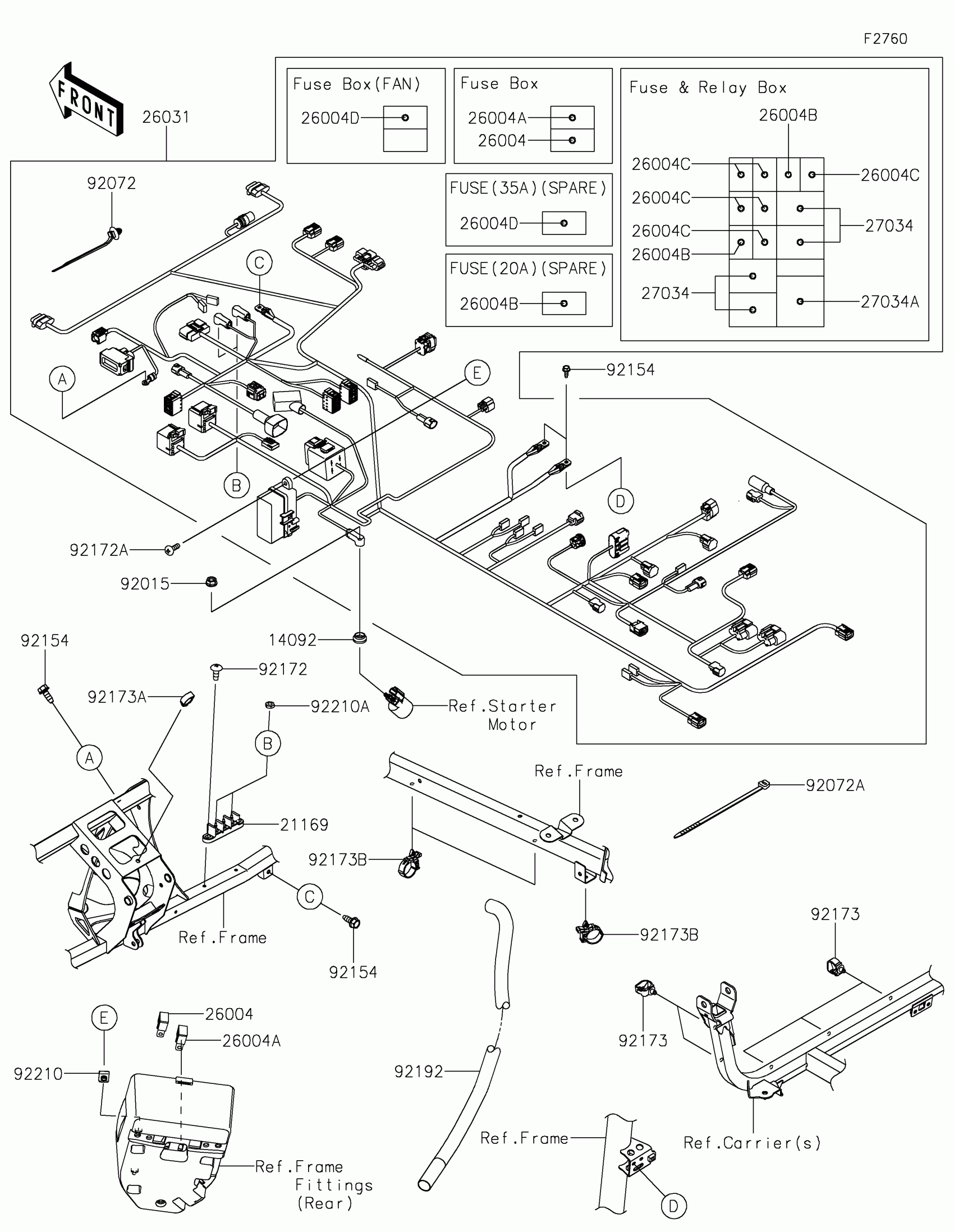

Kawasaki TERYX KRX® 1000 LIFTED EDITION Chassis Electrical Equipment Diagram

Description

Price

14092

COVER,MAGNETIC SW.

14092-0851

$1.93

21169

TERMINAL

21169-0571

$12.95

26004

FUSE-ASSY,SLOW-BLOW,60A

26004-0029

$5.40

26004A

FUSE-ASSY,SLOW-BLOW,70A

26004-0030

$5.40

26004B

FUSE-ASSY,20A

26004-0033

$2.92

26004C

FUSE-ASSY,10A

26004-0034

$2.67

26004D

FUSE-ASSY,35A

26004-0046

$4.88

26031

HARNESS,MAIN

26031-4168

$868.05

27034

RELAY

27034-0013

$20.18

27034A

RELAY

27034-0024

$19.38

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072A

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92172A

SCREW,5X20

92172-2081

$0.73

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173B

CLAMP,CABLE,28MM

92173-1062

$3.72

92192

TUBE,CONVOLUTED,19.5X23.8X1150

92192-1942

$20.06

92210

NUT

92210-0571

$3.52

92210A

NUT

92210-1680

$0.22
