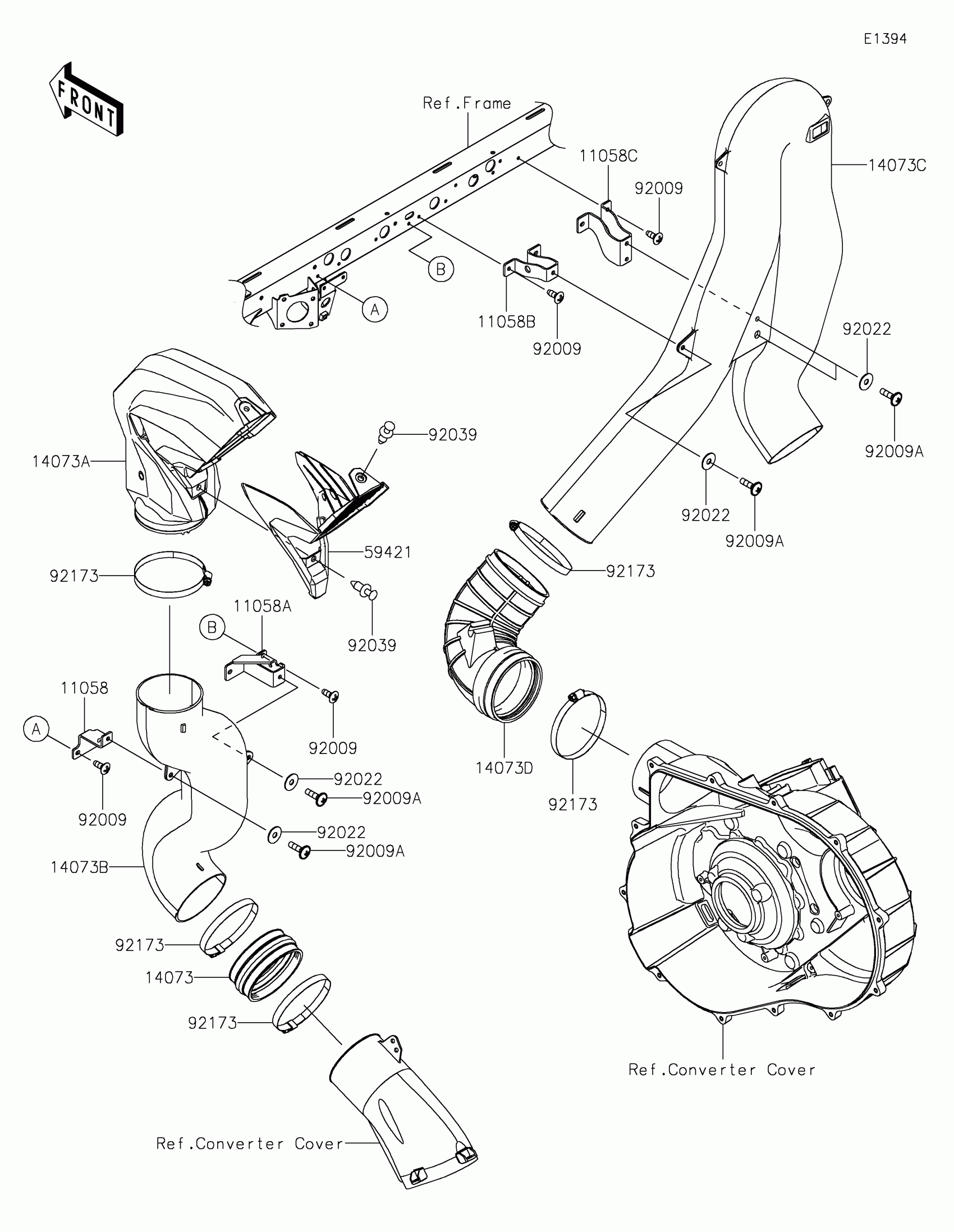

Kawasaki TERYX KRX® 1000 LIFTED EDITION Air Cleaner-Belt Converter Diagram

Description

Price

11058

BRACKET

11058-1375

$20.13

11058A

BRACKET

11058-1376

$23.69

11058B

BRACKET

11058-1377

$21.04

11058C

BRACKET

11058-1378

$17.64

14073

DUCT

14073-0909

$6.65

14073A

DUCT,INTAKE

14073-1934

$276.54

14073B

DUCT,INTAKE-CVT CASE

14073-1940

$60.38

14073C

DUCT,EXHAUST

14073-1941

$85.02

14073D

DUCT,FITTING EXHAUST

14073-1942

$27.99

59421

COVER-INTAKE,L.GREEN

59421-0007-290

$20.17

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22

92009-1441

$4.31

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92039

RIVET

92039-0776

$1.19

92173

CLAMP,130MM

92173-1938

$4.30
