Description

Price

14093

COVER,BREATHER PIPE

14093-0987

$12.16

16087

VALVE-CHECK

16087-0008

$37.65

51004

TANK-FUEL

51004-0031

$436.88

51049

CAP-TANK,FUEL

51049-0718

$64.67

59071

JOINT

59071-3705

$4.91

59071A

JOINT

59071-3717

$3.55

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-2113

$1.03

92039

RIVET

92039-0776

$1.19

92072

BAND

92072-0850

$4.99

92152

COLLAR,6.8X10X18.1

92152-1867

$5.23

92154

BOLT

92154-3957

$2.32

92161

DAMPER,TANK

92161-2178

$1.17

92161A

DAMPER,TANK FRAME PIPE

92161-2179

$1.73

92161B

DAMPER,TANK LH LOWER

92161-2180

$4.09

92161C

DAMPER,TANK LOWER

92161-2253

$10.97

92161D

DAMPER,TANK & SEAT FRAME

92161-2275

$3.41

92161E

DAMPER,TANK & SEAT FRAME

92161-2288

$5.94

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92191

TUBE,5X9X100

92191-1792

$0.64

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192A

TUBE,5X11X870

92192-1948

$11.32

92192B

TUBE,5X11X1020

92192-1994

$11.32

92192C

TUBE,CONVOLUTED,13.2X17.5X160

92192-2294

$11.32

92192D

TUBE,5X11X1380

92192-2351

$14.90

130

BOLT-FLANGED,6X30

130BA0630

$1.46

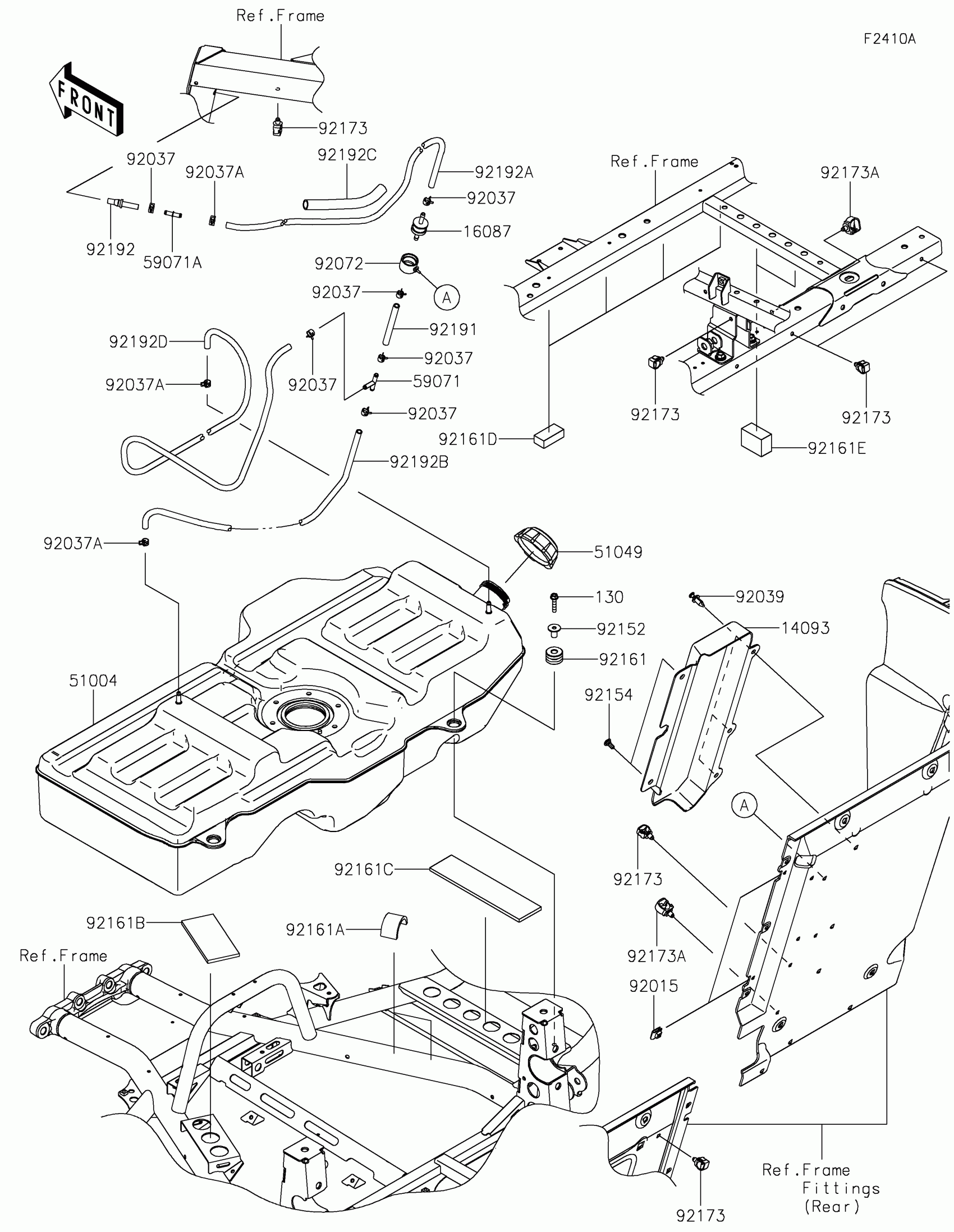

Kawasaki TERYX KRX® 1000 Fuel Tank(CN,US) Diagram

COVER,BREATHER PIPE

VALVE-CHECK

TANK-FUEL

CAP-TANK,FUEL

JOINT

JOINT

NUT,CLAMP,6MM

CLAMP,TUBE

CLAMP

RIVET

BAND

COLLAR,6.8X10X18.1

BOLT

DAMPER,TANK

DAMPER,TANK FRAME PIPE

DAMPER,TANK LH LOWER

DAMPER,TANK LOWER

DAMPER,TANK & SEAT FRAME

DAMPER,TANK & SEAT FRAME

CLAMP,12MM DIA.

CLAMP

TUBE,5X9X100

TUBE,FRAME PIPE-CHECK VALVE

TUBE,5X11X870

TUBE,5X11X1020

TUBE,CONVOLUTED,13.2X17.5X160

TUBE,5X11X1380

BOLT-FLANGED,6X30
