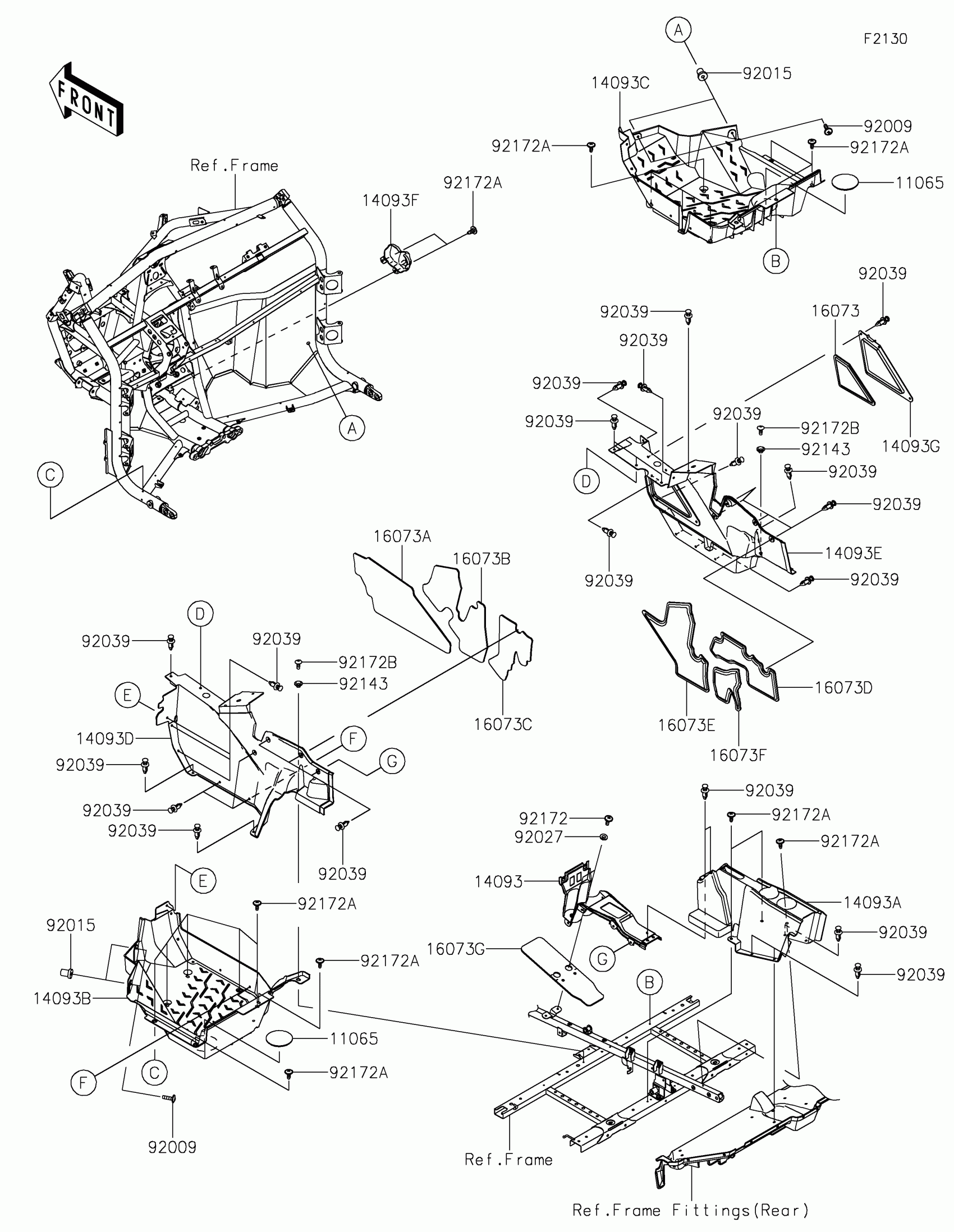

Kawasaki TERYX KRX® 1000 Frame Fittings(Front) Diagram

Description

Price

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

14093

COVER,CENTER CONSOLE,FR

14093-0833

$76.40

14093A

COVER,CENTER CONSOLE,RR

14093-0834

$33.86

14093B

COVER,FLOOR,LH

14093-0835

$136.18

14093C

COVER,FLOOR,RH

14093-0836

$136.18

14093D

COVER,FLOOR,CNT,LH

14093-0837

$47.15

14093E

COVER,FLOOR,CNT,RH

14093-0838

$43.93

14093F

COVER,FR GEAR,SIDE

14093-0839

$3.79

14093G

COVER,MAINTENANCE

14093-0850

$7.91

16073

INSULATOR

16073-0891

$18.55

16073A

INSULATOR

16073-0893

$107.51

16073B

INSULATOR

16073-0894

$65.78

16073C

INSULATOR

16073-0895

$36.05

16073D

INSULATOR

16073-0897

$38.24

16073E

INSULATOR

16073-0898

$60.62

16073F

INSULATOR

16073-0899

$20.39

16073G

INSULATOR

16073-0902

$50.16

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET

92039-0776

$1.19

92143

COLLAR

92143-1057

$5.00

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85
