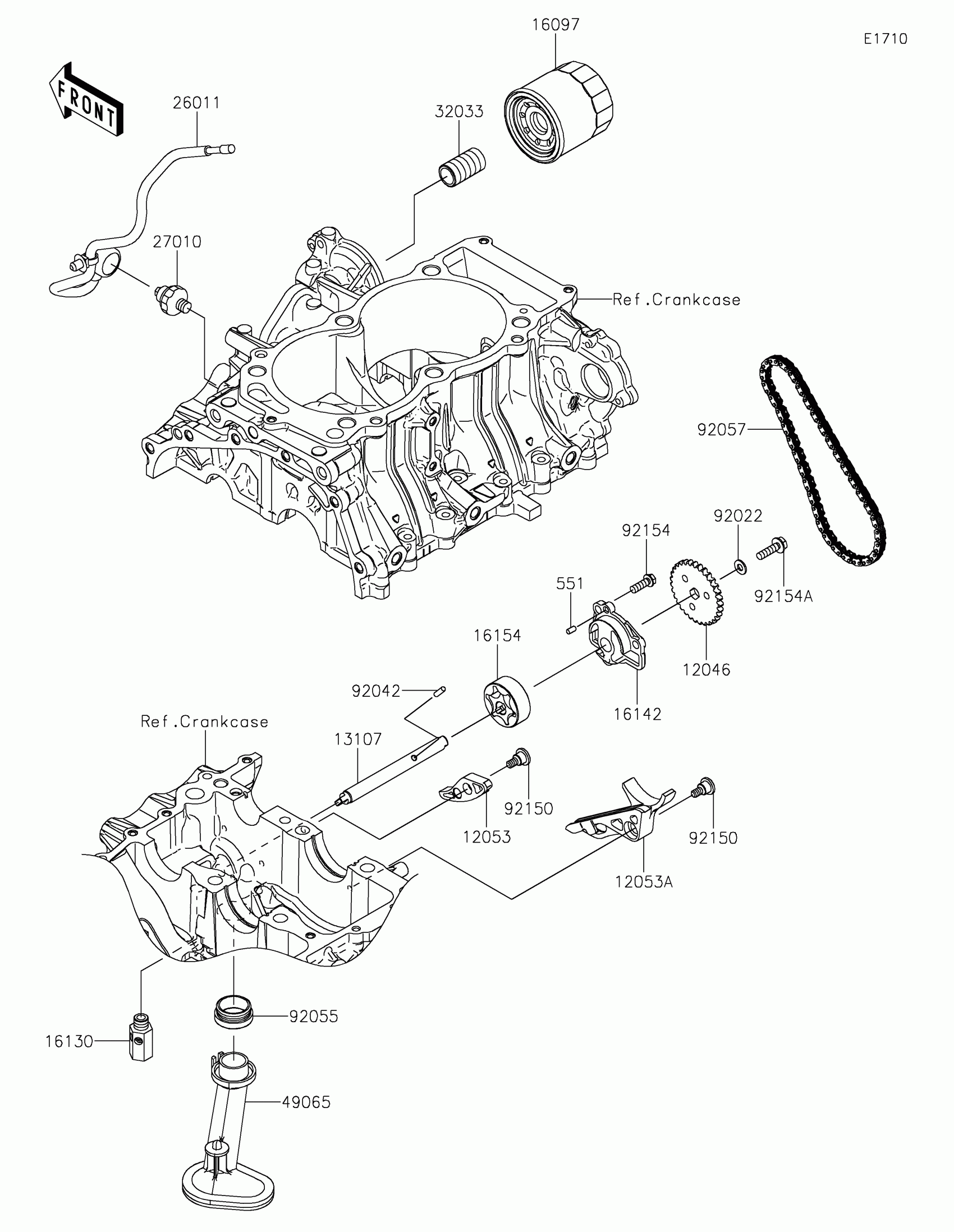

Kawasaki TERYX KRX® 1000 eS Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,31T

12046-0614

$14.36

12053

GUIDE-CHAIN,UPP

12053-0276

$13.11

12053A

GUIDE-CHAIN,LWR

12053-0296

$17.54

13107

SHAFT,OIL PUMP

13107-0896

$26.31

16097

FILTER-ASSY-OIL

16097-0007

$12.25

16130

VALVE-ASSY-RELIEF

16130-1058

$38.20

16142

COVER-PUMP

16142-0754

$23.27

16154

ROTOR-PUMP

16154-0750

$49.20

26011

WIRE-LEAD

26011-1985

$32.96

27010

SWITCH,OIL PRESSURE

27010-1313

$36.57

32033

PIPE,OIL FILTER

32033-1535

$10.27

49065

FILTER-OIL

49065-0050

$36.16

92022

WASHER,6X12.8X1.2

92022-1827

$3.72

92042

PIN,DOWEL,4X13.8

92042-030

$3.12

92055

RING-O,OIL FILTER

92055-1503

$7.55

92057

CHAIN,98XRH2010-70M

92057-0765

$35.32

92150

BOLT,6MM

92150-1090

$5.93

92154

BOLT,FLANGED,6X18

92154-0499

$1.44

92154A

BOLT,FLANGED,6X22

92154-1525

$1.47

551

PIN-DOWEL,4X8

551A0408

$0.80
