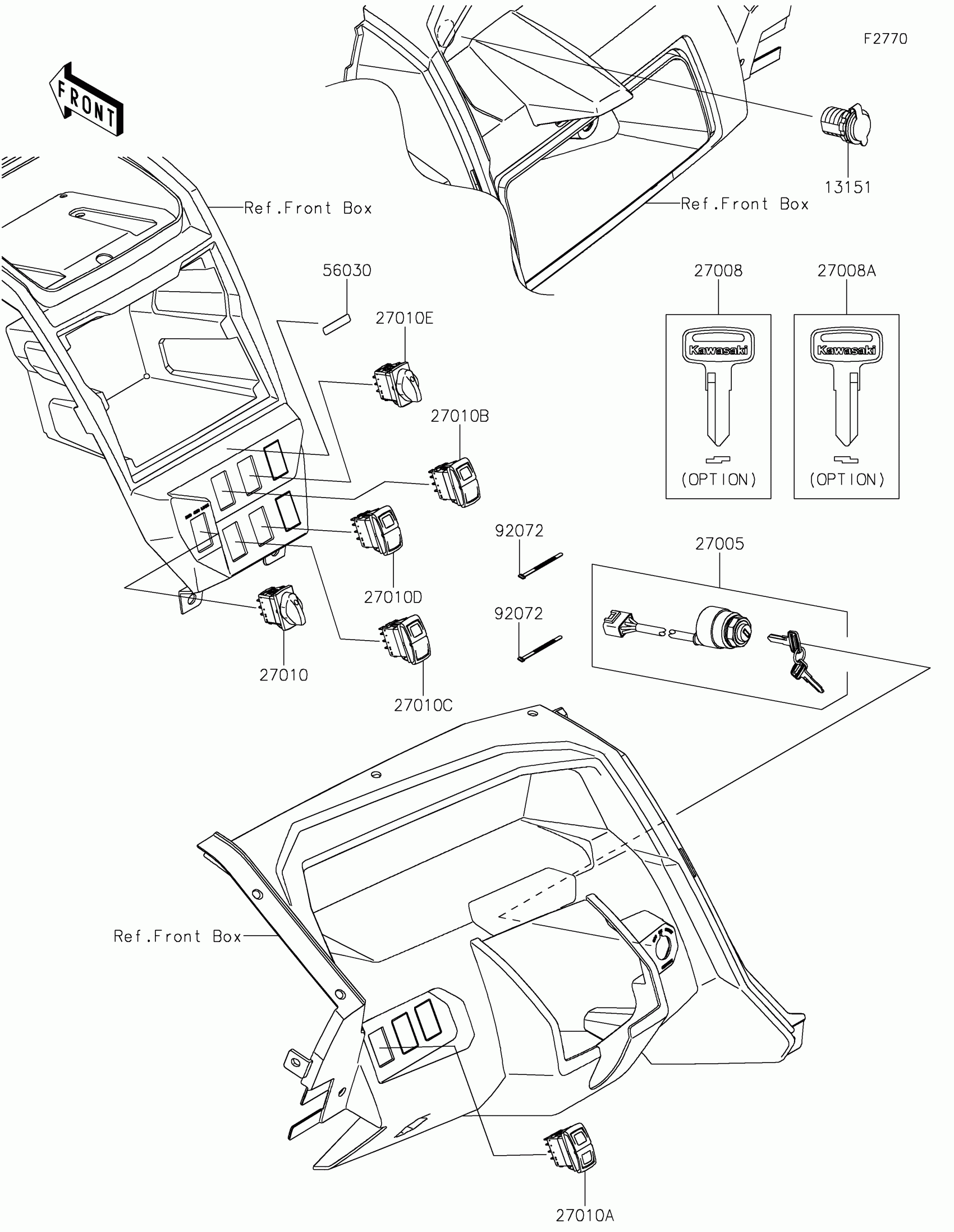

Kawasaki Teryx KRX® 1000 eS Ignition Switch Diagram

Description

Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$12.14

27005

SWITCH-ASSY-IGNITION

27005-0643

$88.03

27008

KEY-LOCK,BLANK

27008-1153

$17.98

27008A

KEY-LOCK,BLANK

27008-1157

$17.98

27010

SWITCH,2WD/4WD

27010-0902

$28.05

27010A

SWITCH,HEAD LIGHT

27010-0903

$78.80

27010B

SWITCH,POWER MODE

27010-0904

$84.56

27010C

SWITCH,UP/DOWN

27010-0954

$55.37

27010D

SWITCH,SELECT/RETURN

27010-0955

$55.37

27010E

SWITCH,KECS MODE

27010-0972

$34.70

56030

LABEL,KECS MODE

56030-1706

$7.00

92072

BAND,L=123

92072-030

$5.00
