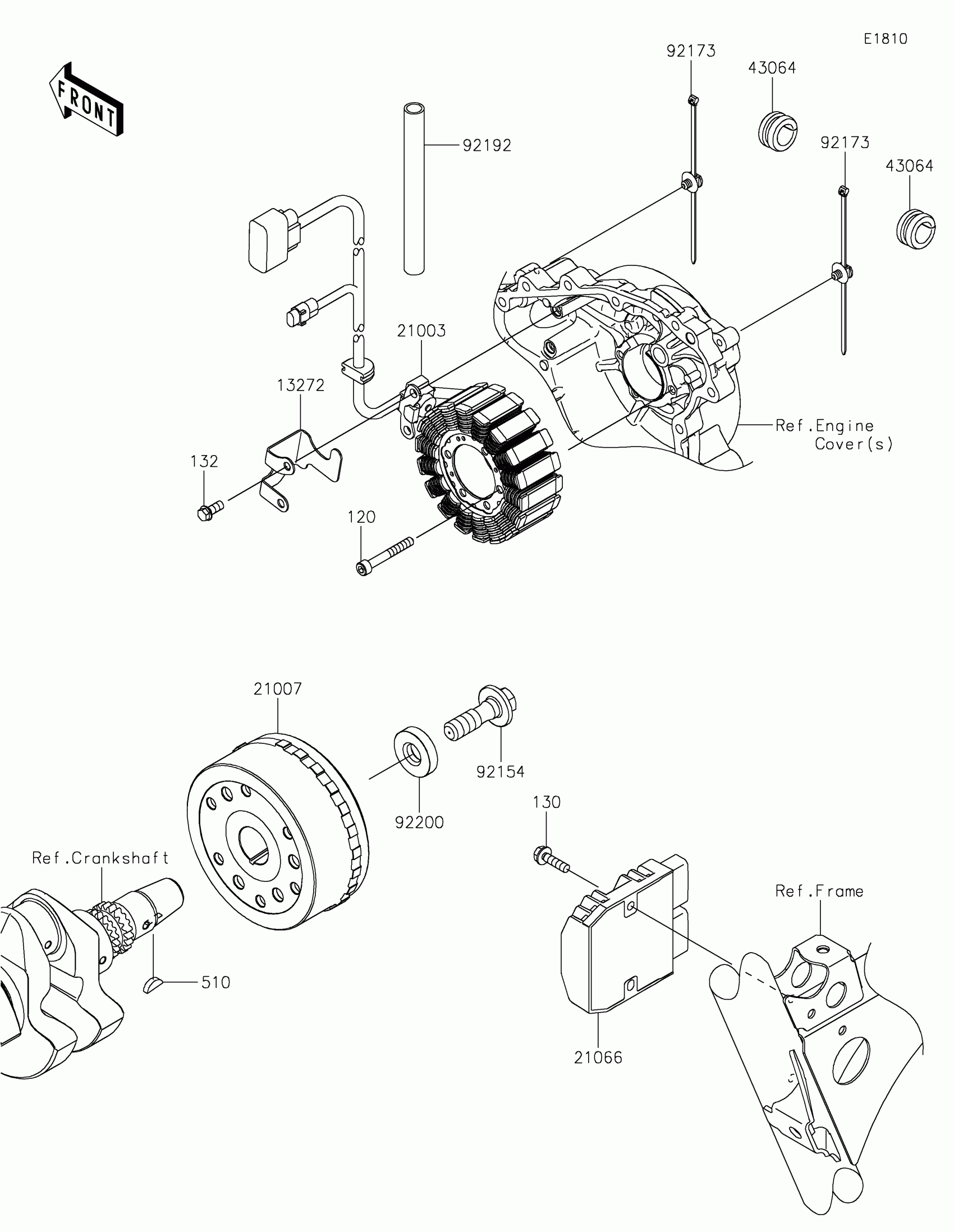

Kawasaki Teryx KRX® 1000 eS Generator Diagram

Description

Price

13272

PLATE,LEAD WIRE

13272-2627

$3.26

21003

STATOR

21003-0196

$934.42

21007

ROTOR

21007-0685

$626.59

21066

REGULATOR-VOLTAGE

21066-0771

$339.14

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

92154

BOLT,FLANGED,14X45

92154-3915

$16.95

92173

CLAMP

92173-2259

$0.64

92192

TUBE,CONVOLUTED,10.7X14.1X140

92192-2521

$9.37

92200

WASHER,14X36X8

92200-2240

$8.03

120

BOLT-SOCKET,6X45

120CA0645

$2.06

130

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

510

KEY-WOODRUFF

510A4200

$2.96
