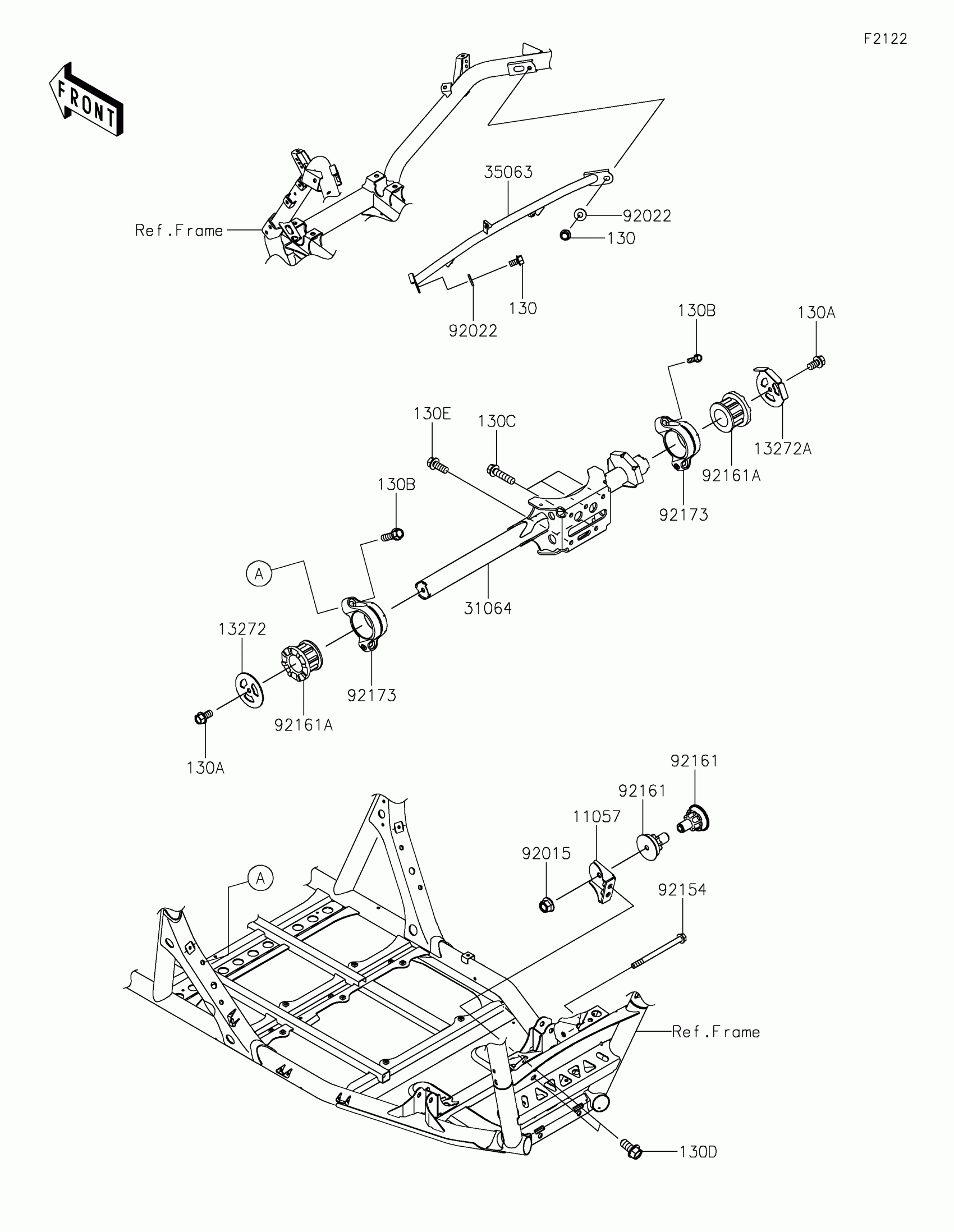

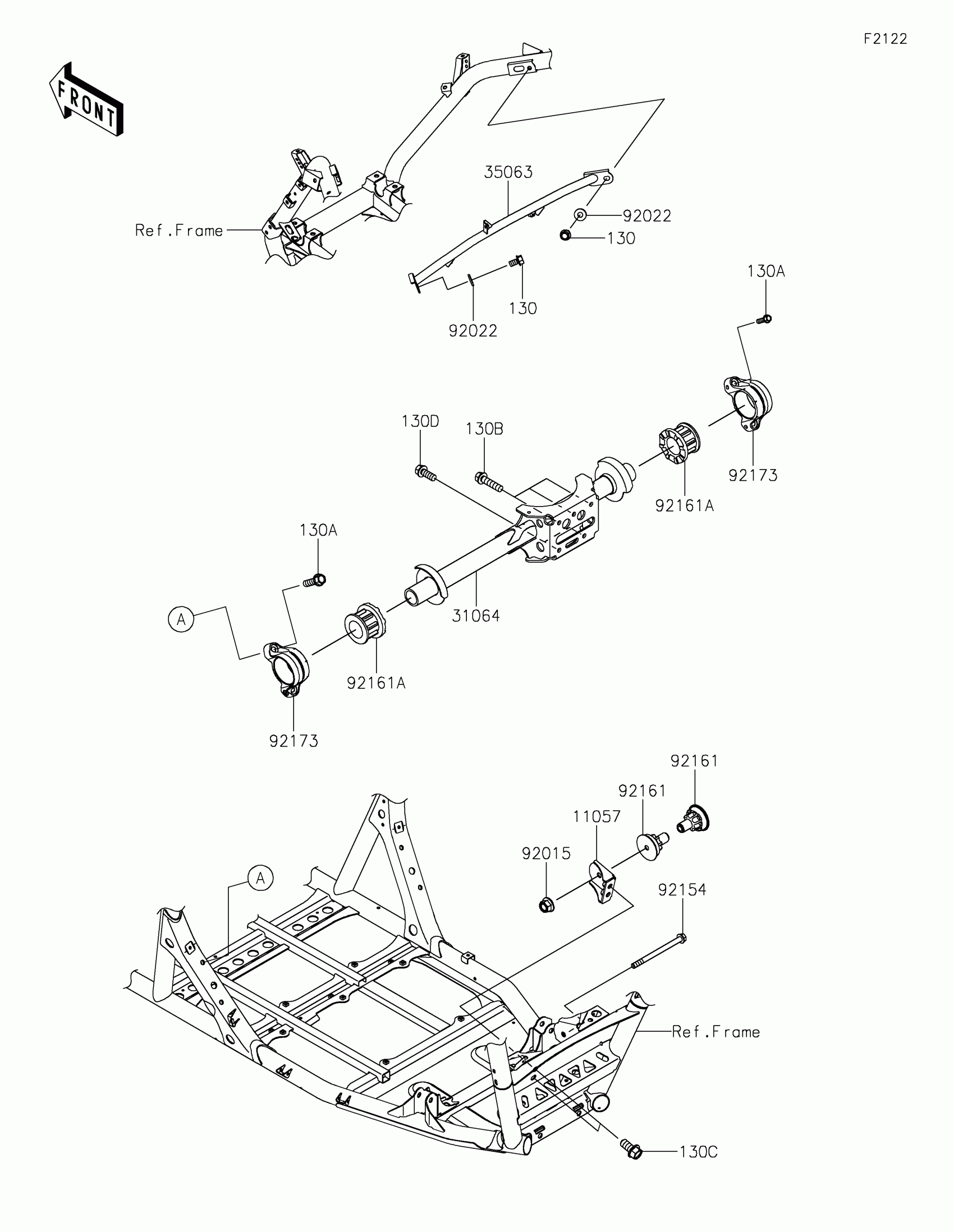

Kawasaki Teryx KRX® 1000 eS Engine Mount Diagram

Description

Price

11057

BRACKET,RR

11057-2103

$10.54

31064

PIPE-COMP,FR

31064-0732

$266.13

35063

STAY,UPP

35063-1466

$25.43

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,8.2X19X2

92022-1533

$5.52

92154

BOLT,FLANGED,12X160

92154-3916

$19.50

92161

DAMPER

92161-2171

$38.97

92161A

DAMPER

92161-2205

$25.19

92173

CLAMP

92173-2399

$57.45

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,10X35

130CA1035

$6.75

130B

BOLT-FLANGED,10X40

130CA1040

$2.83

130C

BOLT-FLANGED,12X25

130CA1225

$7.74

130D

BOLT-FLANGED,10X25

130CB1025

$2.80
