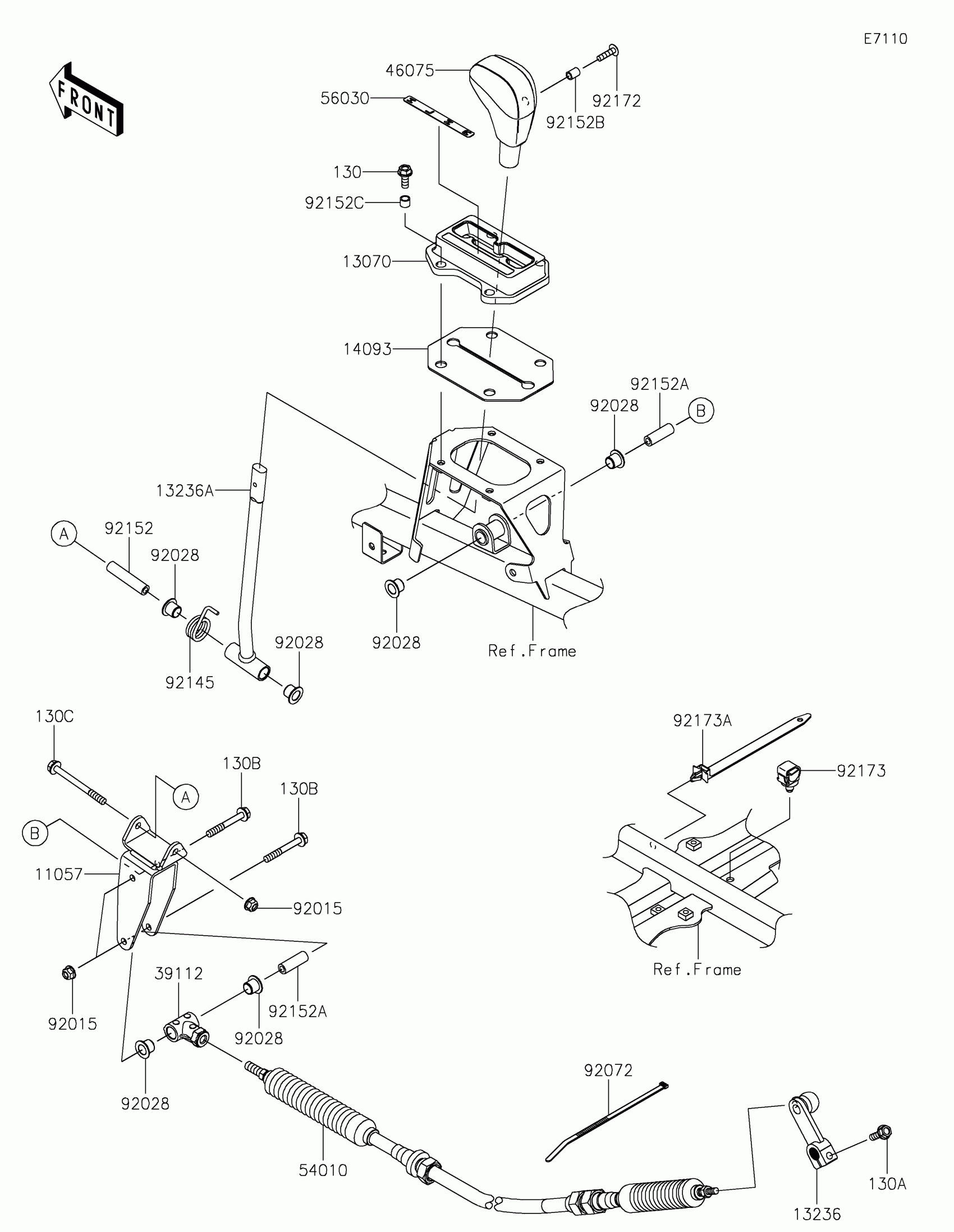

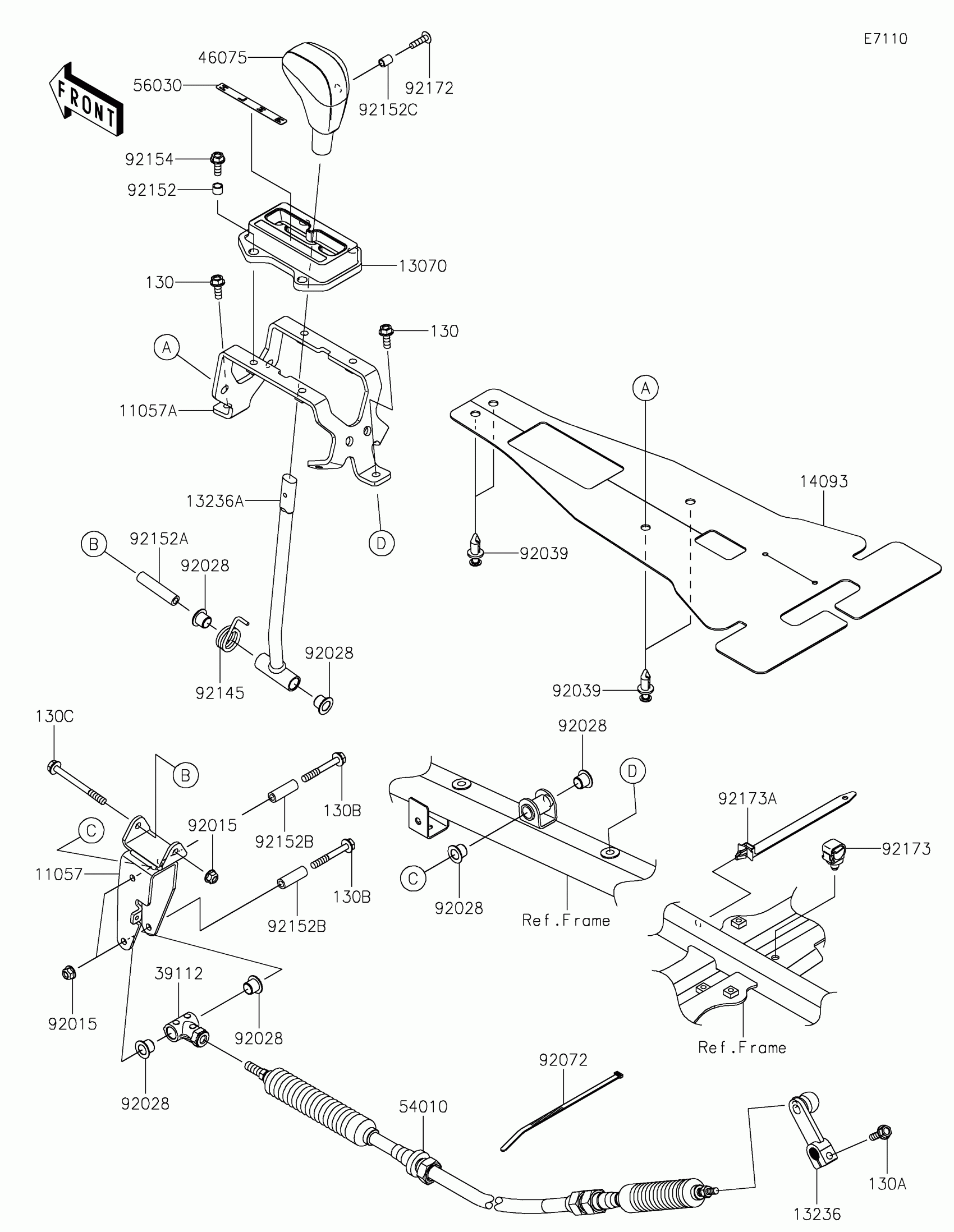

Kawasaki Teryx KRX® 1000 eS Control Diagram
#
Description
Price
11057
BRACKET,LEVER
11057-7665
$16.52
13070
GUIDE
13070-0894
$9.32
13236
LEVER-COMP,CHANGE LEVER
13236-0708
$45.16
13236A
LEVER-COMP
13236-0817
$44.76
14093
COVER,HEAT GUARD
14093-1245
$2.80
39112
RODEND-TIE
39112-0036
$23.30
46075
GRIP
46075-0569
$22.85
54010
CABLE
54010-0629
$116.24
56030
LABEL,POSITION
56030-1421
$1.81
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92028
BUSHING
92028-1507
$5.25
92072
BAND,L=292.1
92072-3509
Unavailable
92145
SPRING
92145-1839
$5.27
92152
COLLAR,6.0X10X47
92152-1517
$7.43
92152A
COLLAR,6.0X10X30
92152-1518
$6.63
92152B
COLLAR,5.6X8X10.5
92152-1545
$2.67
92152C
COLLAR,6.8X9.2X8.8
92152-2863
$1.72
92172
SCREW,5X20
92172-2081
$0.73
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-1980
$2.80
130
BOLT-FLANGED,6X18
130BB0618
$1.81
130A
BOLT-FLANGED,6X20
130CA0620
$1.70
130B
BOLT-FLANGED,6X45
130CA0645
$1.47
130C
BOLT-FLANGED,6X65
130CA0665
$1.77
