Description

Price

13101

GEAR-ASSY,DRIVE

13101-0689

$520.53

13101A

GEAR-ASSY,DRIVEN

13101-0690

$639.04

13310

SHAFT-ASSY

13310-0044

$44.74

43058

RING

43058-0018

$2.58

59057

GEAR-HELICAL

59057-0034

$144.14

92049

SEAL-OIL

92049-0160

$12.92

92151

BOLT,8X30

92151-1908

$2.80

92180

SHIM,DRIVE,T=0.15

92180-1543

Unavailable

92180A

SHIM,DRIVE,T=0.20

92180-1544

Unavailable

92180B

SHIM,DRIVE,T=0.50

92180-1545

Unavailable

92180C

SHIM,DRIVE,T=0.80

92180-1546

Unavailable

92180D

SHIM,DRIVE,T=1.00

92180-1547

Unavailable

92180E

SHIM,DRIVE,T=1.20

92180-1548

Unavailable

92180F

SHIM,DRIVEN,T=0.15

92180-1549

Unavailable

92180G

SHIM,DRIVEN,T=0.20

92180-1550

Unavailable

92180H

SHIM,DRIVEN,T=0.50

92180-1551

Unavailable

92180I

SHIM,DRIVEN,T=0.80

92180-1552

Unavailable

92180J

SHIM,DRIVEN,T=1.00

92180-1553

Unavailable

92180K

SHIM,DRIVEN,T=1.20

92180-1554

Unavailable

92210

NUT

92210-1790

$37.01

130

BOLT-FLANGED,8X30

130BA0830

$1.98

671

O RING

671D2585

$7.98

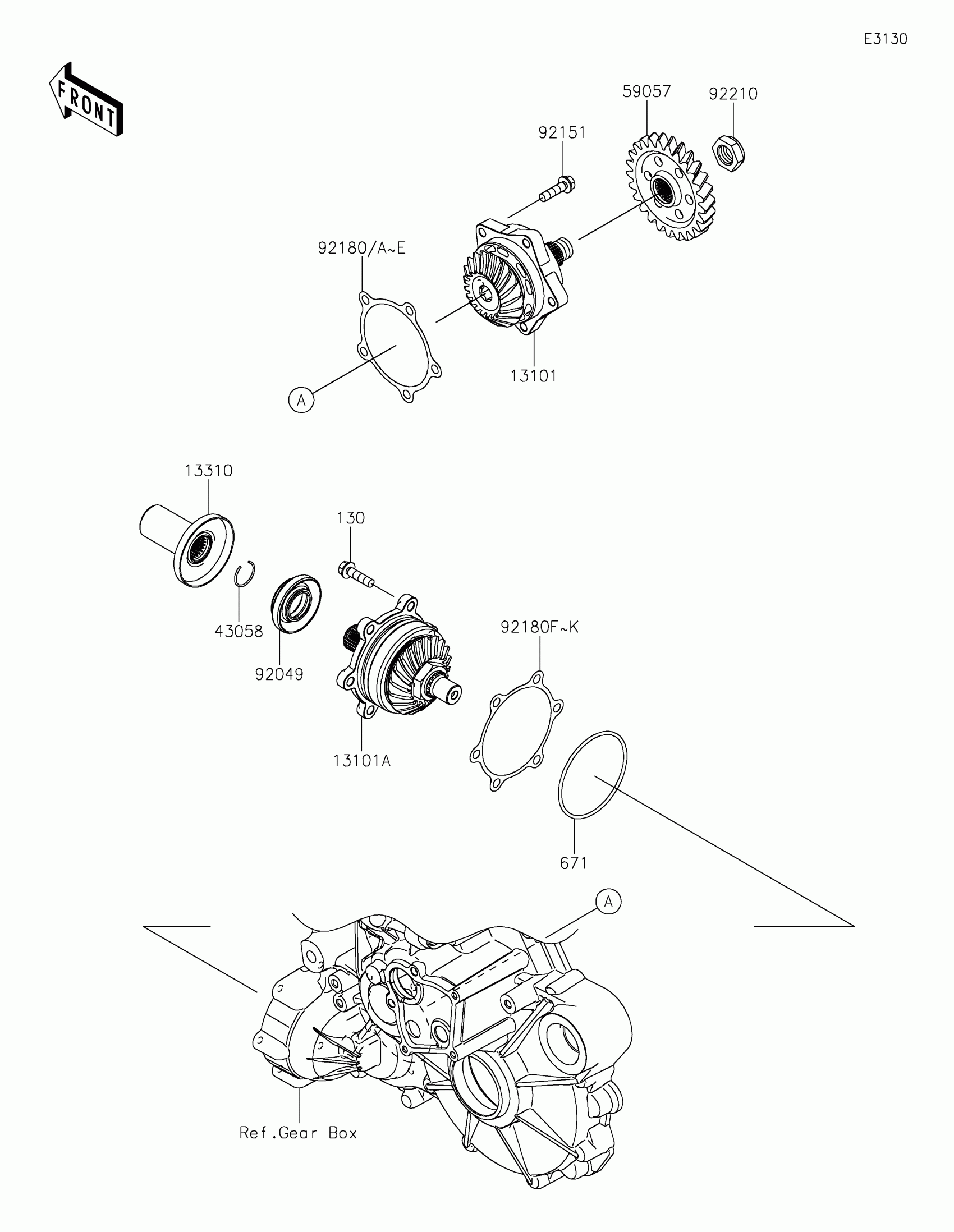

Kawasaki Teryx KRX® 1000 Bevel Gear Diagram

GEAR-ASSY,DRIVE

GEAR-ASSY,DRIVEN

SHAFT-ASSY

RING

GEAR-HELICAL

SEAL-OIL

BOLT,8X30

SHIM,DRIVE,T=0.15

SHIM,DRIVE,T=0.20

SHIM,DRIVE,T=0.50

SHIM,DRIVE,T=0.80

SHIM,DRIVE,T=1.00

SHIM,DRIVE,T=1.20

SHIM,DRIVEN,T=0.15

SHIM,DRIVEN,T=0.20

SHIM,DRIVEN,T=0.50

SHIM,DRIVEN,T=0.80

SHIM,DRIVEN,T=1.00

SHIM,DRIVEN,T=1.20

NUT

BOLT-FLANGED,8X30

O RING
