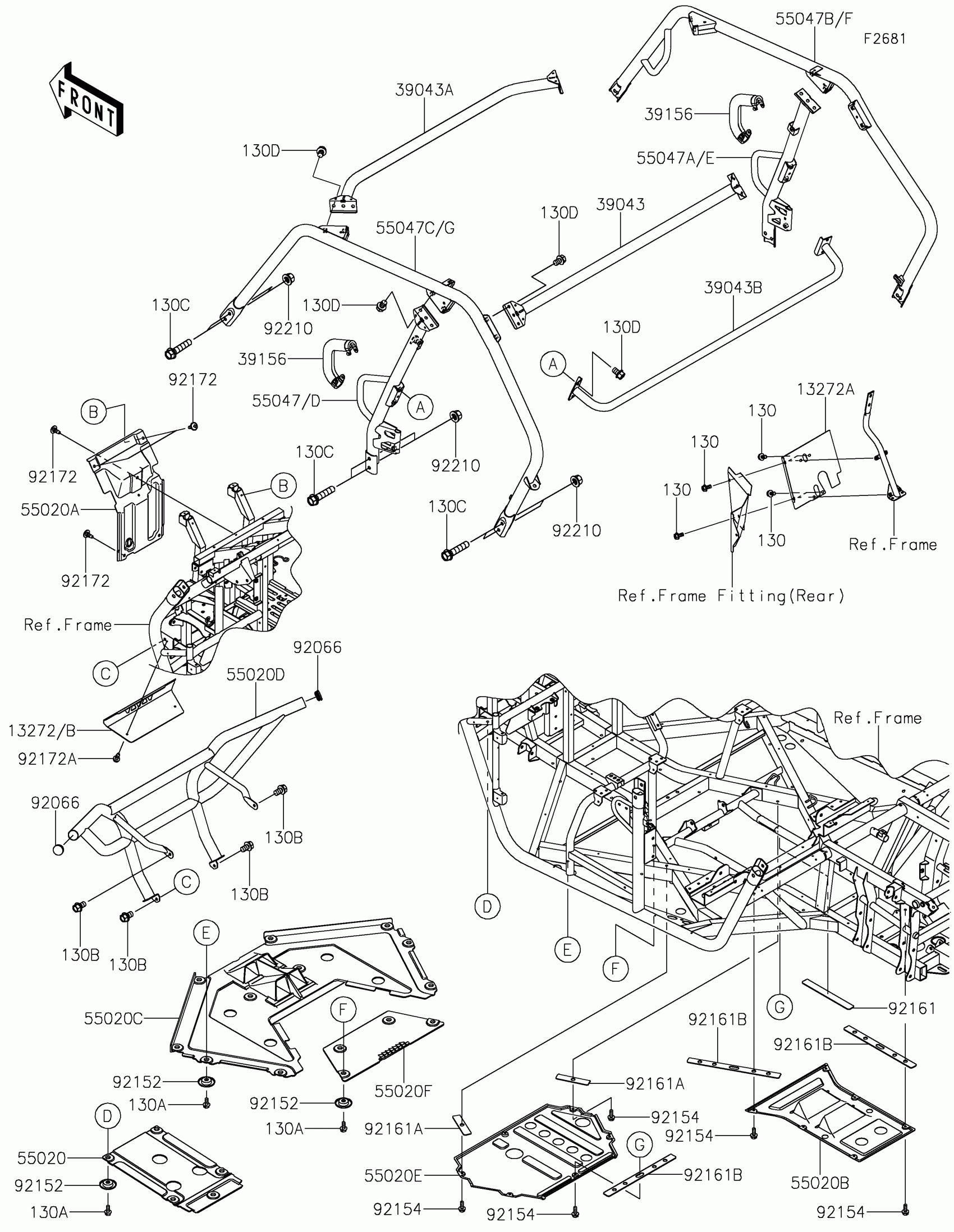

Kawasaki Teryx® Guards/Cab Frame Diagram
#
Description
Price
13272
PLATE
13272-2064
$13.22
13272A
PLATE,FRONT,T.BLACK
13272-2232-388
$34.36
39043
CROSSMEMBER-COMP,UPP,RR,T.BLK
39043-0009-388
$110.29
39043A
CROSSMEMBER-COMP,UPP,FR,T.BLK
39043-0010-388
$110.29
39043B
CROSSMEMBER-COMP,T.BLACK
39043-0015-388
$145.03
39156
PAD,SHOULDER
39156-0939
$20.04
55020
GUARD,SKID,FR
55020-0723
$34.28
55020A
GUARD,FR FRAME
55020-0741
$30.31
55020B
GUARD,SKID,RR
55020-0812
$59.85
55020C
GUARD,SKID,FR MIDDLE
55020-0890
$131.59
55020D
GUARD,FRONT,T.BLACK
55020-1859-388
$253.43
55020E
GUARD,SKID,CNT
55020-1884
$114.43
55020F
GUARD
55020-1951
$28.81
55047
BAR-COMP,B-PILLAR,LH,T.BLACK
55047-0359-388
$85.17
55047A
BAR-COMP,B-PILLAR,RH,T.BLACK
55047-0360-388
$85.17
55047B
BAR-COMP,A-PILLAR,RH,T.BLACK
55047-0372-388
$219.76
55047C
BAR-COMP,A/C-PILLAR,LH,T.BLACK
55047-0373-388
$219.76
92066
PLUG,42MM
92066-0830
$1.81
92152
COLLAR
92152-0784
$2.12
92154
BOLT,FLANGED,6X16
92154-0887
$1.63
92161
DAMPER,32X270X3
92161-1597
$5.28
92161A
DAMPER,32X140X3
92161-1598
$3.55
92161B
DAMPER,32X390X3
92161-2429
$5.47
92172
SCREW,6X16
92172-0826
$2.26
92172A
SCREW,TAPPING,6X16
92172-1388
$1.49
92210
NUT,12MM
92210-0603
$8.98
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,10X16
130BA1016
$4.76
130C
BOLT-FLANGED,12X55
130BA1255
$7.82
130D
BOLT-FLANGED,10X14
130CA1014
$3.35
