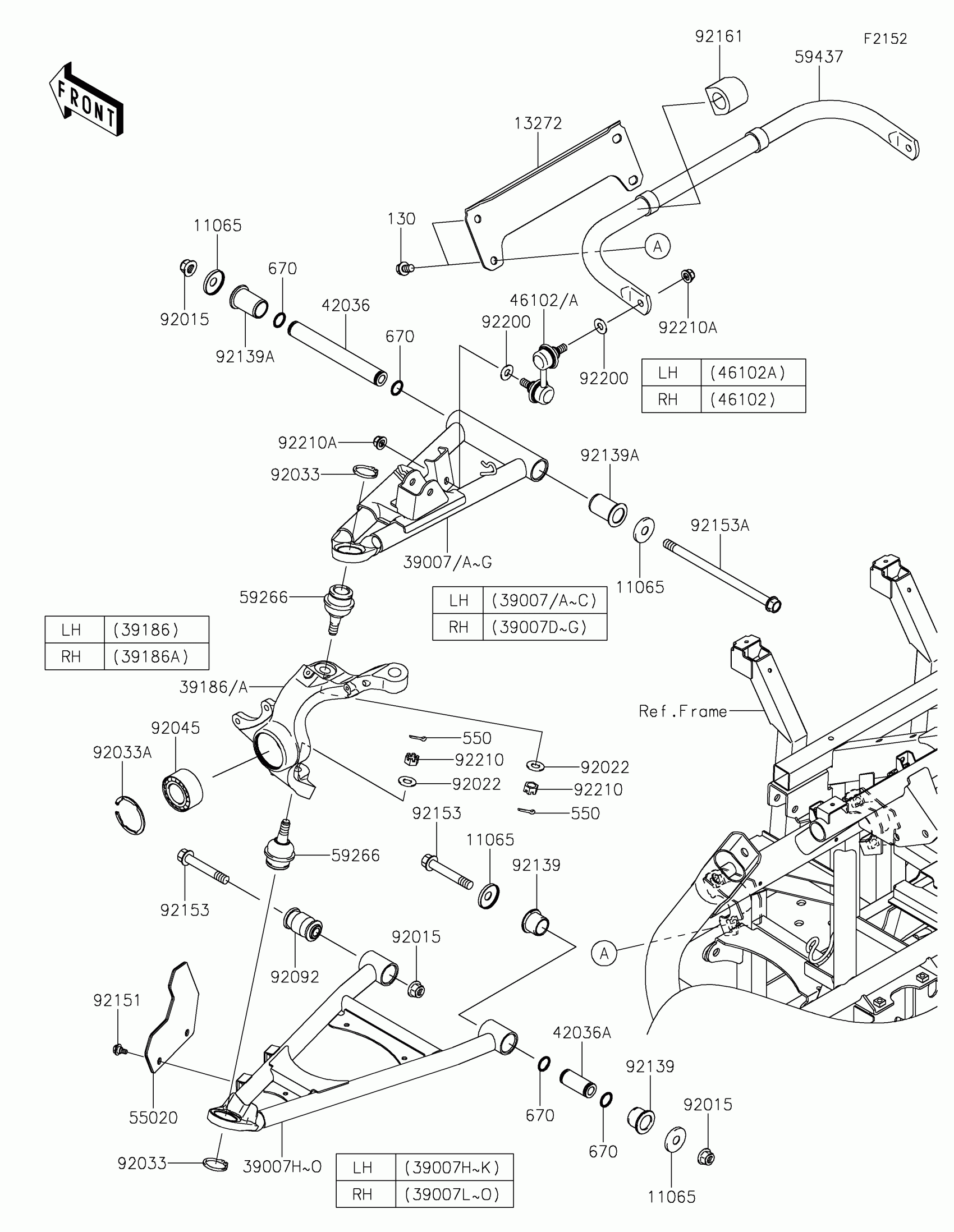

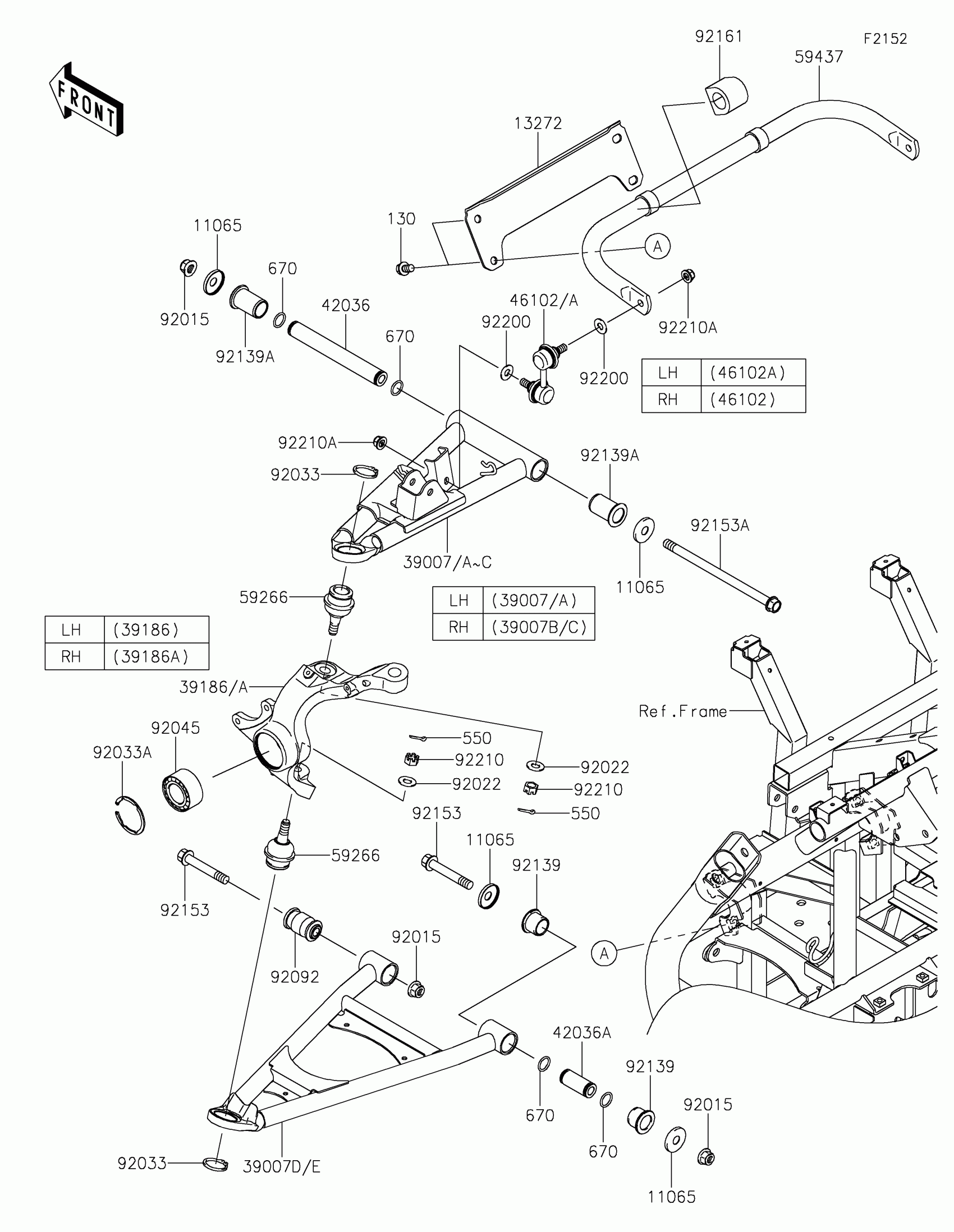

Kawasaki Teryx® Front Suspension Diagram
#
Description
Price
11065
CAP
11065-0253
$3.87
13272
PLATE
13272-1650
$48.88
39007A
ARM-SUSP,FR,UPP,LH,P.C.P.BLUE
39007-0455-57M
$144.62
39007C
ARM-SUSP,FR,UPP,RH,P.C.P.BLUE
39007-0456-57M
$144.62
39007E
ARM-SUSP,FR,LWR,P.C.P.BLUE
39007-0461-57M
$128.89
39186
KNUCKLE,FR,LH
39186-0311
$190.27
39186A
KNUCKLE,FR,RH
39186-0312
$190.27
42036
SLEEVE
42036-0061
$46.79
42036A
SLEEVE
42036-0062
$23.84
46102
ROD,STABILIZER,LH
46102-0100
$48.58
46102A
ROD,STABILIZER,RH
46102-0101
$48.58
59266
JOINT-BALL
59266-0711
$96.44
59437
STABILIZER,FR
59437-0010
$112.69
92015
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92022
WASHER
92022-1831
$5.52
92033
RING-SNAP,C-TYPE,32MM
92033-1262
$6.41
92033A
RING-SNAP,55MM
92033-1274
$9.43
92045
BEARING-BALL,30X55X32
92045-0800
$34.89
92092
BUSHING-RUBBER
92092-0555
$19.13
92139
BUSHING
92139-0231
$7.69
92139A
BUSHING,22.4X28.2X46
92139-0806
$8.22
92153
BOLT,FLANGED,12X76.5
92153-1733
$7.75
92153A
BOLT,FLANGED,12X213
92153-1958
$20.37
92161
DAMPER
92161-1508
$5.10
92200
WASHER,10.3X23X1.6
92200-2009
$1.35
92210
NUT,CASTLE,12MM
92210-0395
$3.86
92210A
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
130
BOLT-FLANGED,10X16
130CA1016
$3.35
550
PIN-COTTER,3.0X25
550AA3025
$0.62
670
O RING,18MM
670B2018
$1.42
