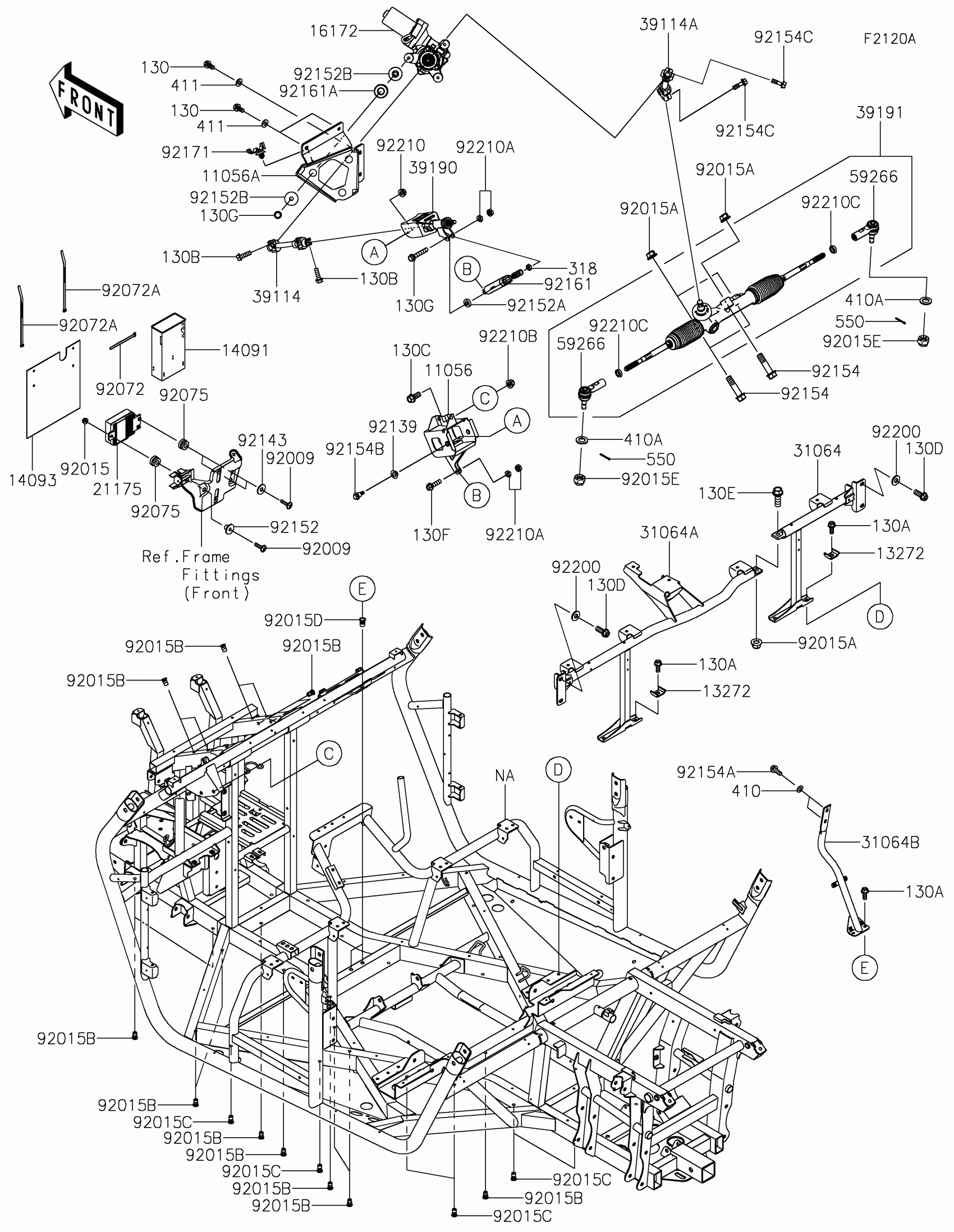

Kawasaki Teryx® Frame(JKBRFCF1 PB508548 - ) Diagram
#
11056
BRACKET,HOLDER
11056-7157
$143.42
11056A
BRACKET
11056-7781
$96.82
13272
PLATE
13272-1336
$1.11
14091
COVER,ECU
14091-7560
$46.35
14093
COVER
14093-0397
$9.07
14094
COVER,STEERING SHAFT
14094-0322
$6.52
16172
ACTUATOR,EPS
16172-0568
$1,812.19
21175
CONTROL UNIT-ELECTRONIC
21175-0809
$861.42
31064
PIPE-COMP,SUB FRAME,SEAT,RH
31064-0658
$64.89
31064A
PIPE-COMP,SUB FRAME,SEAT,LH
31064-0667
$138.40
31064B
PIPE-COMP
31064-0676
$34.28
39114
SHAFT-COMP-STRG
39114-0020
$93.56
39114A
SHAFT-COMP-STRG
39114-0044
$93.56
39190
SHAFT-ASSY-STEERING
39190-0022
$231.78
39191
GEAR-ASSY-STEERING
39191-0038
$883.83
59266
JOINT-BALL
59266-0771
$86.80
92009
SCREW,6X25
92009-1465
$3.92
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92015B
NUT,POP,6MM,L=15
92015-1791
$4.69
92015C
NUT,POP,6MM,L=16.5
92015-1792
$4.69
92015D
NUT,POP,8MM,L=16.5
92015-1793
$5.00
92015E
NUT,CASTLE,14MM
92015-1841
$8.38
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=188
92072-1239
$1.73
92075
DAMPER,RUBBER
92075-1123
$5.00
92139
BUSHING
92139-0230
$4.61
92143
COLLAR,L=6.5
92143-1025
$6.22
92152
COLLAR,6.5X10X13.3
92152-0957
$9.73
92152A
COLLAR,8.2X18X5
92152-1848
$5.69
92152B
COLLAR,8.5X30X10.6
92152-2149
$5.04
92154
BOLT,FLANGED,12X50
92154-1008
$7.85
92154A
BOLT,FLANGED,8X20
92154-1130
$3.86
92154B
BOLT,6X21.5
92154-1320
$2.49
92154C
BOLT
92154-4224
$3.97
92161
DAMPER,GAS SPRING
92161-1825
$51.50
92161A
DAMPER,ACTUATOR
92161-7517
$3.35
92171
CLAMP
92171-0453
$3.54
92200
WASHER,10.2X23X2.5
92200-0211
$3.35
92210
NUT,LOCK,FLANGED,6MM
92210-0303
$1.34
92210A
NUT,HARD LOCK,8MM
92210-0934
$4.92
92210B
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
92210C
NUT
92210-1933
$16.39
130
BOLT-FLANGED,8X16
130BA0816
$1.12
130A
BOLT-FLANGED,8X20
130BA0820
$4.14
130B
BOLT-FLANGED,8X25
130BA0825
$2.95
130C
BOLT-FLANGED,10X22
130BA1022
$1.94
130D
BOLT-FLANGED,10X25
130BA1025
$3.40
130E
BOLT-FLANGED,12X35
130BA1235
$3.63
130F
BOLT-FLANGED,8X30
130CA0830
$1.08
130G
BOLT-FLANGED,8X45
130CA0845
$1.22
318
NUT-HEX-SMALL,8MM
318BA0800
$1.34
410
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
410A
WASHER-PLAIN-SMALL,14MM
410AA1400
$2.15
411
WASHER-PLAIN,8MM
411AA0800
$0.96
550
PIN-COTTER,3.0X25
550AA3025
$0.62
