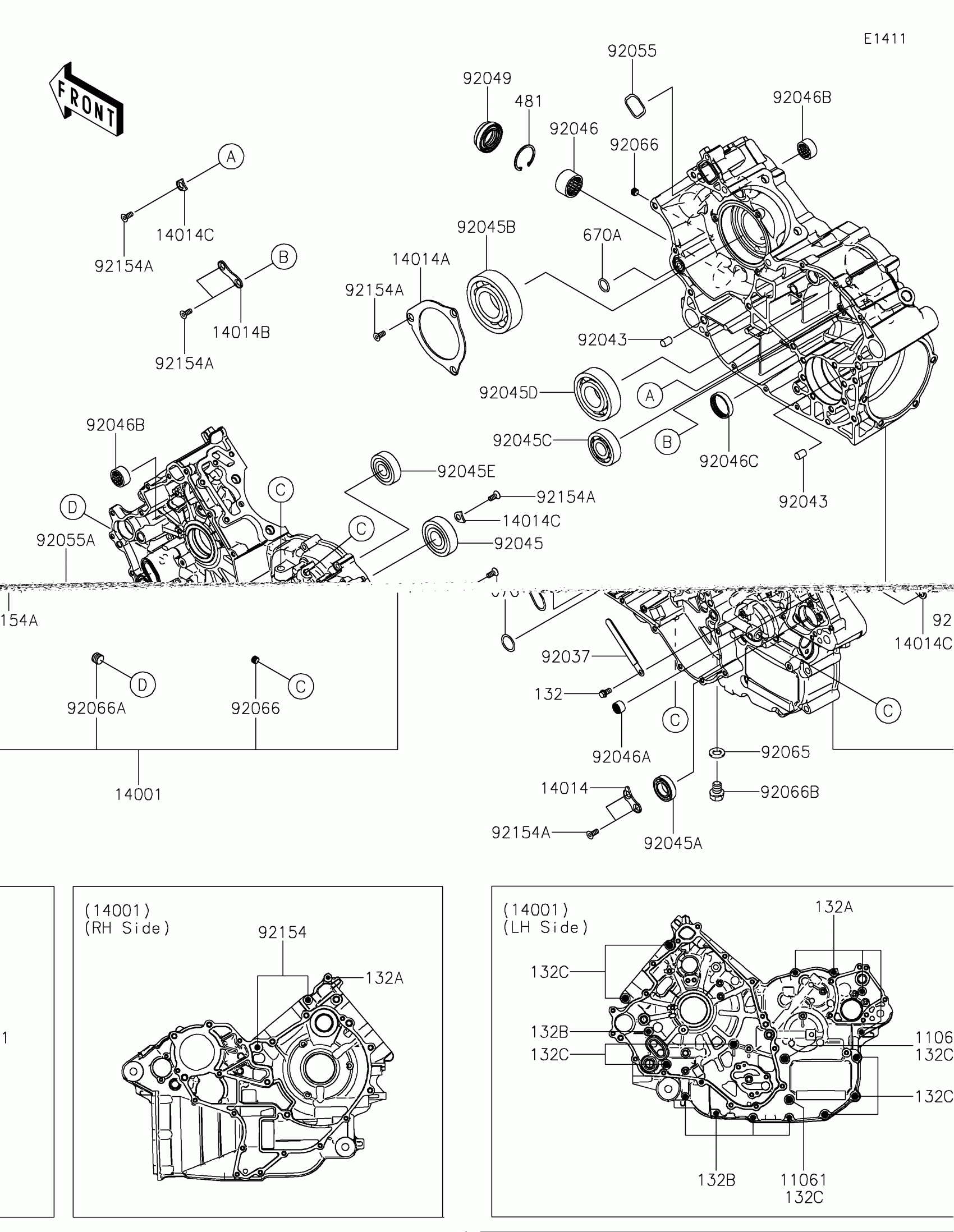

Kawasaki Teryx® Crankcase Diagram
#
Description
Price
11061
GASKET,8.2X15
11061-0727
$2.30
14001
SET-CRANKCASE
14001-0655
$1,234.25
14014
PLATE-POSITION
14014-0553
$5.65
14014A
PLATE-POSITION
14014-0554
$26.59
14014B
PLATE-POSITION
14014-0555
$5.65
14014C
PLATE-POSITION
14014-0557
$3.74
92037
CLAMP
92037-1993
$5.52
92043
PIN,10X14
92043-1506
$3.32
92045
BEARING-BALL,63/22LUA
92045-0704
$34.83
92045A
BEARING-BALL,6904
92045-0705
$22.42
92045B
BEARING-BALL,6308YA3-T2C3
92045-0706
$63.89
92045C
BEARING-BALL,TMB304LUA
92045-0743
$29.05
92045D
BEARING-BALL,63/32C3
92045-1364
$42.60
92045E
BEARING-BALL,6303LUA
92045-1389
$21.65
92046
BEARING-NEEDLE
92046-0022
$24.97
92046A
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046B
BEARING-NEEDLE,BA13178ZE01
92046-0048
$18.39
92046C
BEARING-NEEDLE,7E-HKS33X38X8
92046-1221
$32.47
92049
SEAL-OIL,25X45X9.5
92049-0739
$13.49
92055
RING-O,33X2.6
92055-0723
$1.94
92055A
RING-O,31.2X2.4
92055-0724
$3.65
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,PT1/8X7
92066-0863
$5.89
92066A
PLUG,BREATHER
92066-1035
$12.96
92066B
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92154
BOLT,FLANGED,8X95
92154-0835
$5.33
92154A
BOLT,TORX,6X11.7
92154-1821
$3.92
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X40
132BD0640
$5.25
132B
BOLT-FLANGED-SMALL,6X55
132BD0655
$5.05
132C
BOLT-FLANGED-SMALL,8X75
132BD0875
$3.13
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
670
O RING,22MM
670B2022
$4.69
670A
O RING,16MM
670D2016
$1.70
