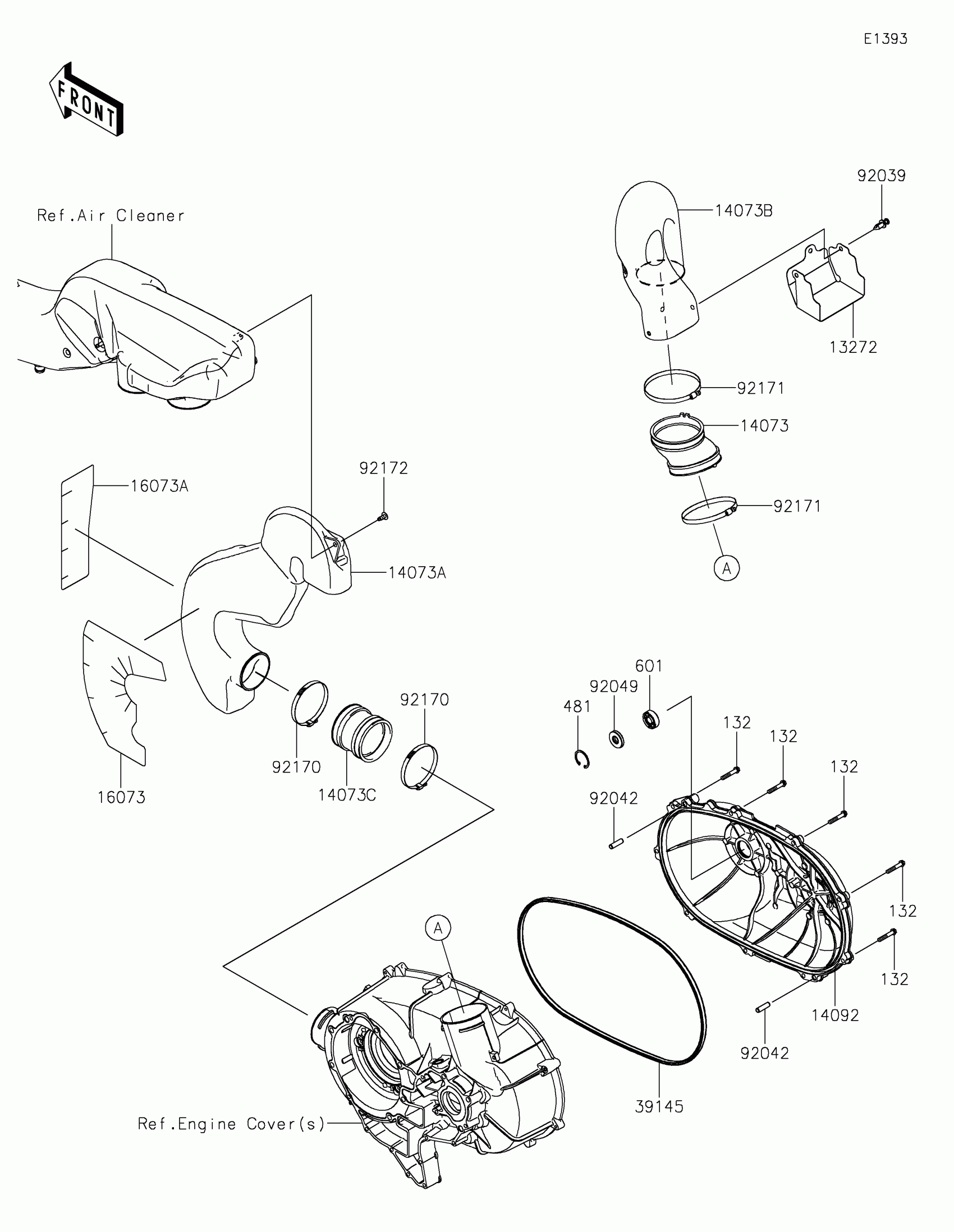

Kawasaki Teryx® Converter Cover Diagram

Description

Price

13272

PLATE

13272-2060

$14.68

14073

DUCT,JOINT

14073-0307

$10.28

14073A

DUCT,INTAKE

14073-0760

$41.45

14073B

DUCT,EXHAUST

14073-0839

$26.95

14073C

DUCT,JOINT

14073-1805

$10.86

14092

COVER,CVT

14092-0266

$151.77

16073

INSULATOR

16073-0843

$13.85

16073A

INSULATOR

16073-0844

$12.29

39145

TRIM-SEAL,CVT COVER

39145-0043

$30.62

92039

RIVET

92039-0776

$1.19

92042

PIN,DOWEL,8X28

92042-050

$4.31

92049

SEAL-OIL,12X32X5.8

92049-0167

$9.17

92170

CLAMP

92170-1763

$5.70

92171

CLAMP

92171-1383

$4.40

92172

SCREW

92172-0297

$1.68

132

BOLT-FLANGED-SMALL,6X35

132BA0635

$2.06

481

CIRCLIP-TYPE-C,32MM

481J3200

$2.68

601

BEARING-BALL

601A6201

$10.69
