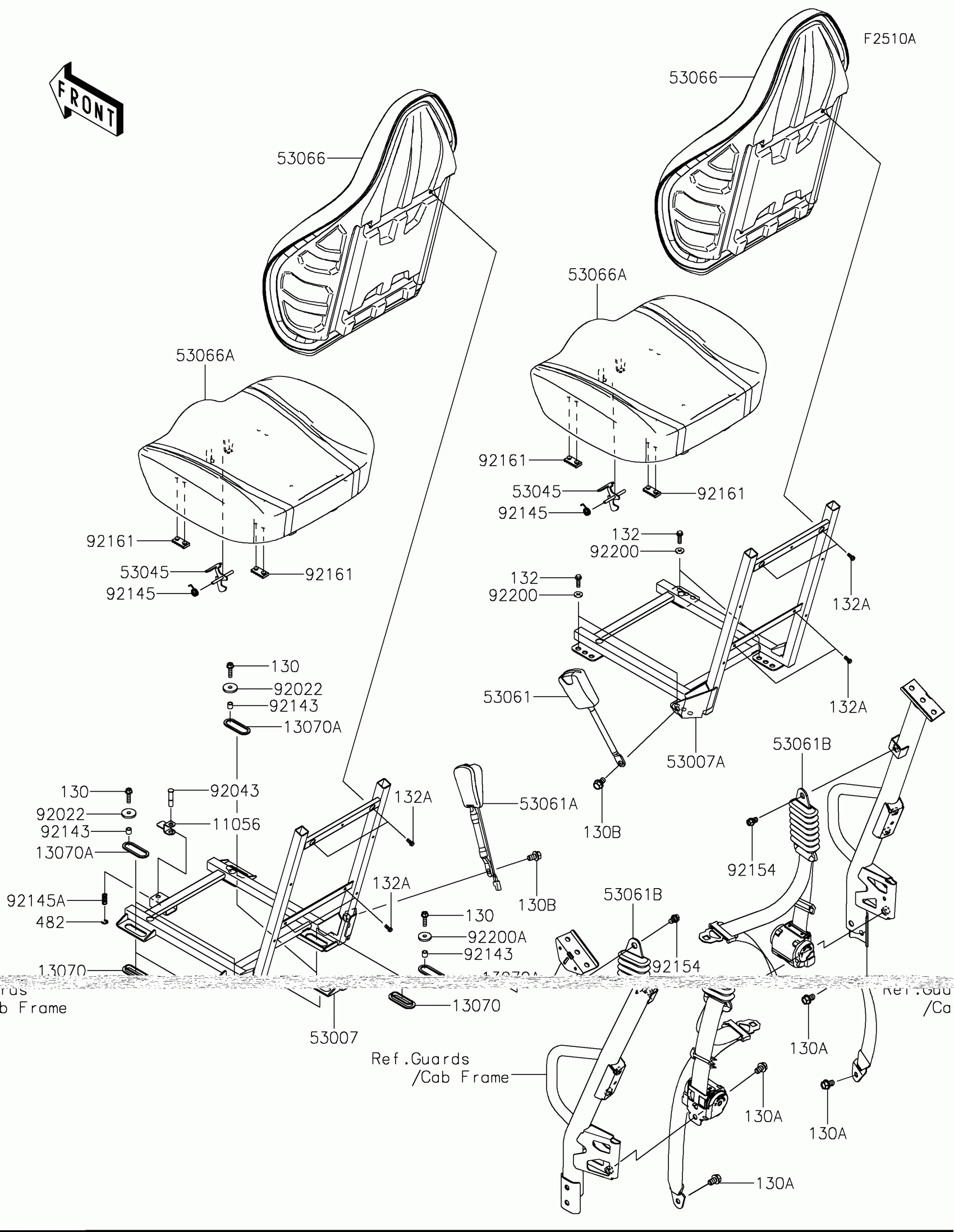

Kawasaki TERYX® CAMO Seat(HJF-HLF) Diagram

#

Description
Price

11056

BRACKET

11056-7917

$7.59

13070

GUIDE

13070-0806

$1.84

13070A

GUIDE

13070-0807

$1.58

53007

FRAME-SEAT,FR,LH

53007-0375

$109.85

53007A

FRAME-SEAT,FR,RH

53007-0376

$109.85

53045

HOOK-ASSY

53045-0019

$7.79

53061

BELT-SEAT,BUCKLE

53061-0039

$31.80

53061A

BELT-SEAT,BUCKLE,SW.

53061-0338

$55.82

53061B

BELT-SEAT,RETRACTOR,L=2500

53061-0345

$156.61

53066

SEAT-ASSY,BACK,BLACK

53066-0323-MA

$289.99

53066A

SEAT-ASSY,BASE,BLACK

53066-0532-MA

$275.88

92022

WASHER

92022-2116

$2.34

92043

PIN

92043-0882

$7.60

92143

COLLAR,8.8X12X11.5

92143-1340

$4.69

92145

SPRING,SEAT LATCH

92145-0022

$7.15

92145A

SPRING

92145-1682

$3.59

92154

BOLT,FLANGED,10X16

92154-2089

$7.35

92161

DAMPER,SEAT

92161-1489

$3.35

92200

WASHER,8.2X20.0X2.5

92200-0205

$3.35

92200A

WASHER,8.6X31X4.5

92200-1758

$2.17

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,12X20

130BA1220

$3.74

130B

BOLT-FLANGED,13X22

130BB1222

$4.72

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$4.12

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.49

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68
