2021 Kawasaki Teryx® Camo Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2021 Kawasaki Teryx® Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

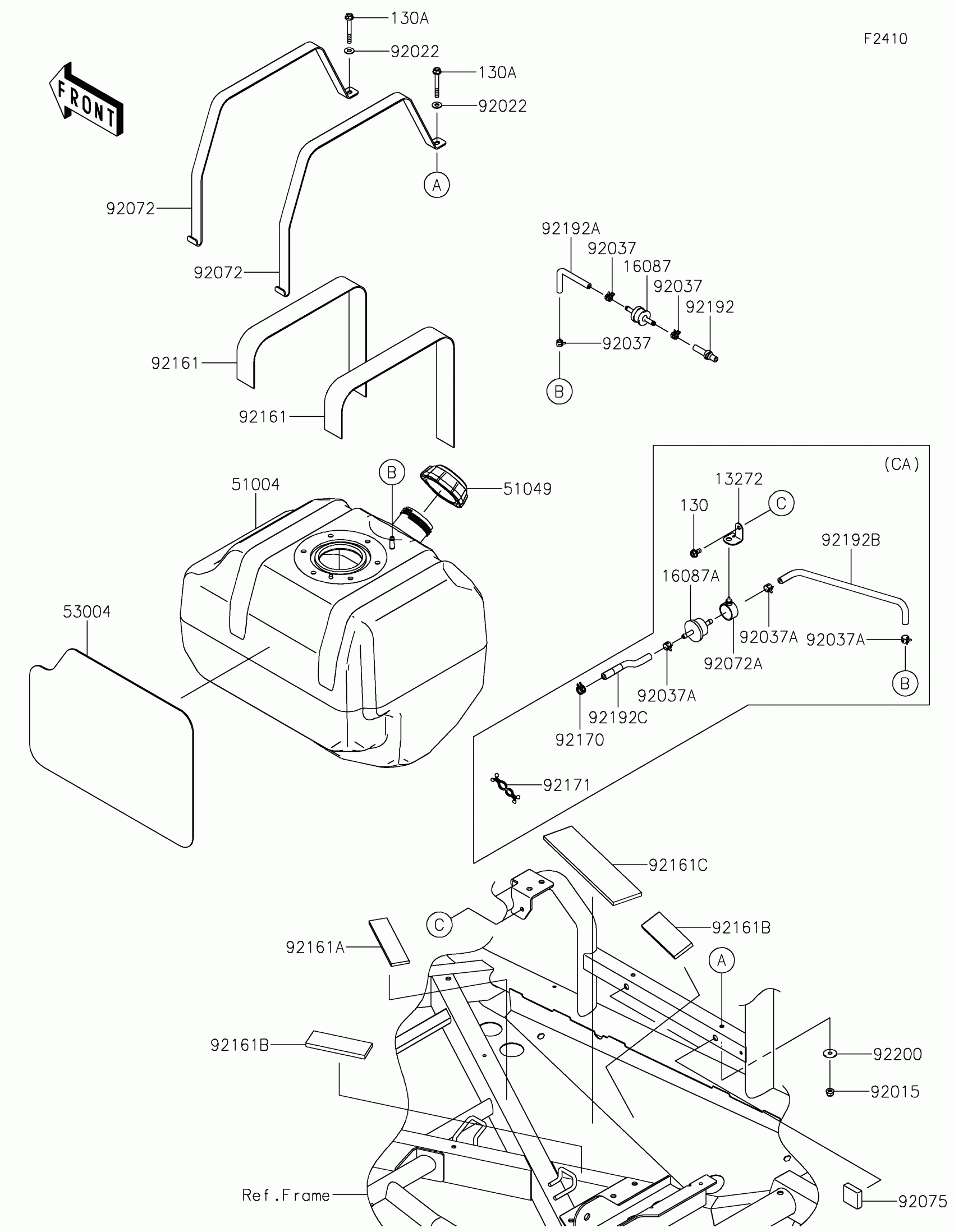

2021 Kawasaki Teryx® Camo Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2276

1

$2.53

In stock

16087

VALVE-CHECK

16087-0008

1
Out of stock

16087A

VALVE-CHECK

16087-0011

1
Out of stock

51004

TANK-FUEL

51004-0002

1
Out of stock

51049

CAP-TANK,FUEL

51049-0718

1
Out of stock

53004

MAT

53004-0554

1

$9.78

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92022

WASHER,7X16X1.2

92022-1344

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND,FUEL TANK

92072-0704

1
Out of stock

92072A

BAND

92072-0852

1
Out of stock

92075

DAMPER

92075-1882

1
Out of stock

92161

DAMPER,FUEL TANK

92161-0794

1
Out of stock

92161A

DAMPER,31.1X130X5

92161-0936

1
Out of stock

92161B

DAMPER,38X105X7

92161-0948

1
Out of stock

92161C

DAMPER,55X225X6.35

92161-1811

1

$13.76

In stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92171

CLAMP

92171-0476

1

$3.51

In stock

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

1
Out of stock

92192A

TUBE,VENT

92192-0949

1
Out of stock

92192B

TUBE,5X10.4X40/240

92192-1735

1
Out of stock

92192C

TUBE,FILTER-CHECK VALVE

92192-2259

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X50

130BA0650

1

$0.97

In stock
