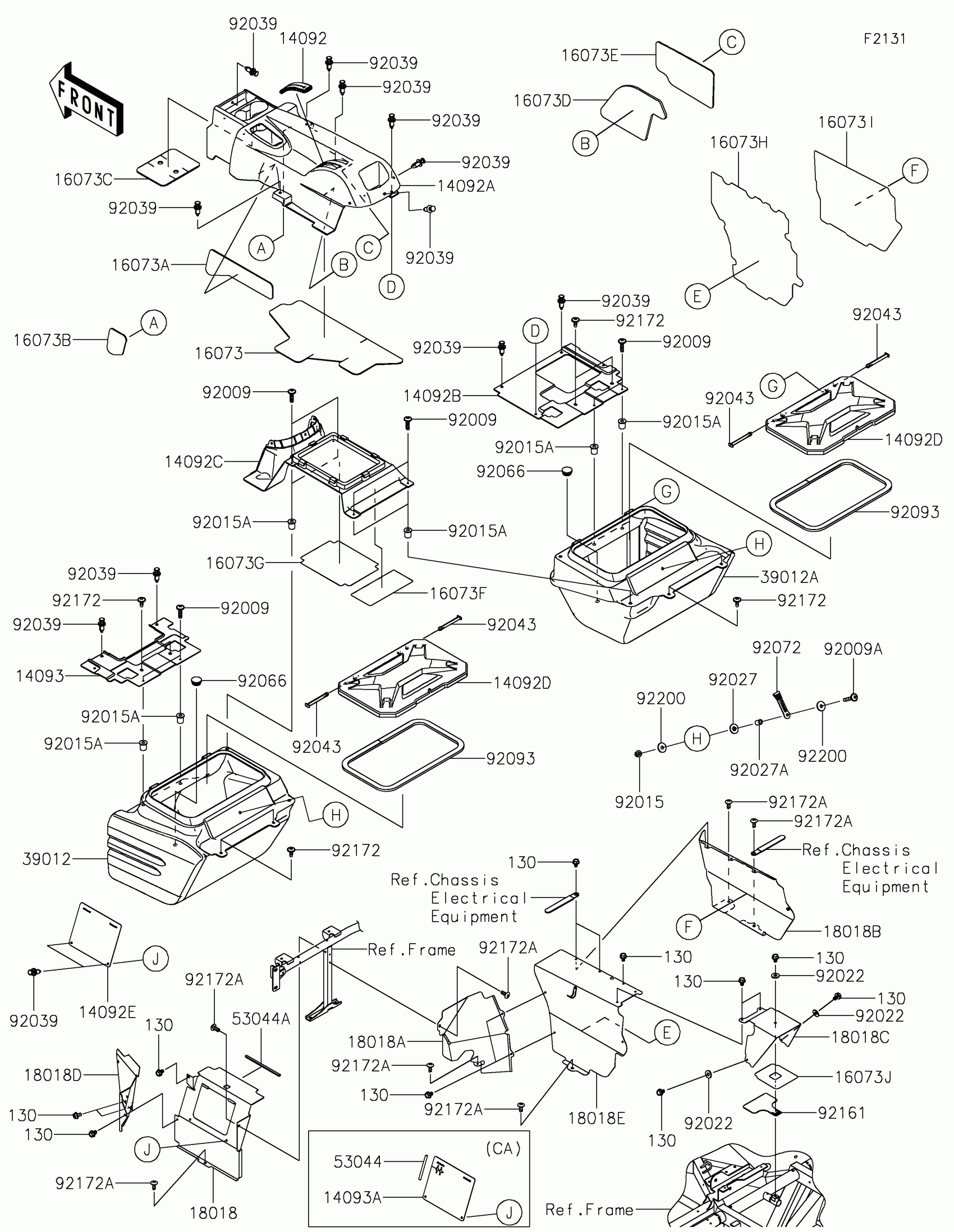

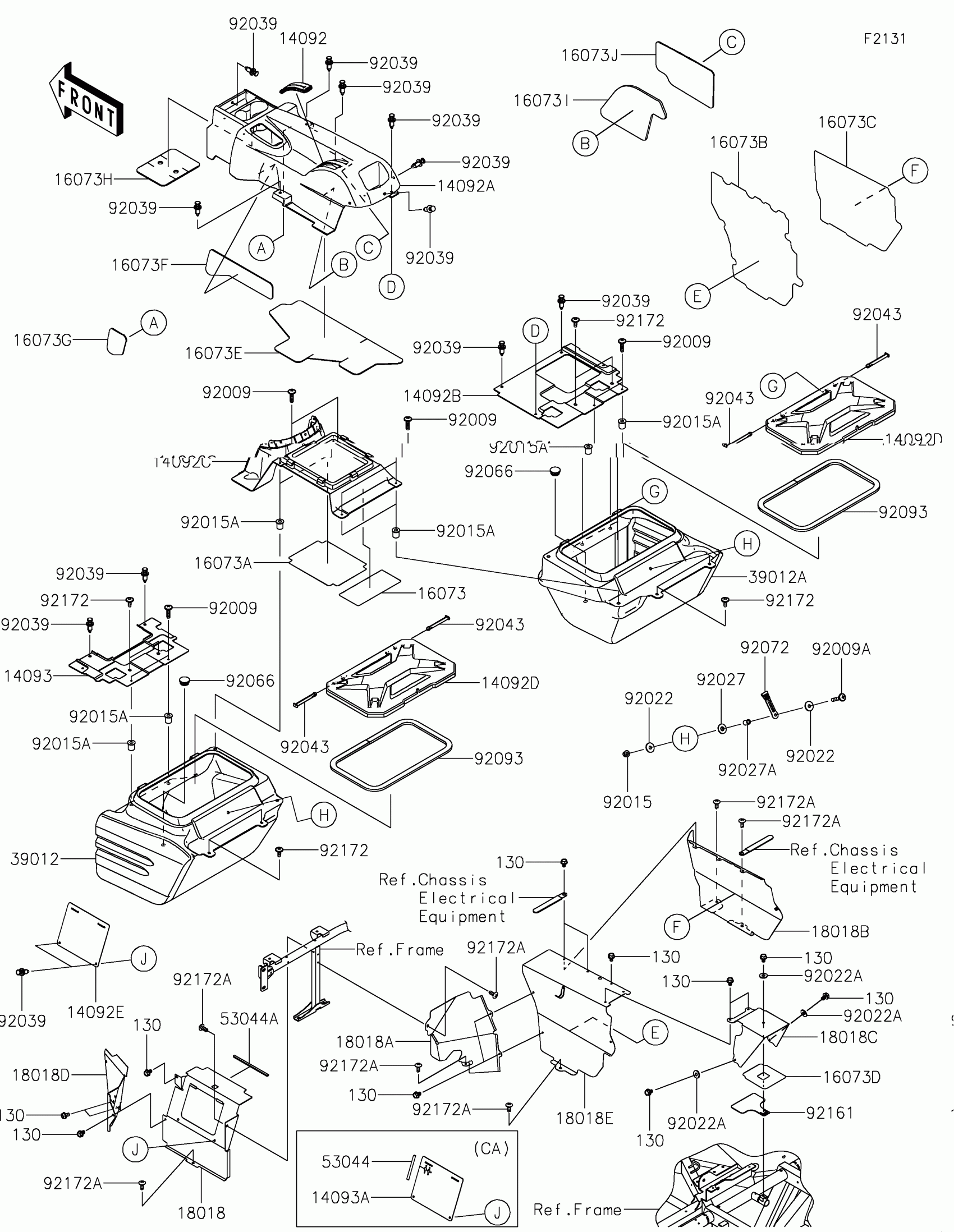

Kawasaki TERYX® CAMO Frame Fittings(Rear) Diagram

#

Description
Price

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.92

14092A

COVER,CENTER CONSOLE

14092-1056

$81.44

14092B

COVER,RR SIDE,RH

14092-1070

$21.84

14092C

COVER,RR CONSOLE

14092-1071

$28.50

14092D

COVER,RR STORAGE

14092-1072

$22.98

14092E

COVER,MAINTENANCE

14092-1136

$13.04

14093

COVER,RR SIDE,LH

14093-0063

$17.37

14093A

COVER,MAINTENANCE

14093-0560

$13.04

16073

INSULATOR,CENTER CONSOLE

16073-0800

$81.03

16073A

INSULATOR,CENTER CONSOLE

16073-0801

$27.73

16073B

INSULATOR,CENTER CONSOLE

16073-0802

$13.60

16073C

INSULATOR,CENTER CONSOLE

16073-0803

$18.15

16073D

INSULATOR,CENTER CONSOLE

16073-0804

$56.12

16073E

INSULATOR,CENTER CONSOLE

16073-0805

$47.23

16073F

INSULATOR,RR,115X255

16073-0917

$3.76

16073G

INSULATOR,FR,225X290

16073-0918

$6.73

16073H

INSULATOR,RR TUNNEL,LH

16073-0919

$20.48

16073I

INSULATOR,RR TUNNEL,RH

16073-0920

$12.92

16073J

INSULATOR,RR TUNNEL,RR

16073-0921

$2.55

18018

PLATE-HEAT GUARD,LH UD SEAT,FR

18018-0042

$67.06

18018A

PLATE-HEAT GUARD,LH UD SEAT,RR

18018-0043

$83.08

18018B

PLATE-HEAT GUARD,RR TUNNEL,RH

18018-0045

$58.91

18018C

PLATE-HEAT GUARD,RR TUNNEL,RR

18018-0047

$14.68

18018D

PLATE-HEAT GUARD,DRIVER

18018-0596

$57.64

18018E

PLATE-HEAT GUARD,RR TUNNEL,LH

18018-0599

$71.93

39012

CASE-STORAGE,RR,LH

39012-0035

$139.69

39012A

CASE-STORAGE,RR,RH

39012-0036

$139.69

53044

TRIM

53044-0564

$7.24

53044A

TRIM,L=200

53044-0573

$8.30

92009

SCREW,6X25

92009-1465

$3.92

92009A

SCREW,6X35

92009-1672

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT

92015-1700

$8.58

92022

WASHER

92022-2247

$0.62

92027

COLLAR,L=5.1

92027-1260

$6.22

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92039

RIVET

92039-0776

$1.19

92043

PIN

92043-0852

$1.91

92066

PLUG

92066-1306

$5.46

92072

BAND

92072-0144

$6.62

92093

SEAL

92093-0605

$8.47

92161

DAMPER,RR TUNNEL

92161-1577

$3.76

92172

SCREW,6X16

92172-0711

$3.02

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

130

BOLT-FLANGED,6X10

130AA0610

$0.49
