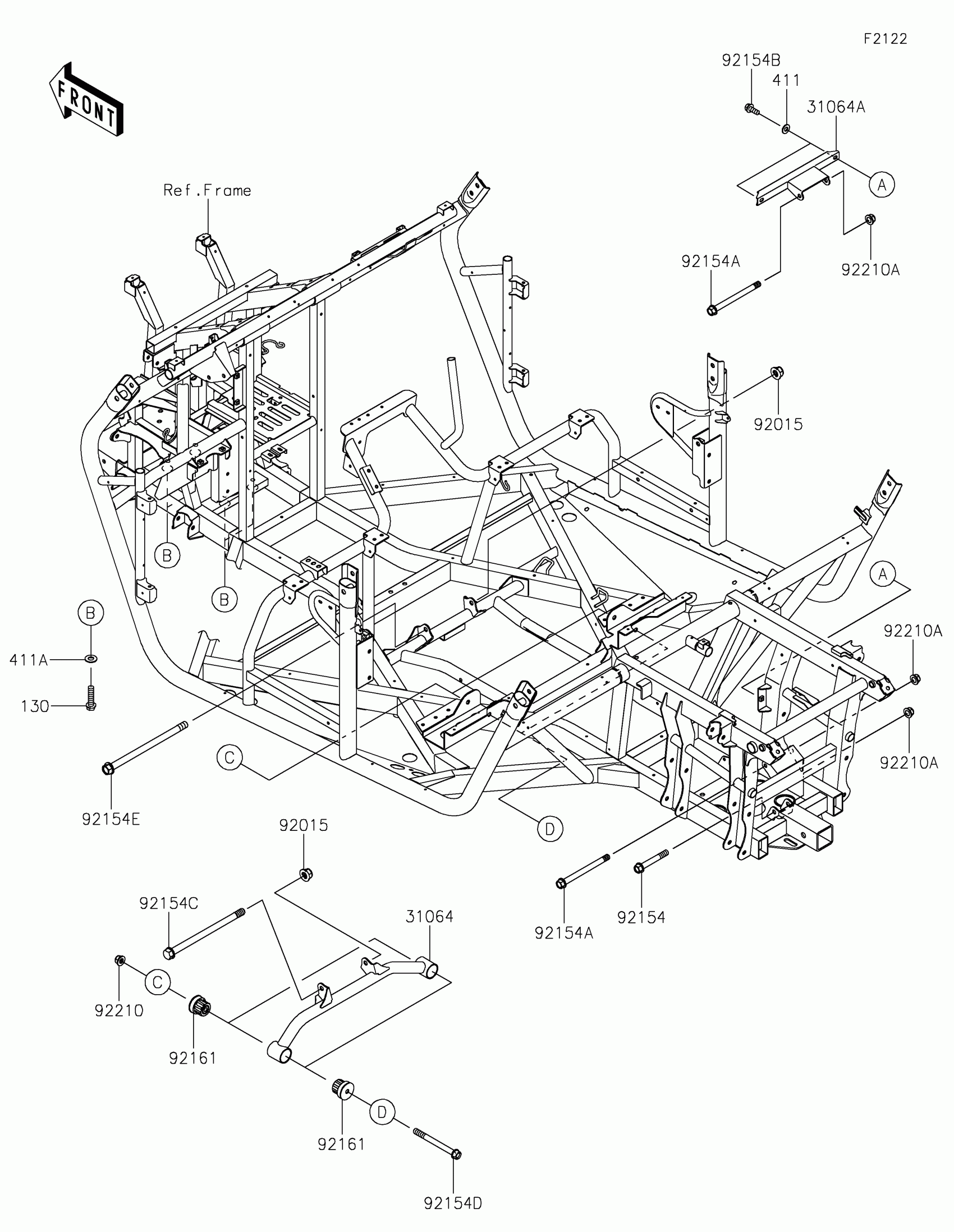

Kawasaki TERYX® CAMO Engine Mount Diagram

Description

Price

31064

PIPE-COMP,RR FRAME

31064-0621

$88.57

31064A

PIPE-COMP,RR GEARCASE MOUNT

31064-0660

$50.40

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92154

BOLT,FLANGED,10X70

92154-0894

$5.98

92154A

BOLT,FLANGED,10X120

92154-0895

$11.75

92154B

BOLT,FLANGED,8X20

92154-1130

$3.86

92154C

BOLT,FLANGED,12X190

92154-1131

$20.39

92154D

BOLT,FLANGED,10X105

92154-1132

$7.60

92154E

BOLT,FLANGED,12X200

92154-1133

$27.73

92161

DAMPER

92161-0423

$13.84

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,10X40

130BA1040

$2.01

411

WASHER-PLAIN,8MM

411AA0800

$0.96

411A

WASHER-PLAIN,10MM

411AA1000

$0.96
