2020 Kawasaki Teryx® Camo Brake Piping Diagram

← All diagrams

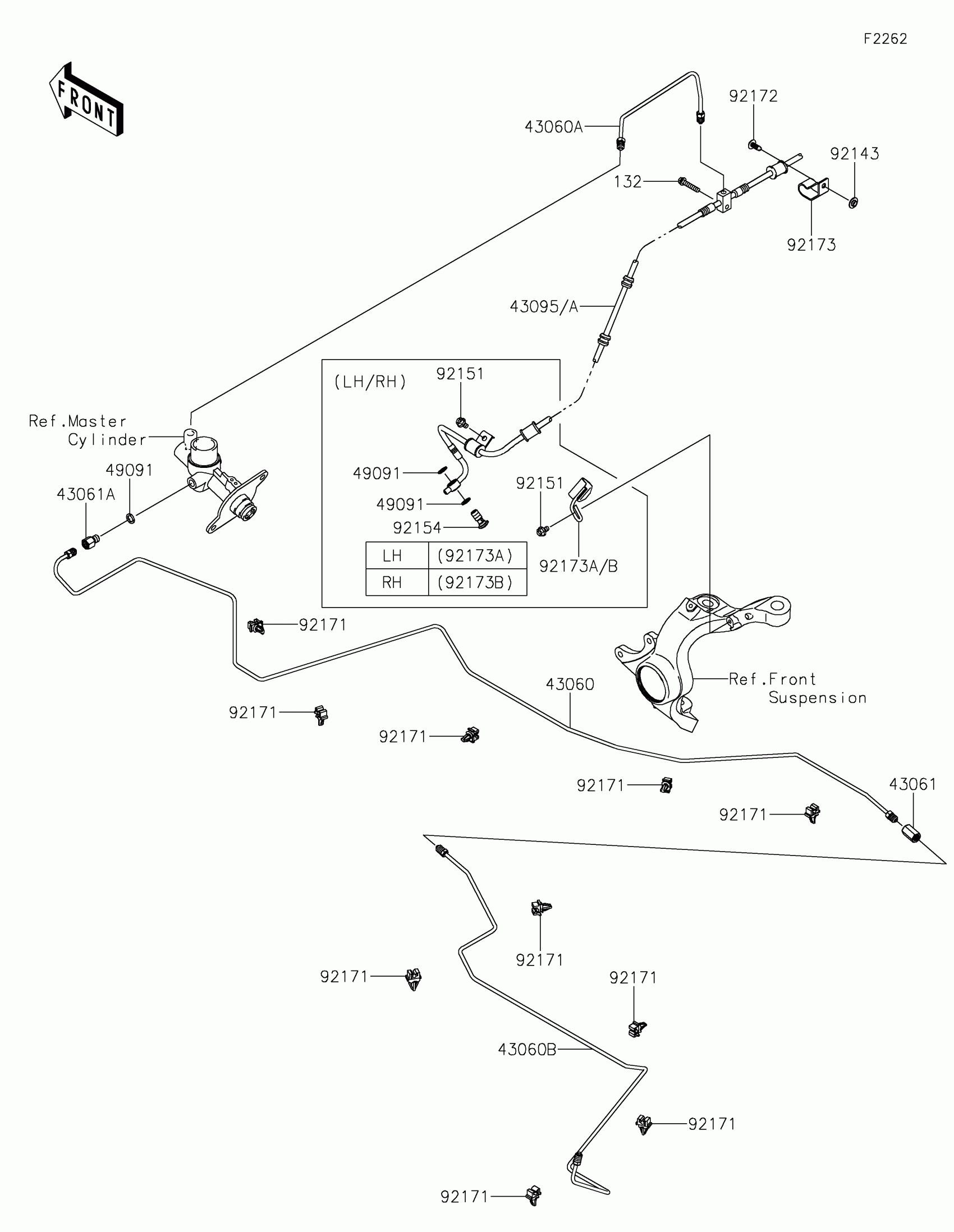

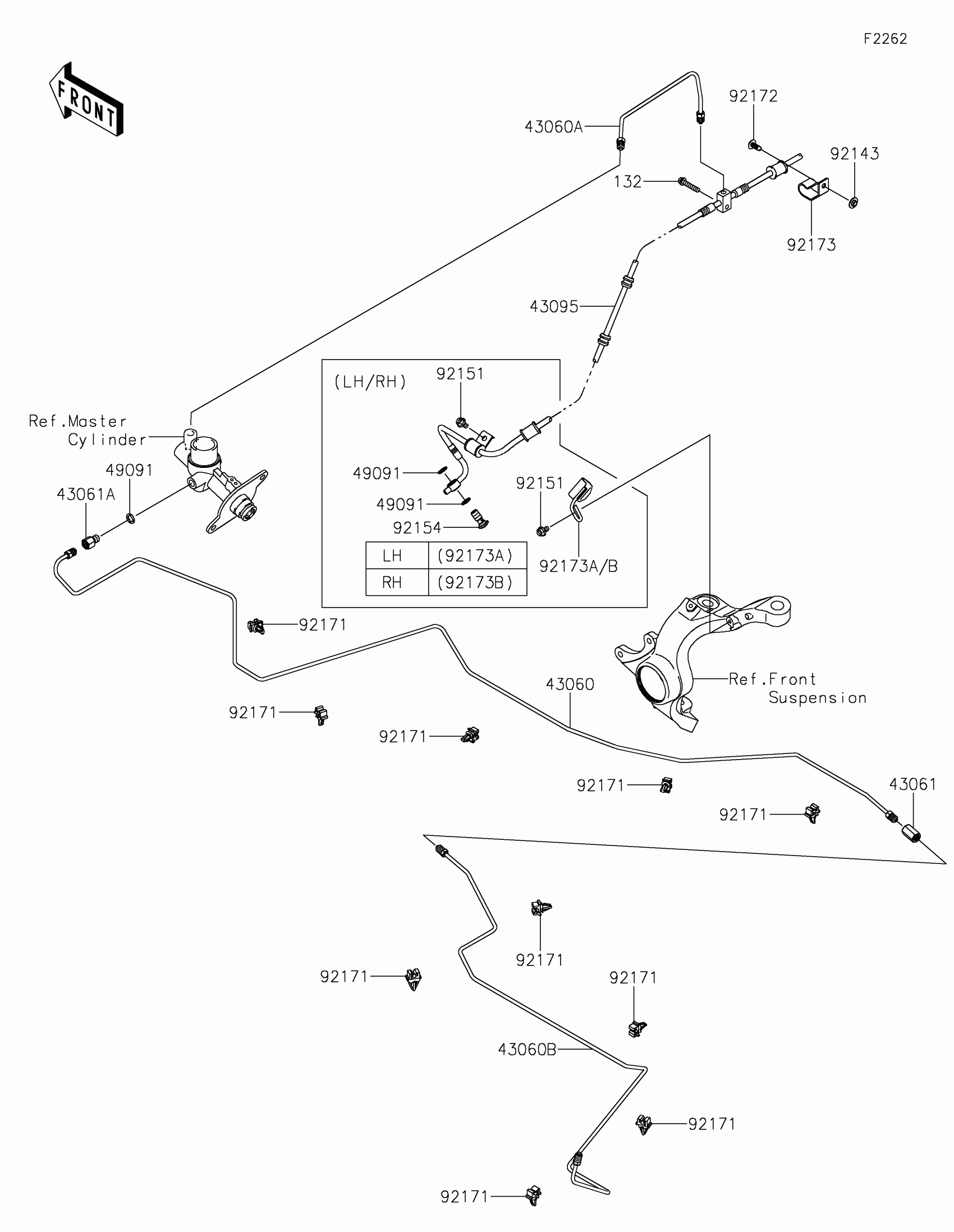

Find the part on the Brake Piping diagram for your 2020 Kawasaki Teryx® Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx® Camo Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43060

PIPE-BRAKE,M/C-JOINT

43060-0316

1
Out of stock

43060A

PIPE-BRAKE,M/C-FR JOINT

43060-0320

1
Out of stock

43060B

PIPE-BRAKE,JOINT-BRAKE

43060-0324

1
Out of stock

43061

JOINT-BRAKE

43061-0003

1
Out of stock

43061A

JOINT-BRAKE,M/C

43061-0302

1
Out of stock

43095A

HOSE-BRAKE,FR

43095-1568

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92151

BOLT,6X10

92151-1344

1
Out of stock

92154

BOLT,TORX,10X23

92154-1875

1
Out of stock

92171

CLAMP

92171-0805

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92173

CLAMP

92173-0930

1
Out of stock

92173A

CLAMP,LH

92173-0934

1
Out of stock

92173B

CLAMP,RH

92173-0935

1
Out of stock

132

1

$2.17

In stock
