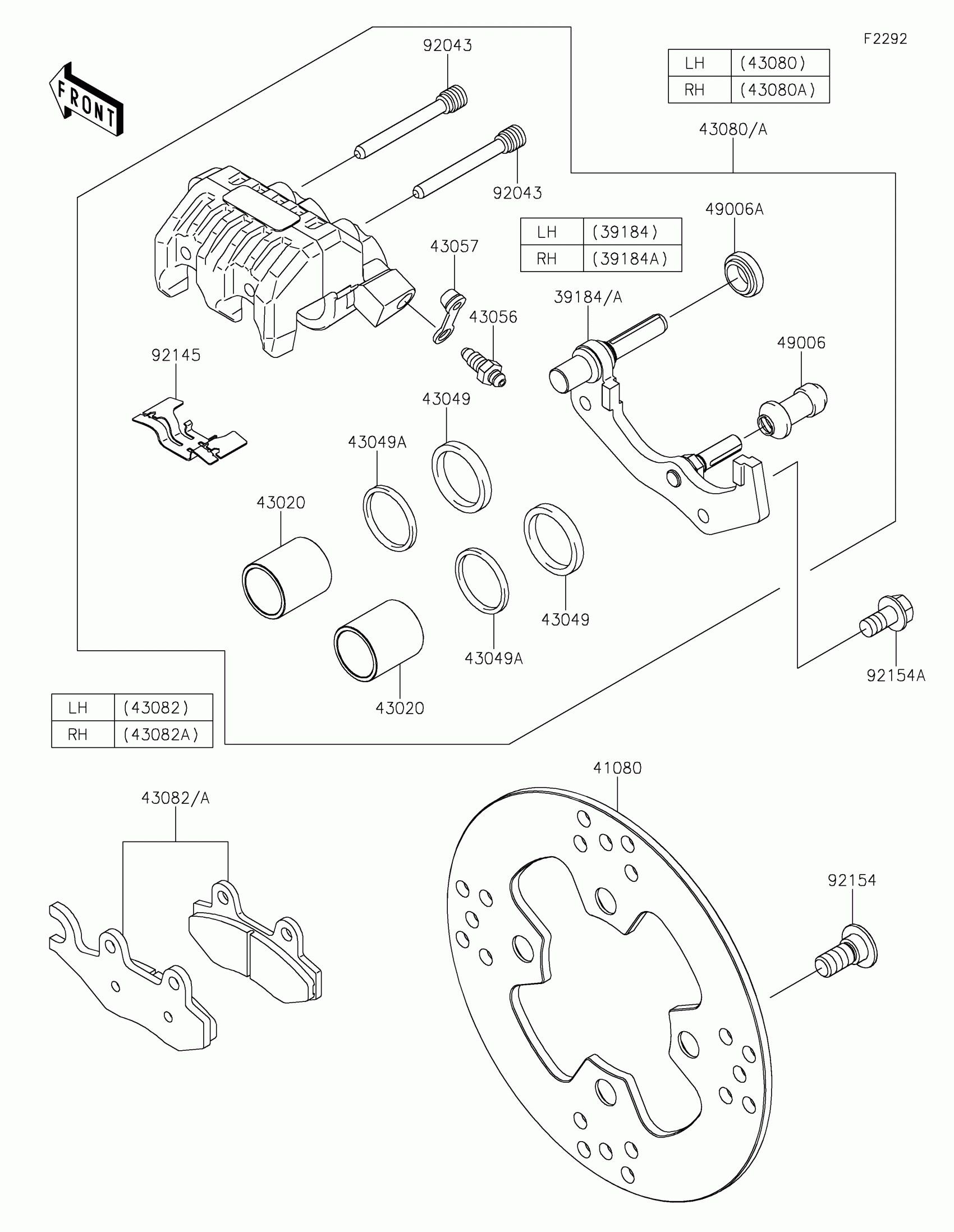

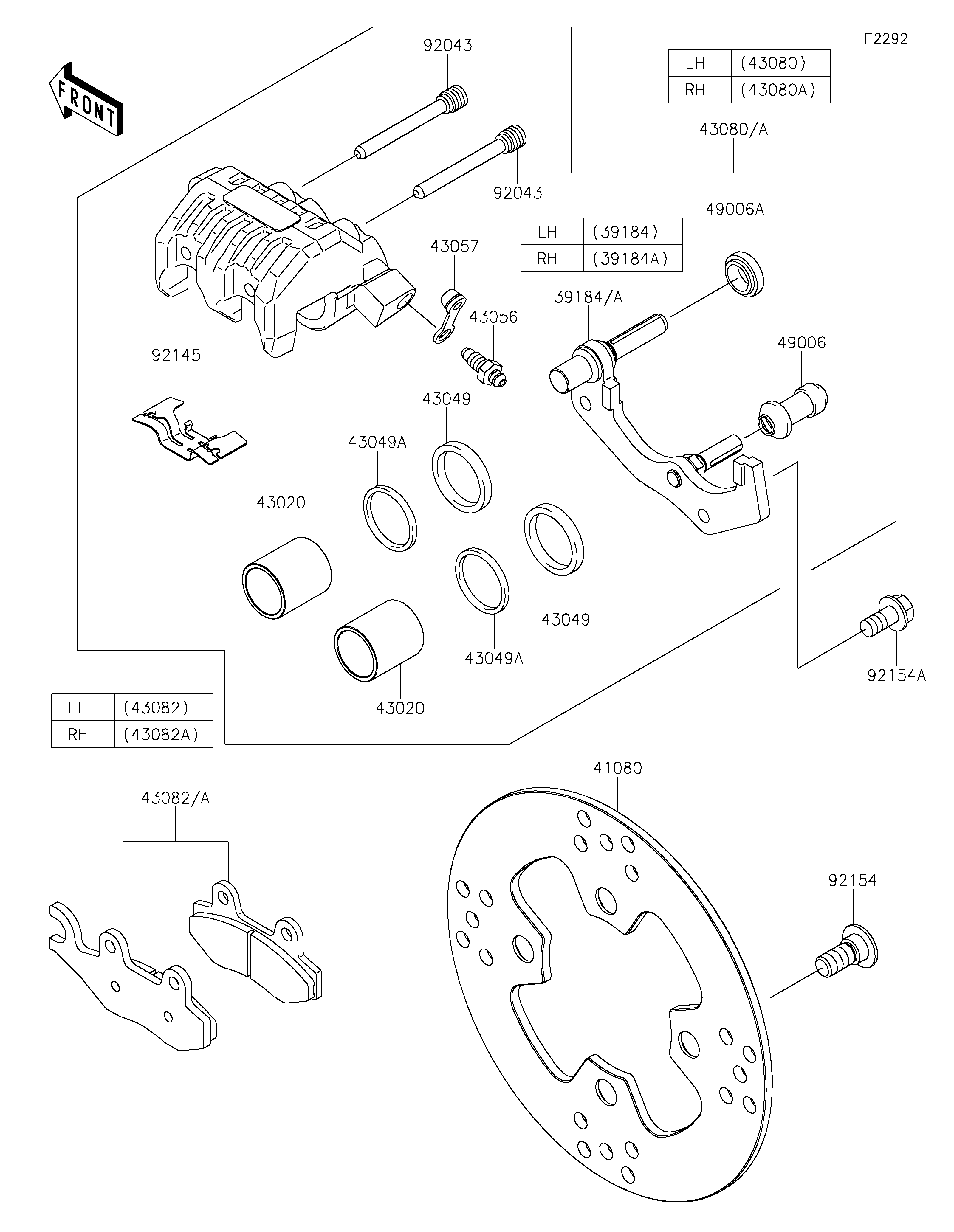

Kawasaki TERYX® CAMO Front Brake Diagram

#

Description

Price

39184

BRACKET-ASSY,LH

39184-0045

Unavailable

39184A

BRACKET-ASSY,RH

39184-0046

Unavailable

41080

DISC,200MM

41080-0661

Unavailable

43020

PISTON-COMP-BRAKE

43020-0054

Unavailable

43049

PACKING

43049-0556

Unavailable

43049A

PACKING

43049-0557

Unavailable

43056

BREATHER-BRAKE

43056-0055

Unavailable

43057

CAP-BREATHER

43057-0552

Unavailable

43080

CALIPER-SUB-ASSY,LH

43080-0165

Unavailable

43080A

CALIPER-SUB-ASSY,RH

43080-0166

Unavailable

43082

PAD-ASSY-BRAKE,LH

43082-0126

Unavailable

43082A

PAD-ASSY-BRAKE,RH

43082-0127

Unavailable

49006

BOOT

49006-0565

Unavailable

49006A

BOOT

49006-0566

Unavailable

92043

PIN

92043-0184

Unavailable

92145

SPRING

92145-0705

Unavailable

92154

BOLT,SOCKET,10X23

92154-0713

Unavailable

92154A

BOLT,FLANGED,8X16

92154-1952

Unavailable
