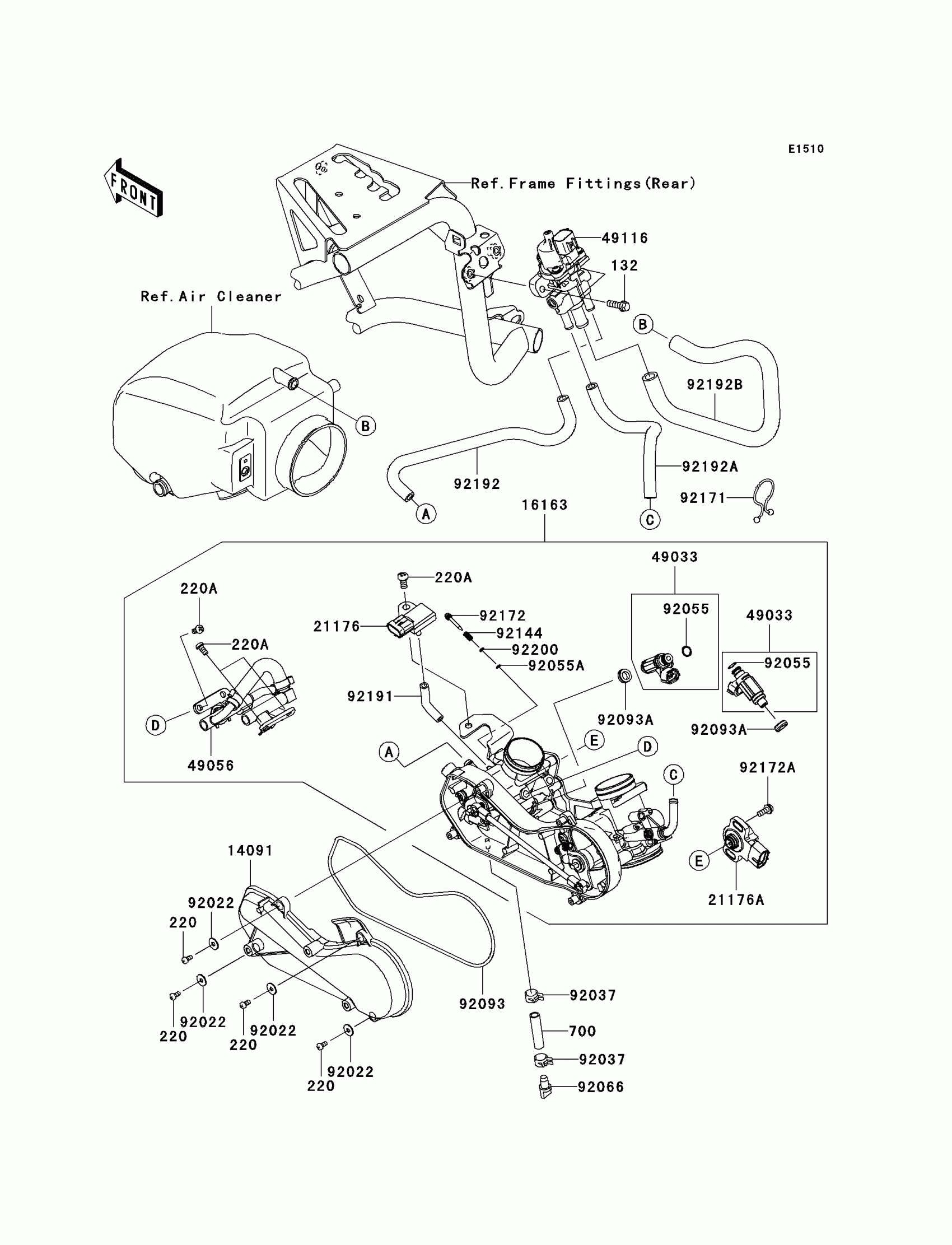

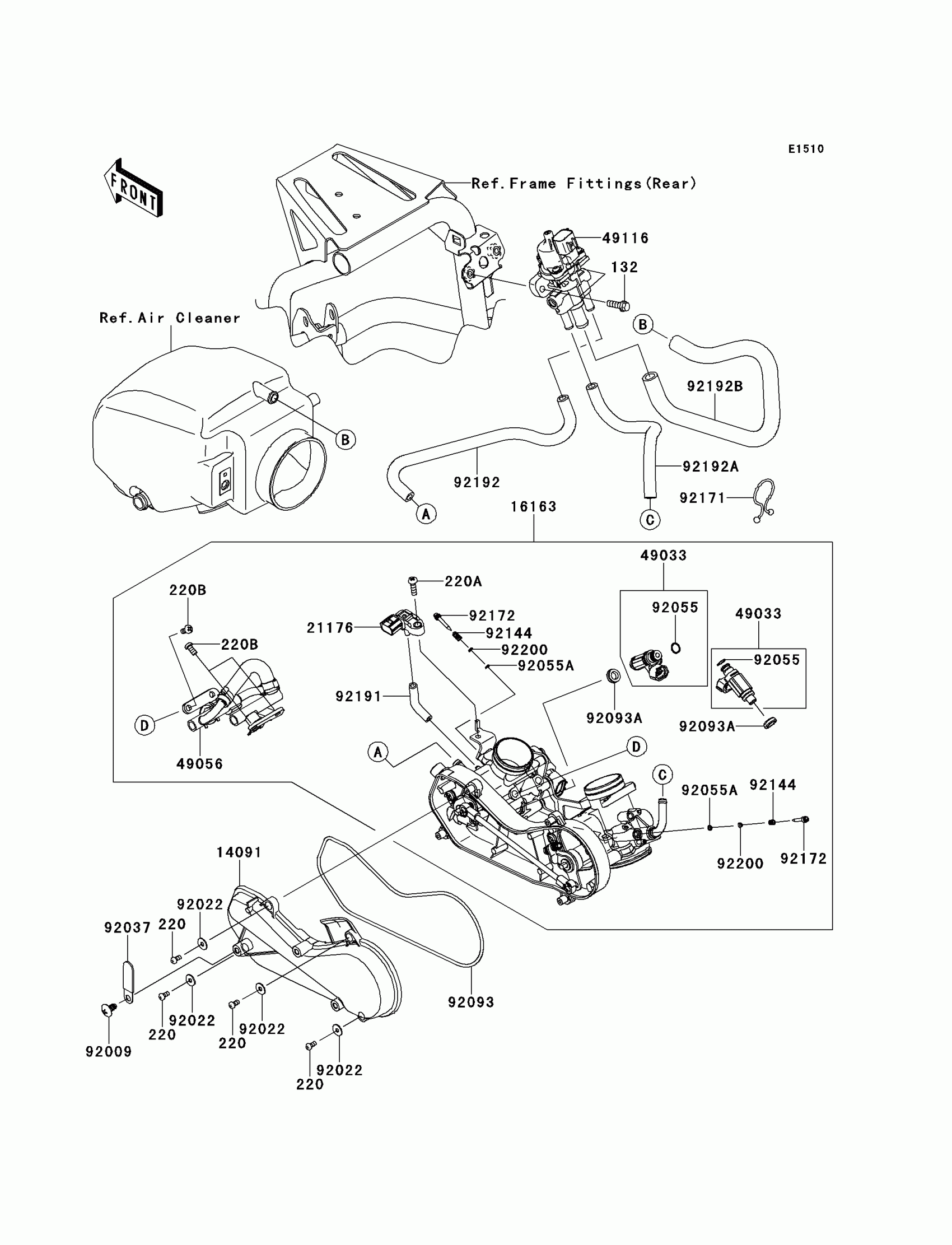

Kawasaki TERYX® 750 FI 4x4 Throttle Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X18
132BD0618
$3.89
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
220A
SCREW-PAN-CROS,5X16
220AA0516
$2.06
220B
SCREW-PAN-CROSS,6X12
220D0612
$1.12
14091
COVER,THROTTLE LINK
14091-1731
$22.78
16163
THROTTLE-ASSY,34EIS
16163-0736
$937.85
21176
SENSOR,PRESSURE
21176-0111
$222.28
49033
NOZZLE-INJECTION
49033-1060
$140.46
49056
PIPE-INJECTION
49056-0033
Unavailable
49116
VALVE-ASSY,ISC
49116-0026
$229.17
92009
SCREW,6X12
92009-1480
$3.21
92022
WASHER,5.2X13X1
92022-1380
$4.31
92037
CLAMP,L=45
92037-1539
$5.00
92055
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92055A
RING-O,AIR SCREW
92055-1658
$6.00
92093
SEAL
92093-0082
$5.94
92093A
SEAL
92093-0127
$10.56
92144
SPRING,THROTTLE STOP SCREW
92144-1674
$5.74
92171
CLAMP
92171-0876
$2.98
92172
SCREW
92172-0156
$15.20
92191
TUBE,3.2X7.4X70
92191-1552
$4.14
92192
TUBE,ISC-FR THROBO
92192-0765
$9.03
92192A
TUBE,ISC-RR THROBO
92192-0766
$8.10
92192B
TUBE,ISC-DUCT
92192-0767
$22.96
92200
WASHER,PILOT AIR SCREW
92200-1564
$2.58
