Description

Price

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,6X12

220AA0612

$1.19

700

TUBE-PVC

700Q0740

$8.05

14091

COVER,THROTTLE LINK

14091-1731

$22.78

16163

THROTTLE-ASSY,34EIS

16163-0137

Unavailable

21176

SENSOR,PRESSURE

21176-0058

$141.24

21176A

SENSOR,TPS

21176-0100

$218.06

49033

NOZZLE-INJECTION

49033-1060

$140.46

49056

PIPE-INJECTION

49056-0028

$375.87

49116

VALVE-ASSY,ISC

49116-0026

$229.17

92009

SCREW,6X12

92009-1480

$3.21

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,L=45

92037-1539

$5.00

92037A

CLAMP

92037-2113

$1.03

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0082

$5.94

92093A

SEAL

92093-0127

$10.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92171

CLAMP

92171-0876

$2.98

92172

SCREW

92172-0156

$15.20

92172A

SCREW

92172-0254

$2.97

92191

TUBE,3.2X7.4X70

92191-1552

$4.14

92192

TUBE,ISC-FR THROBO

92192-0765

$9.03

92192A

TUBE,ISC-RR THROBO

92192-0766

$8.10

92192B

TUBE,ISC-DUCT

92192-0767

$22.96

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

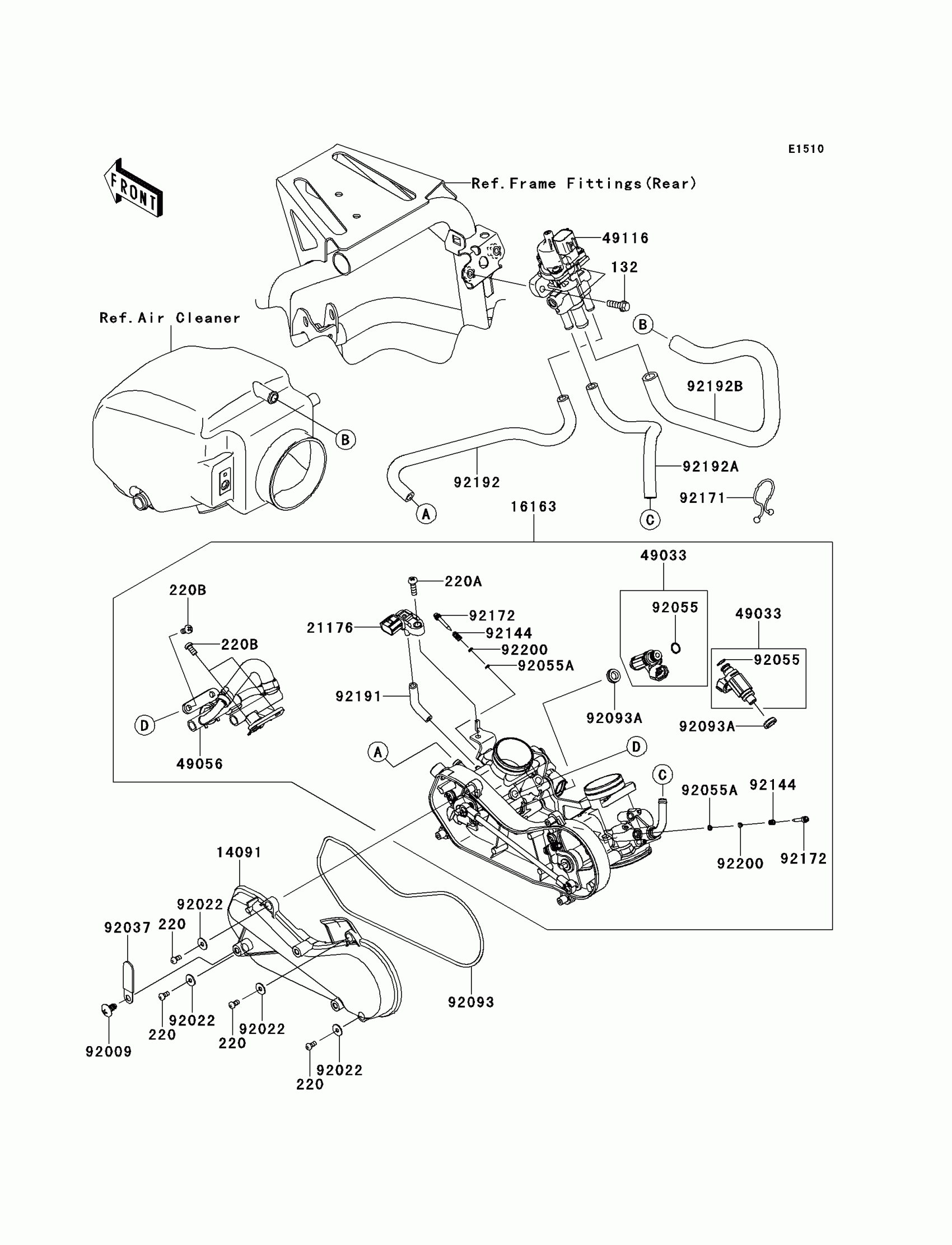

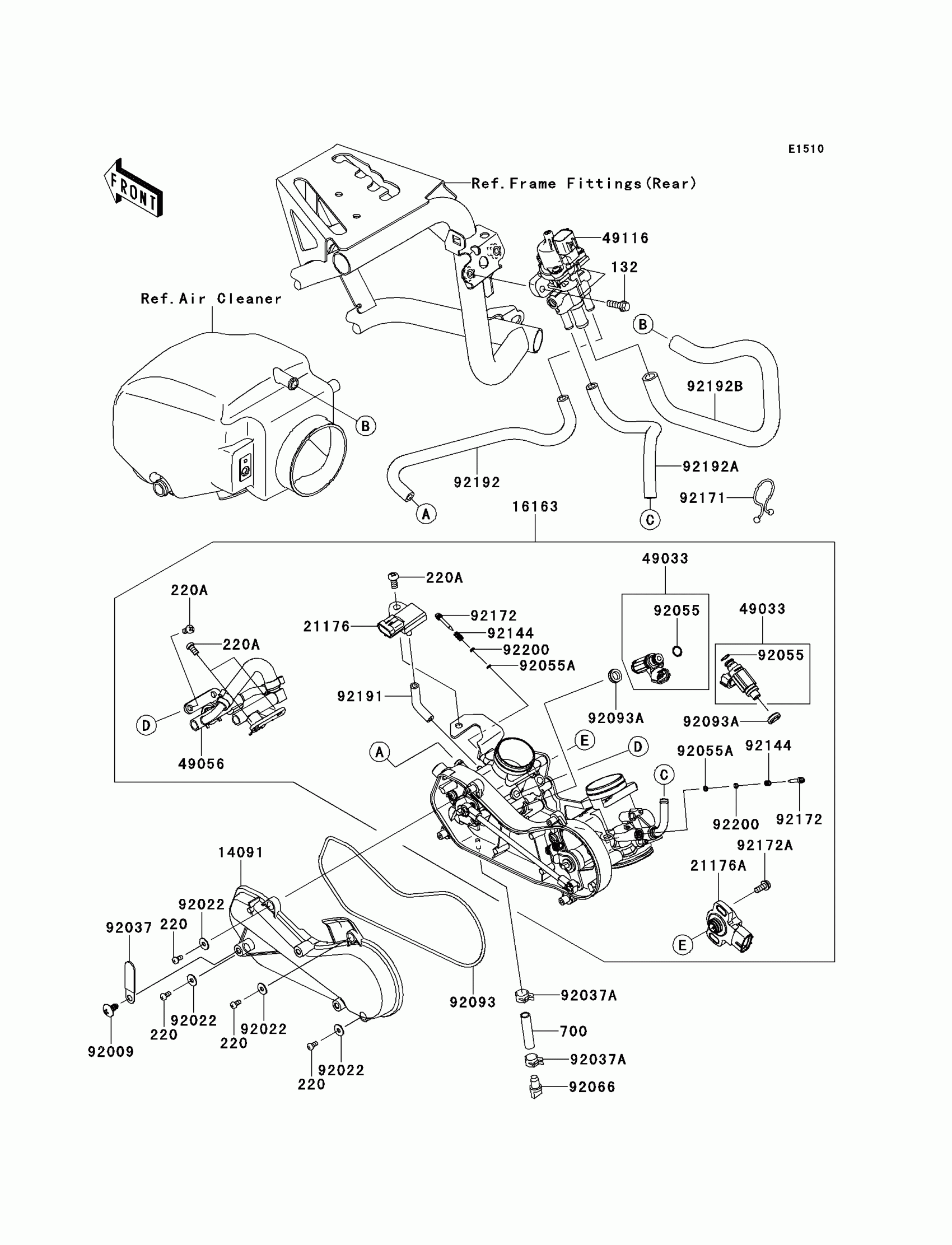

Kawasaki TERYX® 750 FI 4x4 SPORT Throttle Diagram

BOLT-FLANGED-SMALL,6X18

SCREW-PAN-CROS,4X8

SCREW-PAN-CROS,6X12

TUBE-PVC

COVER,THROTTLE LINK

THROTTLE-ASSY,34EIS

SENSOR,PRESSURE

SENSOR,TPS

NOZZLE-INJECTION

PIPE-INJECTION

VALVE-ASSY,ISC

SCREW,6X12

WASHER,5.2X13X1

CLAMP,L=45

CLAMP

RING-O,INJECTION NOZZLE

RING-O,AIR SCREW

PLUG,DRAIN

SEAL

SEAL

SPRING,THROTTLE STOP SCREW

CLAMP

SCREW

SCREW

TUBE,3.2X7.4X70

TUBE,ISC-FR THROBO

TUBE,ISC-RR THROBO

TUBE,ISC-DUCT

WASHER,PILOT AIR SCREW
