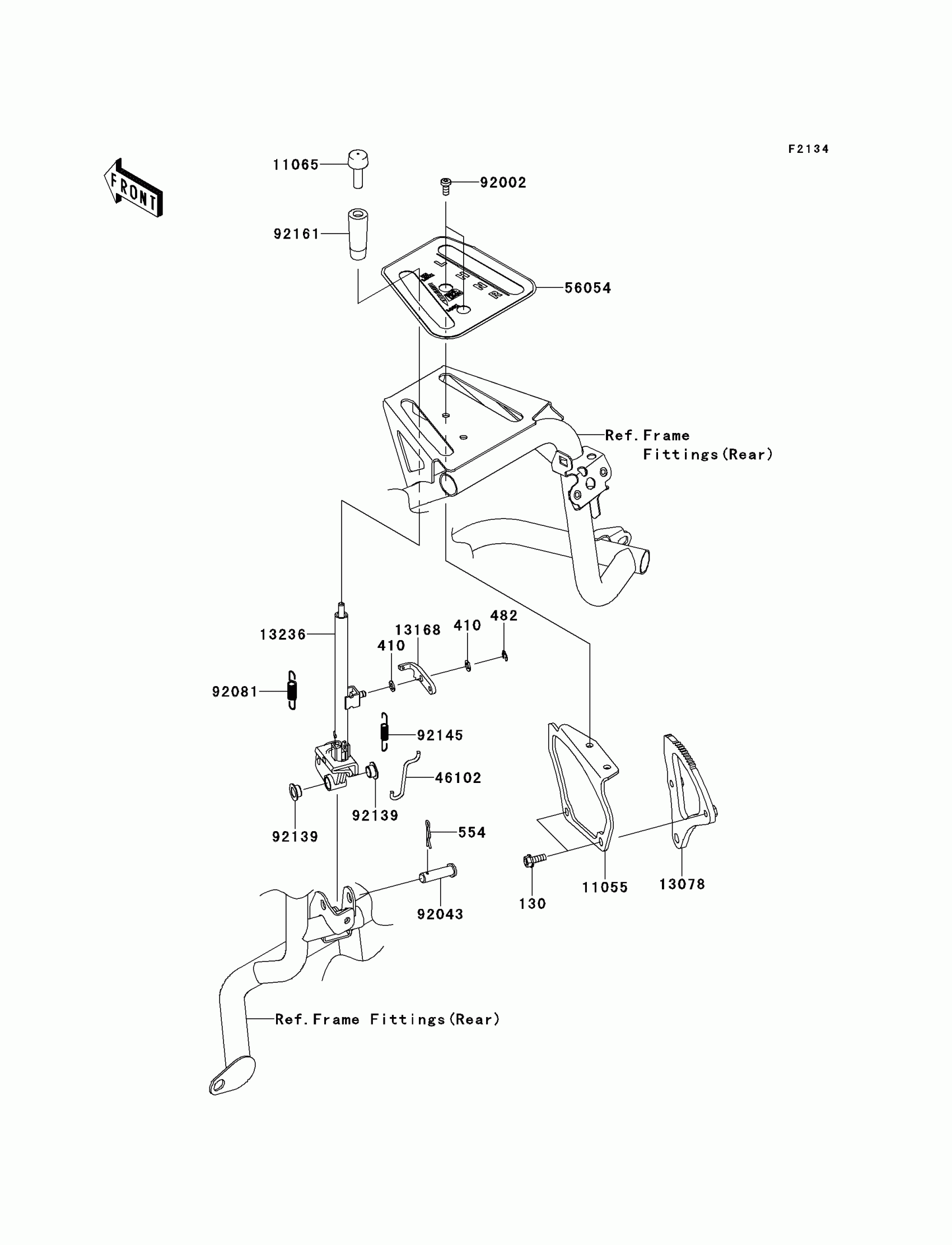

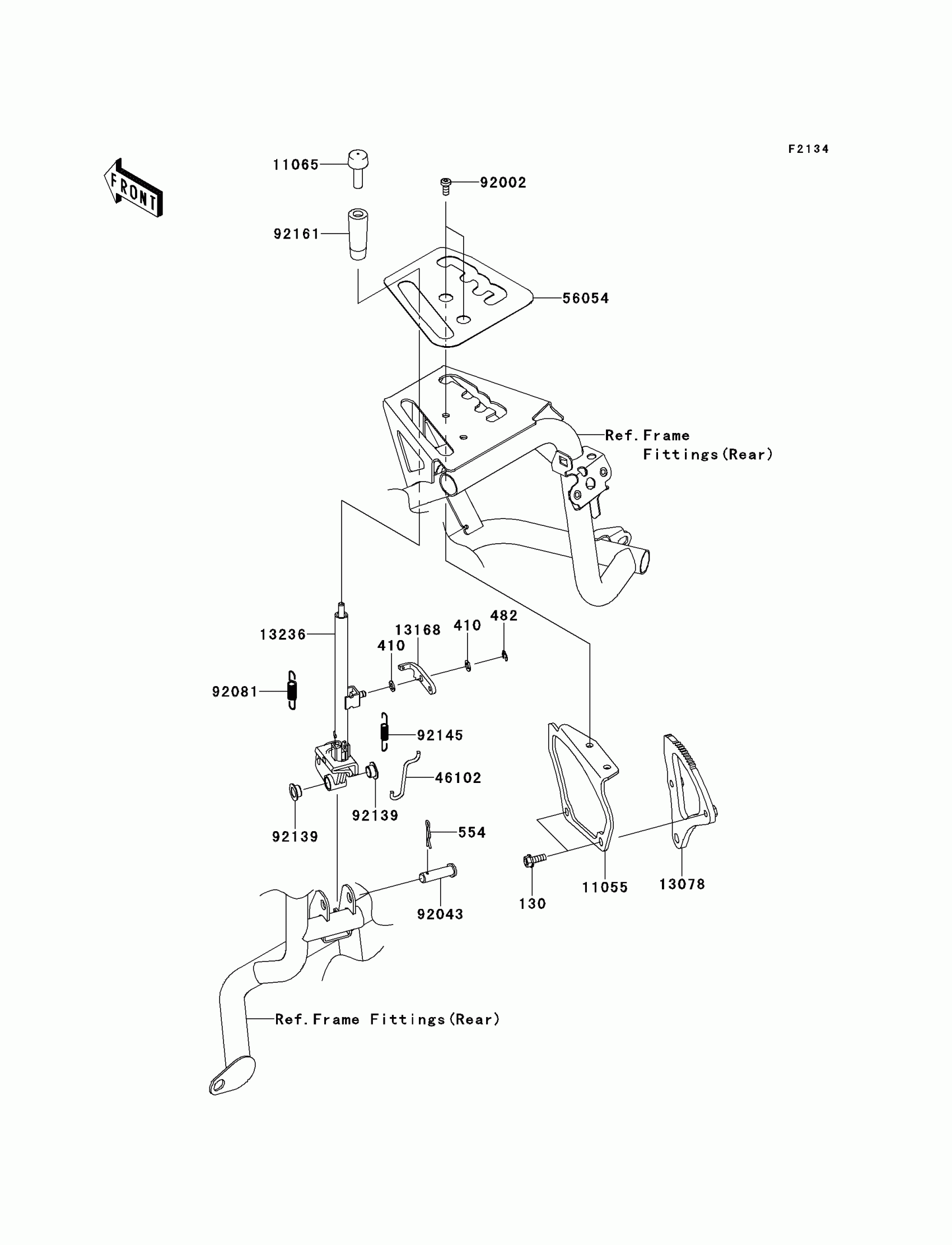

Kawasaki TERYX® 750 FI 4x4 SPORT Shift Lever(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$0.97

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

482

CIRCLIP-TYPE-E

482EA5000

$1.04

554

PIN-SNAP,10MM

554DA1000

$0.73

11055

BRACKET

11055-0477

$49.98

11065

CAP

11065-0269

$2.78

13078

RATCHET

13078-0021

$89.67

13168

LEVER

13168-0193

$16.20

13236

LEVER-COMP

13236-0188

$128.94

46102

ROD

46102-0131

$16.66

56054

MARK,DIFF LOCK

56054-0351

$87.80

92002

BOLT,6X14

92002-1700

$4.71

92043

PIN,FOOTRST STEP FIT

92043-1069

$5.42

92081

SPRING

92081-1023

$5.61

92139

BUSHING

92139-0230

$4.10

92145

SPRING

92145-0611

Unavailable

92161

DAMPER

92161-0616

$4.81
