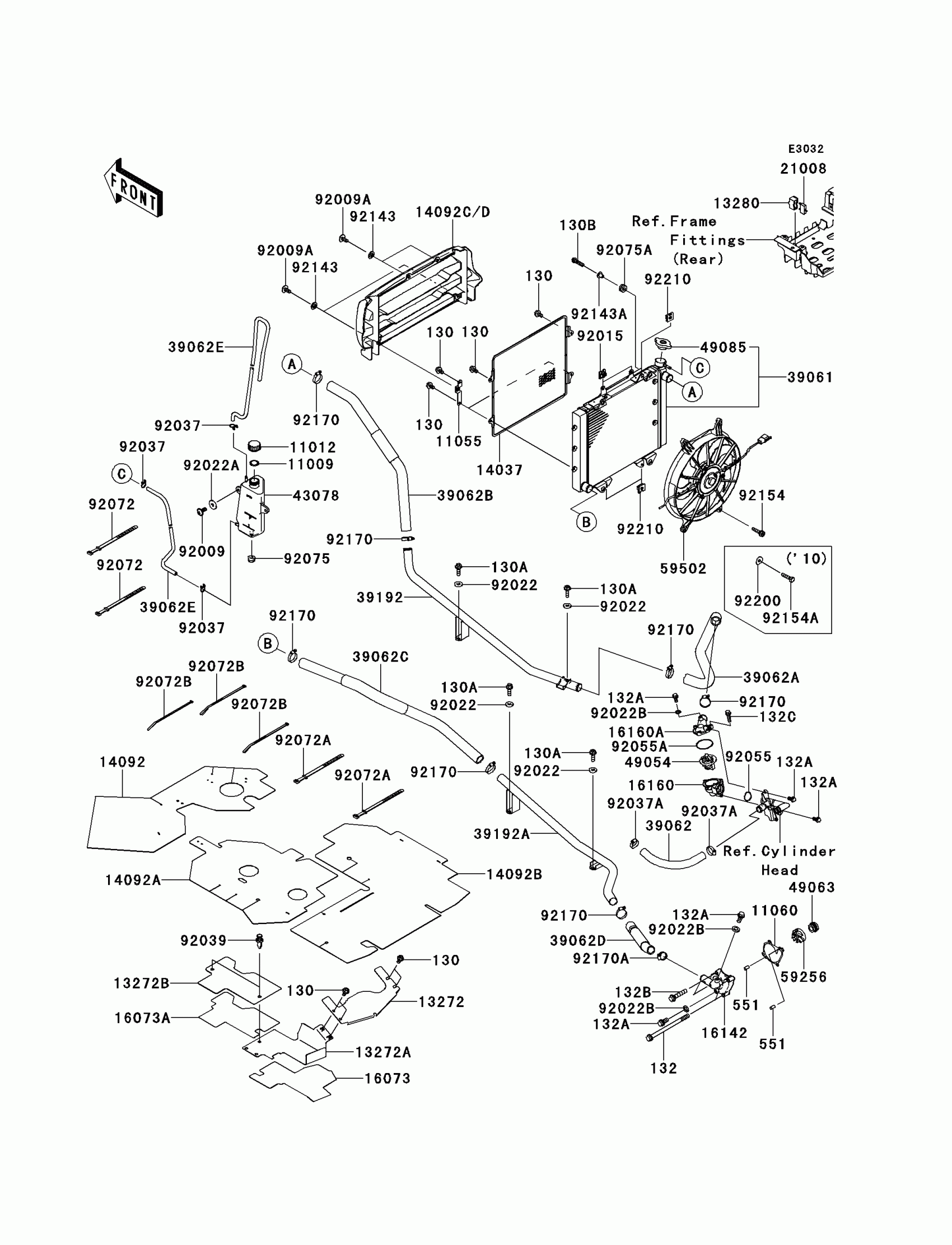

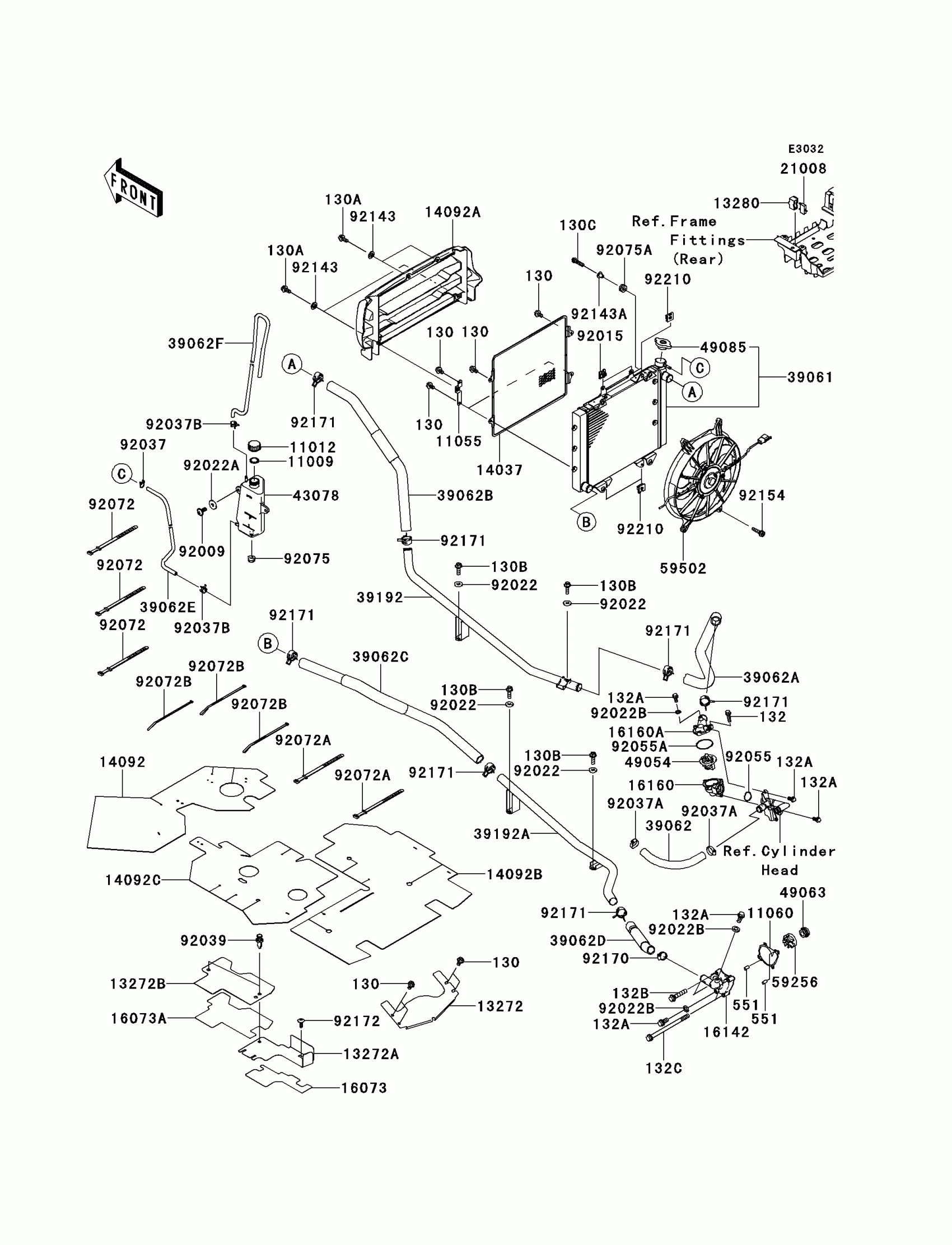

Kawasaki TERYX® 750 FI 4x4 SPORT Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11055
BRACKET,RAD. COVER
11055-1953
$16.81
11060
GASKET,WATER PUMP
11060-1964
$7.58
13272
PLATE
13272-0729
$42.71
13272A
PLATE
13272-1202
$8.88
13272B
PLATE
13272-1220
$31.08
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-0104
$116.29
14092
COVER
14092-0083
$48.26
14092A
COVER,RADIATOR,F.BLACK
14092-0086-6Z
$31.72
14092B
COVER
14092-0893
$48.26
14092C
COVER
14092-1015
$37.60
16073
INSULATOR
16073-0736
$7.58
16073A
INSULATOR
16073-0737
$12.31
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,LWR
16160-0189
$79.78
16160A
BODY,THERMOSTAT,UPP
16160-0225
$67.23
21008
BREAKER,RAD. FAN,12A
21008-0008
$29.57
39061
RADIATOR-ASSY
39061-0180
$455.41
39062
HOSE-COOLING,FR HEAD-THERMO
39062-0316
$12.10
39062A
HOSE-COOLING,THERMO-RH PIPE
39062-0317
$12.68
39062B
HOSE-COOLING,RH PIPE-RAD.
39062-0318
$31.74
39062C
HOSE-COOLING,RAD.-LH PIPE
39062-0319
$31.74
39062D
HOSE-COOLING,RAD.-W/P
39062-0320
$10.35
39062E
HOSE-COOLING,5.5X10.5X400
39062-0324
$11.04
39062F
HOSE-COOLING,5.5X10.5X1310
39062-0608
$18.31
39192
PIPE-WATER,RH
39192-0121
$69.27
39192A
PIPE-WATER,LH
39192-0122
$69.27
43078
RESERVOIR
43078-0041
$54.40
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0564
$345.58
92009
SCREW,6X16
92009-1621
Unavailable
92015
NUT
92015-1487
$4.80
92022
WASHER,6.5X16X2
92022-1342
$3.92
92022A
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92022B
WASHER,6.2X11X1
92022-304
$3.65
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X14
130BB0614
$2.49
130B
BOLT-FLANGED,6X20
130BB0620
$0.46
130C
BOLT-FLANGED,6X25
130BB0625
$2.80
132
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132B
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132C
BOLT-FLANGED-SMALL,6X90
132BD0690
$3.53
551
PIN-DOWEL,4X8
551A0408
$0.78
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92037B
CLAMP
92037-2113
$1.03
92039
RIVET
92039-1229
$1.19
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
92072
BAND,L=218
92072-032
$5.00
92072A
BAND,L=186
92072-056
$5.00
92072B
BAND,L=292.1
92072-3509
Unavailable
92075
DAMPER,RUBBER
92075-1123
$5.00
92075A
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1087
$4.31
92143A
COLLAR
92143-1353
$8.58
92154
BOLT
92154-0338
$11.14
92170
CLAMP
92170-1497
$16.83
92171
CLAMP,COOLING HOSE
92171-0060
$4.41
92172
SCREW,TAPPING,6X16
92172-0739
$0.85
92210
NUT
92210-1323
$4.18
