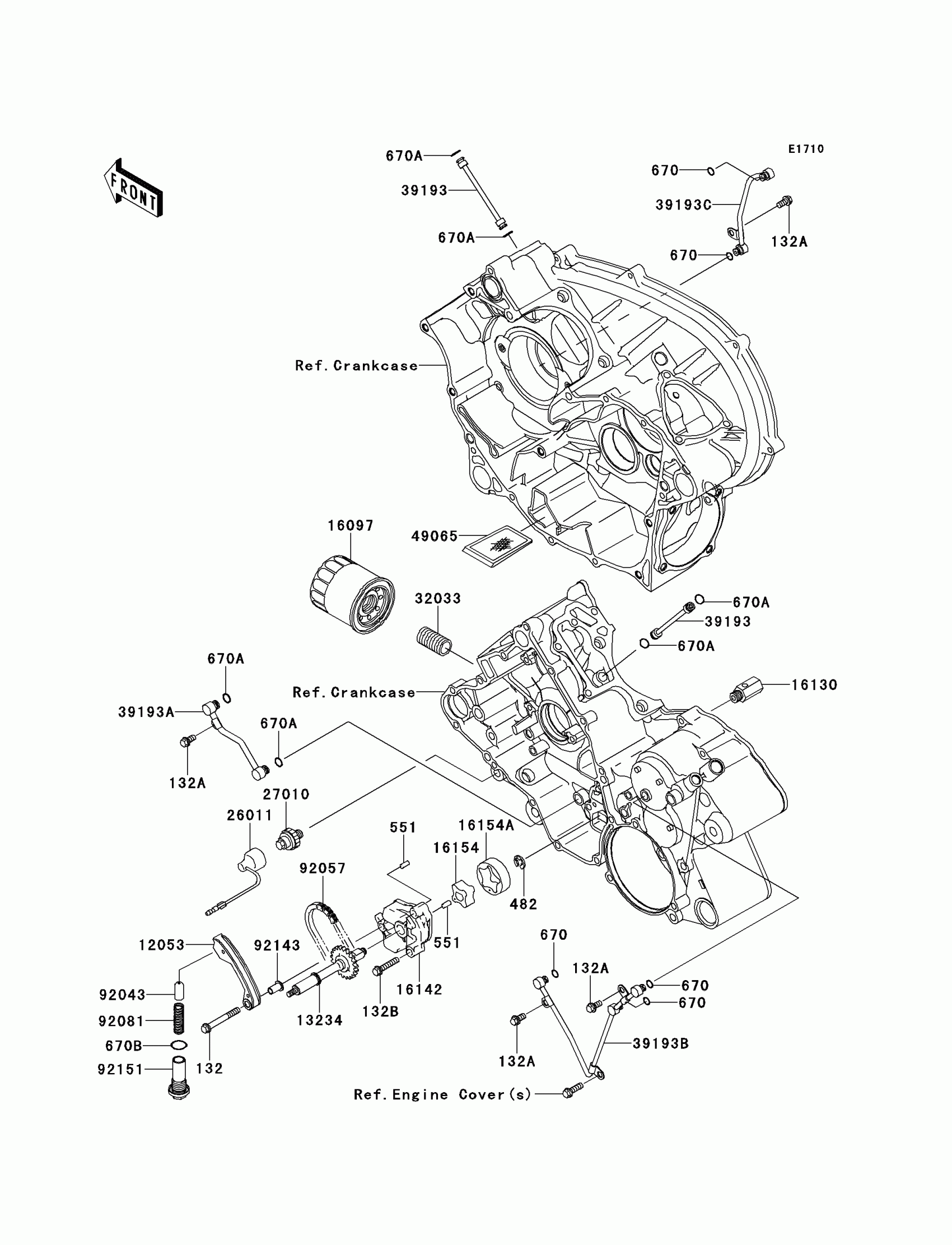

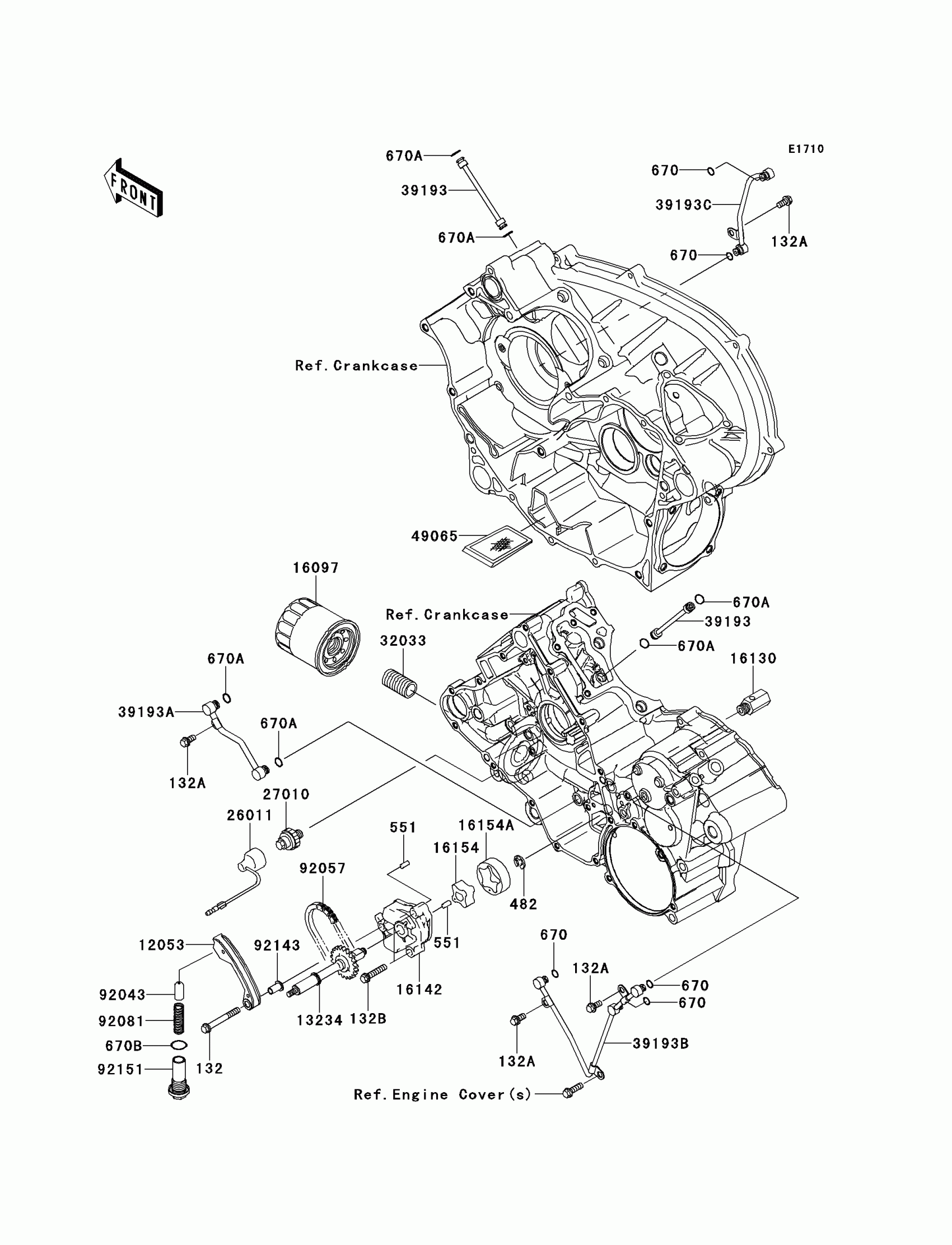

Kawasaki TERYX® 750 FI 4x4 SPORT Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.76

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

551

PIN-DOWEL,4X8

551A0408

$0.78

670

O RING

670D1505

$4.31

670A

O RING,7MM

670D1507

$1.70

670B

O RING,16MM

670D2016

$1.70

12053

GUIDE-CHAIN,SLACK

12053-1440

$49.52

13234

SHAFT-COMP,OIL PUMP

13234-1112

$65.18

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-1162

$38.18

16154

ROTOR-PUMP,INNER

16154-2059

$7.18

16154A

ROTOR-PUMP,OUTER

16154-2060

$10.32

26011

WIRE-LEAD

26011-1755

$21.99

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32033

PIPE,OIL FILTER

32033-1535

$12.96

39193

PIPE-OIL,CRANKCASE-HEAD

39193-0015

$30.76

39193A

PIPE-OIL,CRANKSHAFT

39193-1052

$56.47

39193B

PIPE-OIL,CRANKCASE,LH

39193-1053

$127.17

39193C

PIPE-OIL,CRANKCASE,RH

39193-1054

$59.03

49065

FILTER-OIL

49065-1086

$13.66

92043

92043-076

$11.71

92057

CHAIN,DID SCR-0409 SV

92057-0188

$32.81

92081

SPRING

92081-112

$6.16

92143

COLLAR

92143-1857

$3.21

92151

BOLT,16X41

92151-1781

$28.70
