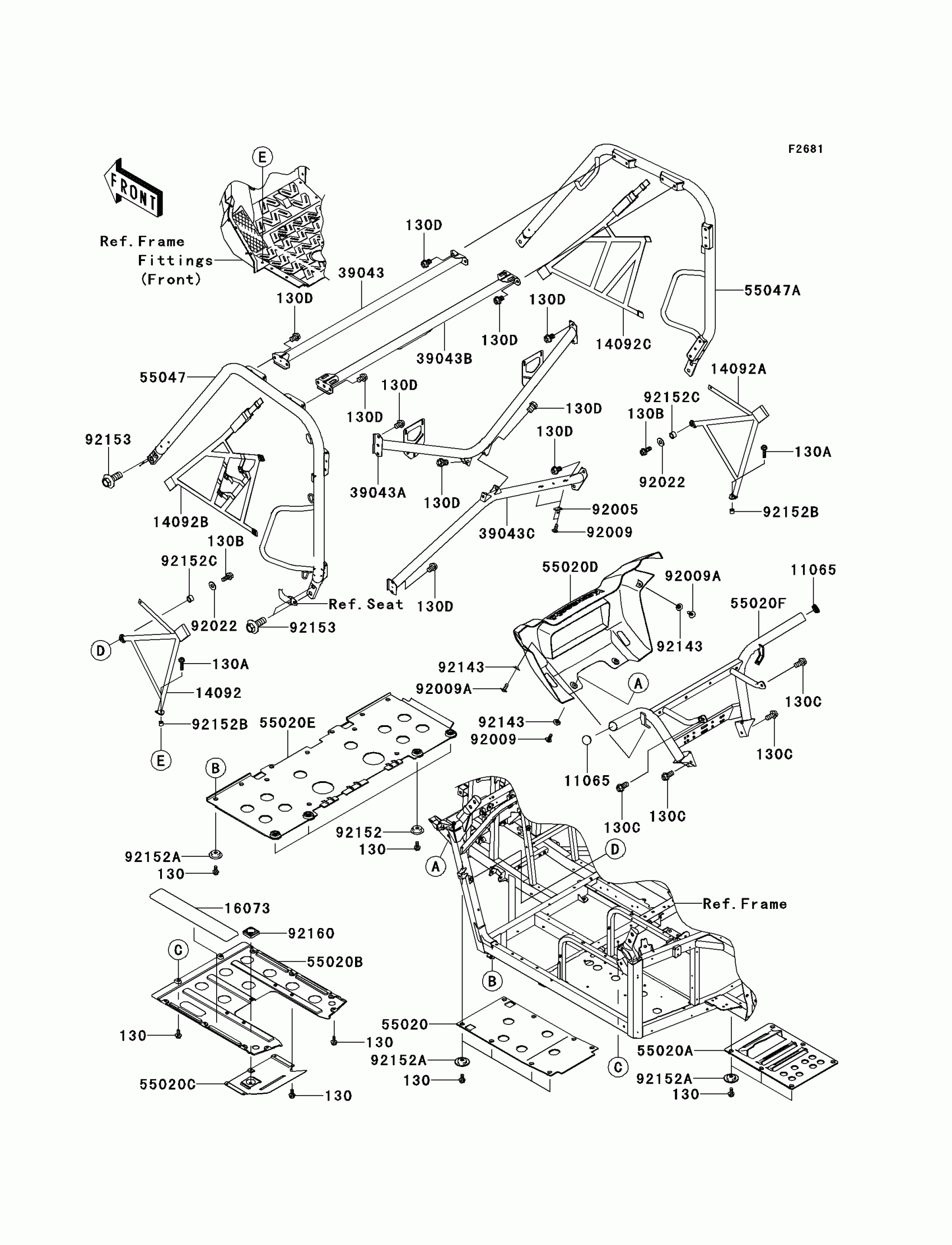

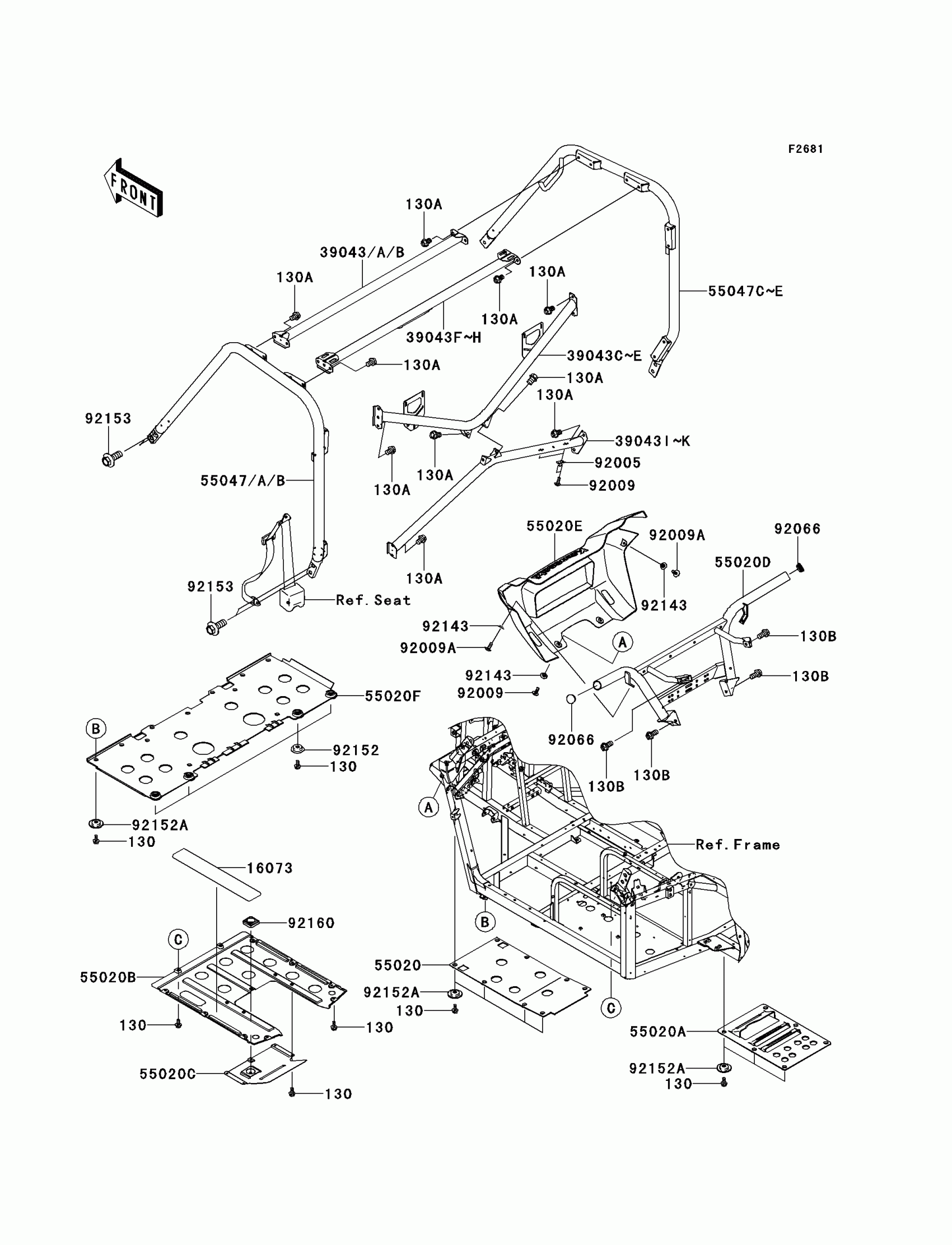

Kawasaki TERYX® 750 FI 4x4 SPORT Guards/Cab Frame Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,10X14

130CB1014

$2.71

130B

BOLT-FLANGED,10X20

130CB1020

$2.24

16073

INSULATOR,ENGINE GUARD

16073-0045

$4.86

39043

CROSSMEMBER-COMP,UPP,FR,RED

39043-0001-16I

$92.34

39043C

CROSSMEMBER-COMP,RR,UPP,RED

39043-0005-16I

$218.83

39043F

CROSSMEMBER-COMP,UPP,RR,RED

39043-0007-16I

$92.34

39043I

CROSSMEMBER-COMP,RR,LWR,RED

39043-0008-16I

$218.83

55020

GUARD,SKID,FR

55020-0301

$56.87

55020A

GUARD,SKID,RR

55020-0402

$35.26

55020B

GUARD,SKID,MIDDLE

55020-0437

$135.21

55020C

GUARD,ENGINE,SUB

55020-0438

$346.80

55020D

GUARD,FRONT PIPE,T.BLACK

55020-0494-388

Unavailable

55020E

GUARD,FRONT COVER

55020-0520

$116.72

55020F

GUARD,SKID,MIDDLE

55020-0522

$116.72

55047

BAR-COMP,LH,T.S.RED

55047-0021-16I

$236.35

55047C

BAR-COMP,RH,T.S.RED

55047-0022-16I

$236.35

92005

FITTING

92005-0077

$5.41

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92066

PLUG

92066-0114

$1.58

92143

COLLAR

92143-1087

$2.98

92152

COLLAR

92152-0512

$1.86

92152A

COLLAR

92152-0784

$1.54

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92160

DAMPER

92160-1772

$10.41
