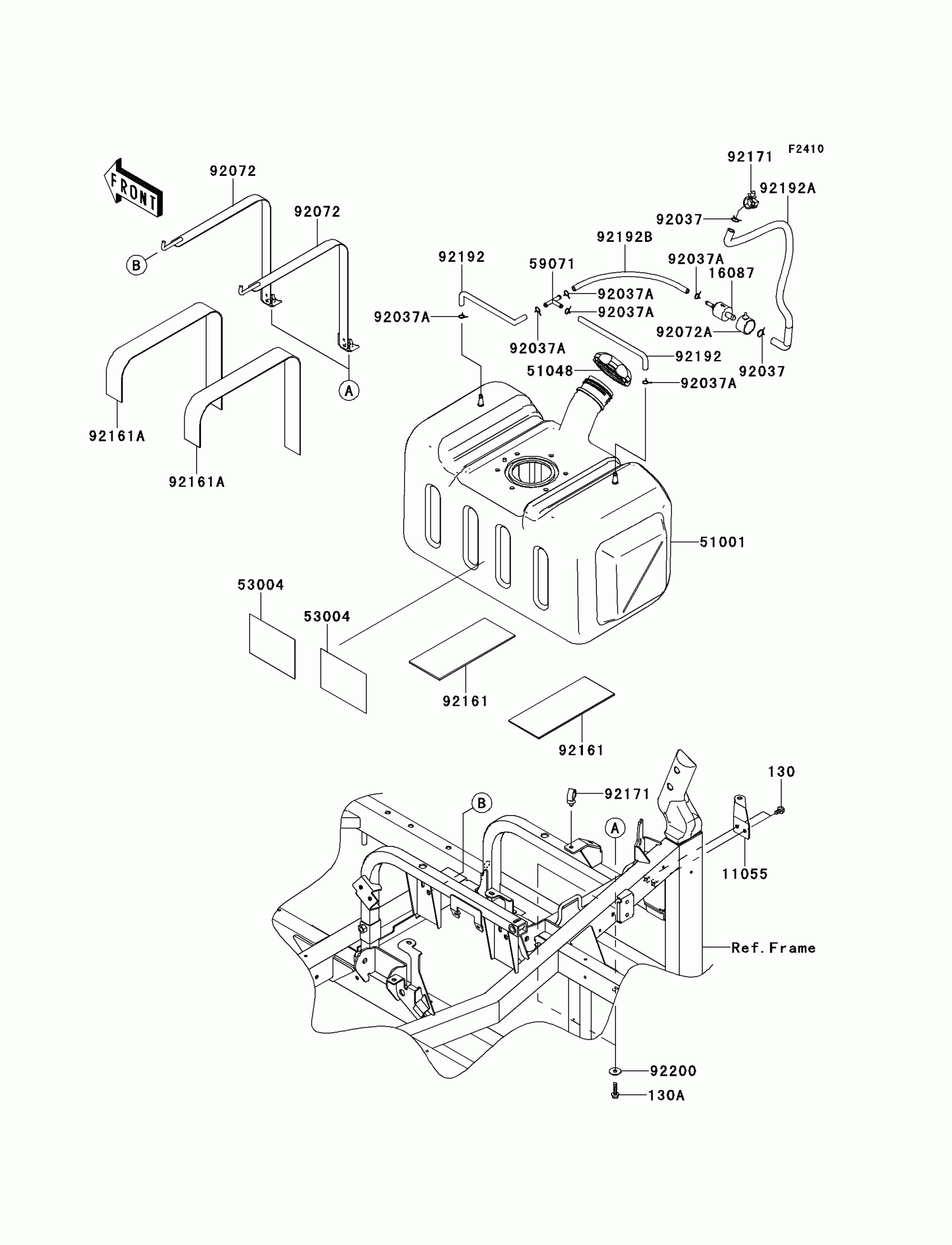

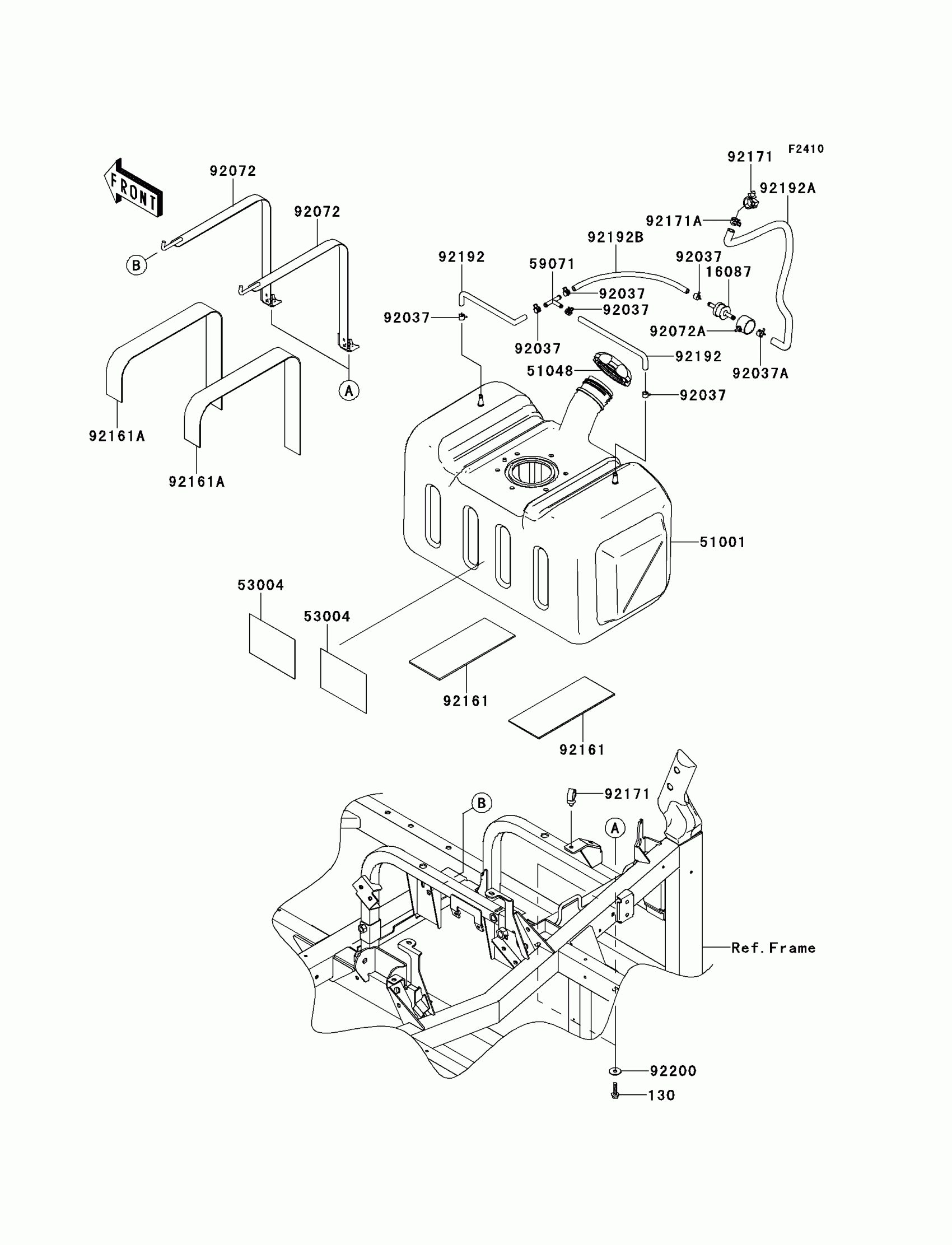

Kawasaki TERYX® 750 FI 4x4 SPORT Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$1.20

16087

VALVE-CHECK

16087-0703

$37.65

51001

TANK-COMP-FUEL

51001-0291

$276.69

51048

CAP-ASSY-TANK,FUEL

51048-0028

$48.58

53004

MAT,FUEL TANK

53004-0050

$7.73

59071

JOINT

59071-3705

$4.91

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP,TUBE

92037-1505

$4.76

92072

BAND,FUEL TANK

92072-0132

$20.55

92072A

BAND

92072-1438

$5.00

92161

DAMPER

92161-0743

Unavailable

92161A

DAMPER,FUEL TANK

92161-0794

$22.11

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,BREATHER

92192-0773

$5.48

92192A

TUBE,BREATHER,8X13X585/41

92192-1172

$15.78

92192B

TUBE,BREATHER,5X9X220

92192-1199

$4.06

92200

WASHER,6.5X22X1.6

92200-1087

$3.94
