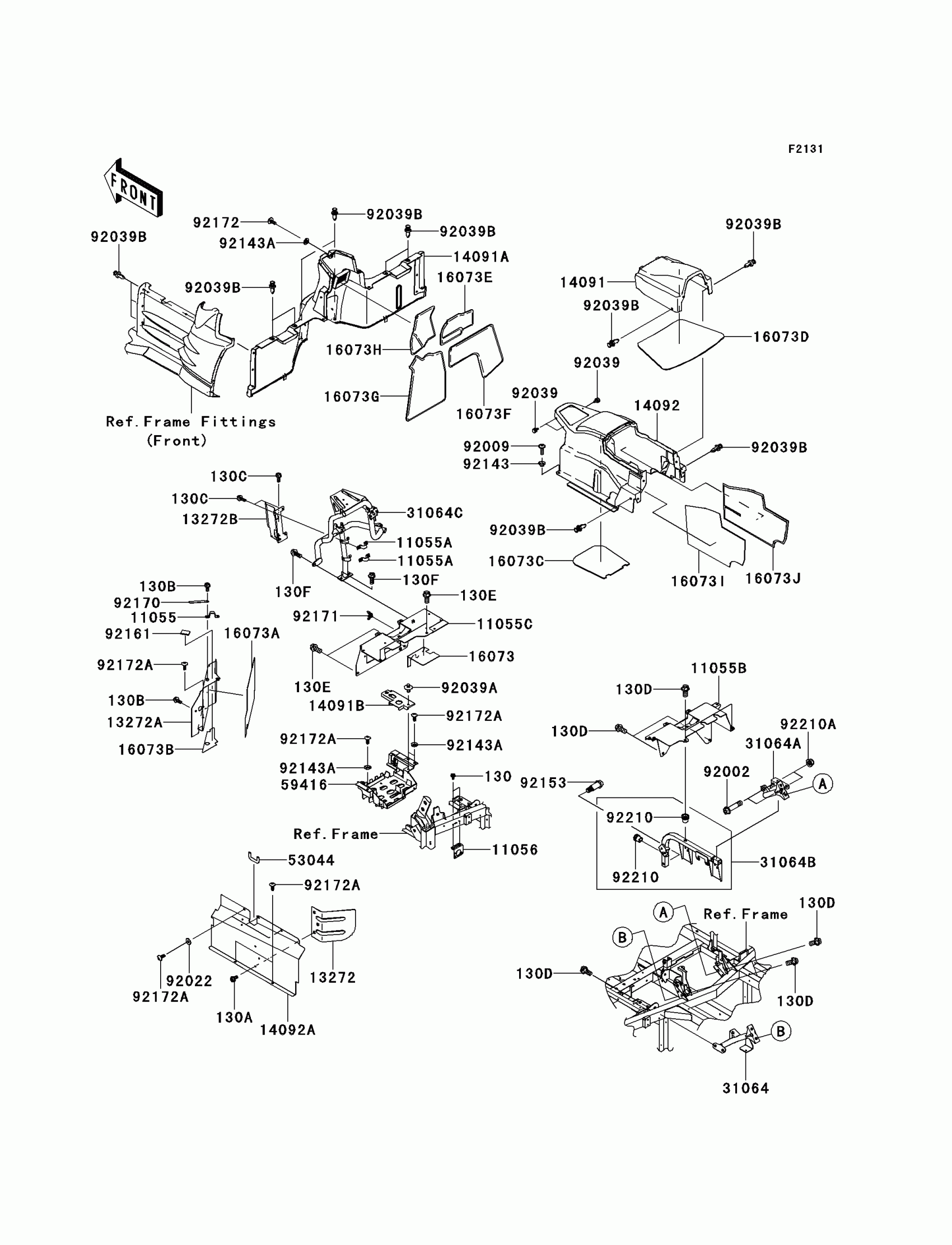

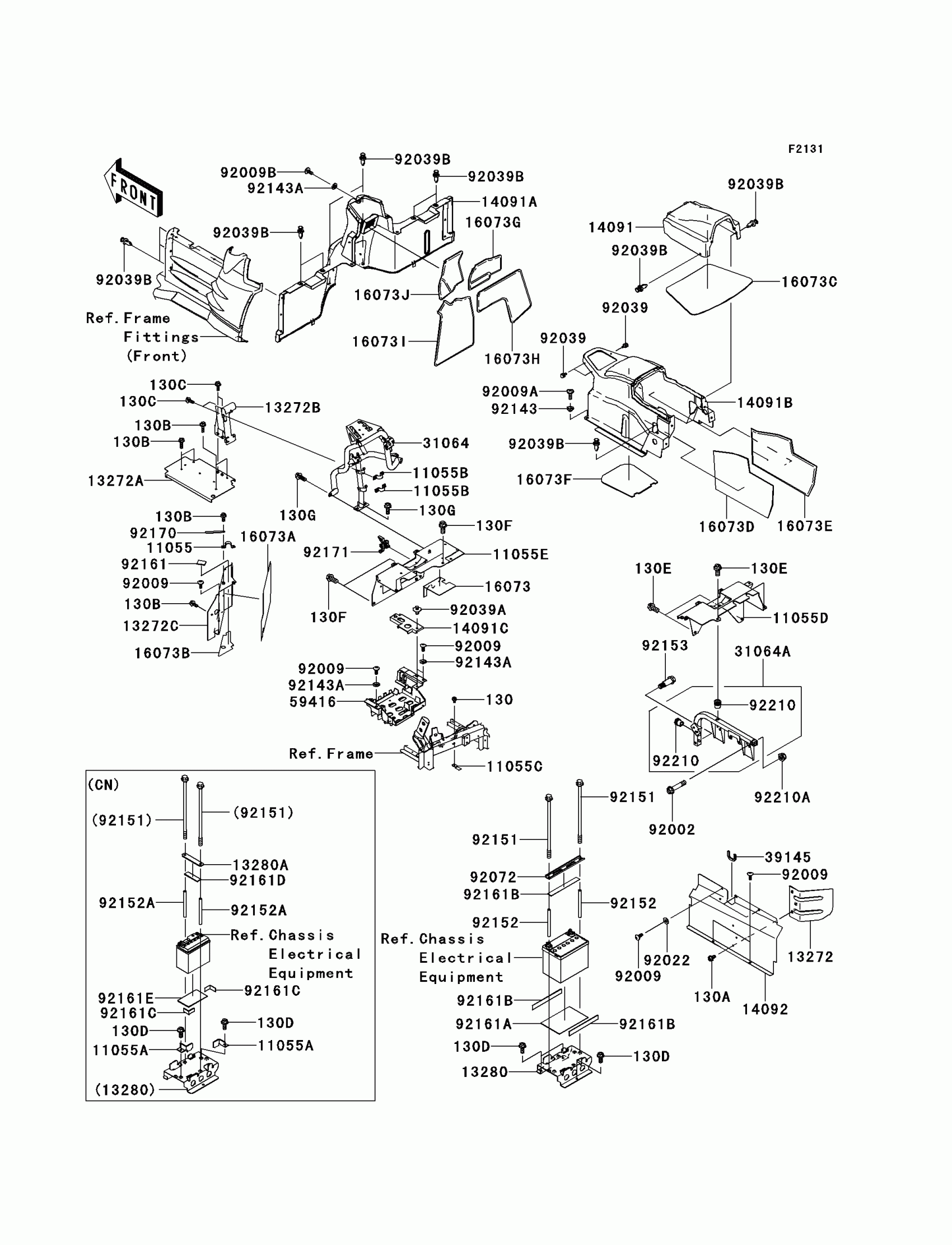

Kawasaki TERYX® 750 FI 4x4 SPORT Frame Fittings(Rear) Diagram

#

Description
Price

11055

BRACKET

11055-0419

$2.25

11055B

BRACKET

11055-0896

$3.86

11055C

BRACKET

11055-1384

$7.17

11055D

BRACKET,SEAT LOCK PLATE,RH

11055-1409

$52.50

11055E

BRACKET,SEAT LOCK PLATE,LH

11055-1921

$52.50

13272

PLATE

13272-0318

$8.14

13272A

PLATE,TUNNEL PLATE

13272-0421

$48.12

13272B

PLATE

13272-0434

$31.29

13272C

PLATE,HEAT GUARD

13272-0731

$44.95

13280

HOLDER,BATTERY

13280-0361

$17.49

14091

COVER,CONSOLE CENTER,F.BLACK

14091-0975-6Z

Unavailable

14091A

COVER,SEAT,F.BLACK

14091-0982-6Z

$75.55

14091B

COVER,CONSOLE CENTER,F.BLACK

14091-1724-6Z

Unavailable

14091C

COVER,ELECTRIC

14091-1761

$22.80

14092

COVER,HEAT

14092-0051

$37.04

16073

INSULATOR,SEAT BRACKET

16073-0097

$7.80

16073A

INSULATOR,EXHAUST PIPE

16073-0112

$18.61

16073B

INSULATOR,EXHAUST PIPE

16073-0113

$4.76

16073C

INSULATOR,A/C,UPP

16073-0115

$59.97

16073D

INSULATOR,CONSOLE,LH

16073-0116

$63.76

16073E

INSULATOR,CONSOLE,RH

16073-0117

$59.40

16073F

INSULATOR,CONSOLE,UPP

16073-0118

$32.91

16073G

INSULATOR,UPP

16073-0119

$27.75

16073H

INSULATOR,RH

16073-0120

$55.01

16073I

INSULATOR,LH,LWR

16073-0121

$55.01

16073J

INSULATOR,LH,UPP

16073-0122

$24.54

31064

PIPE-COMP,SHIFT

31064-0193

$143.07

31064A

PIPE-COMP,SEAT RAIL

31064-0201

Unavailable

39145

TRIM-SEAL,L=120

39145-0040

Unavailable

59416

CASE-ELECTRIC

59416-0018

$32.47

92002

BOLT,FLANGED,10X46

92002-1740

$7.56

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X22,BLACK

92009-1256

$1.96

92009B

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92039

RIVET

92039-0046

$2.98

130

BOLT-FLANGED,5X10

130BA0510

$1.27

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X14

130BA0614

$0.97

130C

BOLT-FLANGED,6X16

130BA0616

$0.97

130E

BOLT-FLANGED,10X20

130BA1020

$2.68

130F

BOLT-FLANGED,10X20

130BB1020

$4.50

130G

BOLT-FLANGED,8X20

130CA0820

$1.27

92039A

RIVET

92039-0086

$4.18

92039B

RIVET

92039-1229

$0.80

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92151

BOLT,8X177

92151-1788

$18.03

92153

BOLT,FLANGED,10X38

92153-1742

$10.39

92161

DAMPER

92161-0273

$1.32

92170

CLAMP

92170-1925

$1.98

92171

CLAMP

92171-0453

$3.12

92210

NUT,10MM

92210-0573

$10.86

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

11055A

BRACKET

11055-0433

$3.31

13280A

HOLDER,BATTERY

13280-7505

$6.64

130D

BOLT-FLANGED,8X18

130BA0818

$1.81

130D

BOLT-FLANGED,8X18

130BA0818

$1.81

92072

BAND,BATTERY,UPP

92072-0128

$15.80

92152

COLLAR,10.22X12.7X158.8

92152-0794

$16.68

92152A

COLLAR,10.2X12.7X150.6

92152-0841

$16.68

92161A

DAMPER

92161-0578

$3.80

92161B

DAMPER

92161-0579

$2.07

92161C

DAMPER

92161-0580

$2.00

92161D

DAMPER,88X25X4

92161-0844

Unavailable

92161E

DAMPER,130X74X4

92161-0846

Unavailable
