- TERYX® 750 FI 4x4 SPORT
Drive Shaft-Front(4/4)

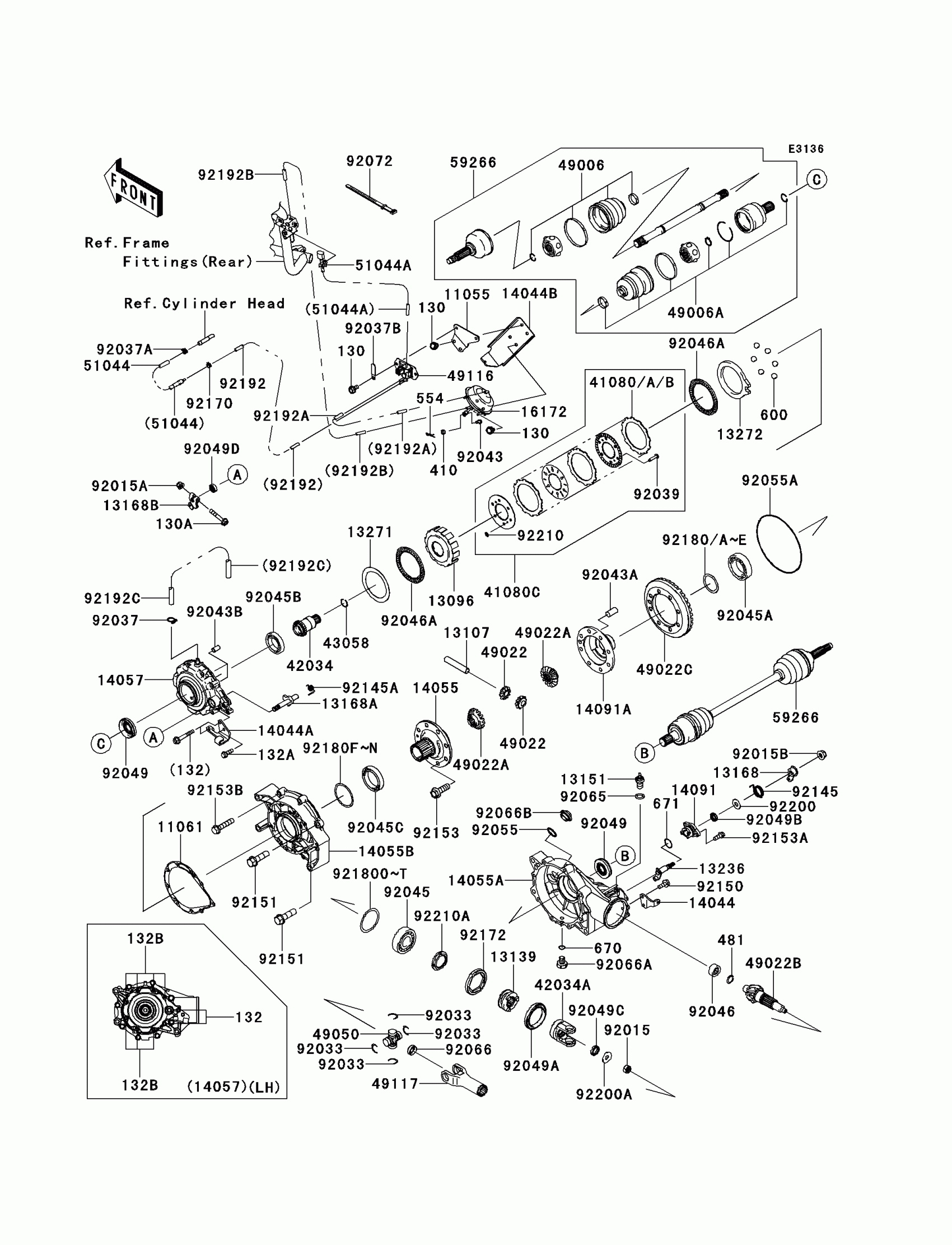

Kawasaki TERYX® 750 FI 4x4 SPORT Drive Shaft-Front(4/4) Diagram
#
11055
BRACKET
11055-0422
$5.63
11061
GASKET,LH CASE
11061-0272
$33.35
13096
HOUSING-CLUTCH
13096-0018
$48.40
13107
SHAFT,CROSS
13107-0149
$24.14
13139
SHIFTER,2/4WD ACTUATOR
13139-0015
$107.94
13151
SWITCH-COMP,NEUTRAL
13151-1080
$10.38
13168
LEVER,OUTER
13168-0139
$29.89
13168A
LEVER,DIFF-LOCK,INNER
13168-0141
$44.83
13168B
LEVER,DIFF-LOCK
13168-0173
$22.20
13236
LEVER-COMP,INNER
13236-0164
$40.83
13271
PLATE,DISC
13271-1503
$15.39
13272
PLATE,CAM
13272-0858
$52.55
14044
HOLDER-CABLE
14044-0029
$49.03
14044A
HOLDER-CABLE,DIFF-LOCK
14044-0036
$33.35
14044B
HOLDER-CABLE
14044-0042
$32.47
14055
CASE-GEAR,CROSS
14055-0033
$191.01
14055A
CASE-GEAR,RH
14055-0038
$162.30
14055B
CASE-GEAR,MDL
14055-0043
$148.15
14057
CASE-COMP-GEAR,LH
14057-0005
Unavailable
14091
COVER
14091-0680
$39.28
14091A
COVER,CROSS CASE
14091-0867
$163.76
16172
ACTUATOR
16172-0014
$276.43
41080
DISC,T=1.20
41080-1499
Unavailable
41080A
DISC,T=1.80
41080-1500
Unavailable
41080B
DISC,T=2.40
41080-1501
Unavailable
41080C
DISC ASSY,DIFFERENTIAL LOCK
41080-1512
Unavailable
42034
COUPLING
42034-0043
Unavailable
42034A
COUPLING
42034-0054
$214.54
43058
RING
43058-0018
$2.58
49006
BOOT,UJ
49006-0092
$99.34
49006A
BOOT,DOJ
49006-0093
$99.34
49022
GEAR-BEVEL,10T
49022-0018
Unavailable
49022A
GEAR-BEVEL,16T
49022-0047
$162.07
49022B
GEAR-BEVEL,8T
49022-0063
$453.69
49022C
GEAR-BEVEL,35T
49022-0064
$453.69
49050
SPIDER
49050-1075
$82.24
49116
VALVE-ASSY
49116-0024
$108.09
49117
YOKE,14T
49117-0040
$130.35
51044
TUBE-ASSY
51044-0053
$66.08
51044A
TUBE-ASSY,BREATHER
51044-0056
$33.04
59266
JOINT-BALL
59266-0037
$686.33
92015
NUT,LOCK,12MM,BLACK
92015-1190
$7.34
92015A
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015B
NUT,8MM
92015-1432
$6.57
92033
RING-SNAP
92033-1030
$4.14
92037
CLAMP-HOSE
92037-1104
$1.45
92037A
CLAMP,TUBE
92037-1461
$3.88
92037B
CLAMP,L=45
92037-1539
$5.00
92039
RIVET,DISC
92039-1258
$3.39
92043
PIN
92043-0121
$8.12
92043A
PIN,10X20
92043-0142
$3.90
92043B
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,6306A6
92045-0068
$29.50
92045A
BEARING-BALL,#6009
92045-1015
$35.50
92045B
BEARING-BALL,16007
92045-1230
$30.12
92045C
BEARING-BALL,6910
92045-1394
$50.18
92046
BEARING-NEEDLE,AJ501907
92046-0025
$35.70
92046A
BEARING-NEEDLE,AK1116
92046-1286
$54.92
92049
SEAL-OIL,SDD7 25X57X7 HS
92049-0029
$11.95
92049A
SEAL-OIL,55X77X9
92049-0090
$15.94
92049B
SEAL-OIL,TC14245
92049-1520
$13.87
92049C
SEAL-OIL,KICK PEDAL
92049-1523
$13.39
92049D
SEAL-OIL,TC 12X22X7
92049-1550
$5.00
92055
RING-O
92055-0122
$3.90
92055A
RING-O,169.3X3.1
92055-0123
$14.26
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-0027
$7.69
92066A
PLUG,DRAIN,10X12
92066-0085
$4.05
92066B
PLUG
92066-1303
$12.96
92072
BAND,L=186
92072-056
$5.00
92145
SPRING,RETURN
92145-0445
$5.86
92145A
SPRING,DIFF-LOCK LEVER
92145-0525
$4.01
92150
BOLT,FLANGED,6X16
92150-1394
$3.98
92151
BOLT,10X35
92151-1909
$3.26
92153
BOLT,FLANGED,10X30
92153-1728
$3.55
92153A
BOLT,FLANGED-SMALL,6X16
92153-1729
$2.15
92153B
BOLT,8X40
92153-1730
$3.55
92170
CLAMP
92170-2042
$1.30
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X35
130BA0635
$0.94
132
BOLT-FLANGED-SMALL,6X40
132BB0640
$4.80
132A
BOLT-FLANGED-SMALL,6X18
132BD0618
$3.89
132B
BOLT-FLANGED-SMALL,6X35
132BD0635
$4.12
410
WASHER-PLAIN-SMALL,4MM
410AA0400
$0.49
481
CIRCLIP-TYPE-C,32MM
481J3200
$2.68
554
PIN-SNAP
554DA0400
$3.65
600
BALL-STEEL,11/32"
600A1100
$0.64
670
O RING,10MM
670B2010
$1.50
92172
SCREW,SET,75X10
92172-0371
$46.79
92180
SHIM,45.3X57X0.8
92180-0259
Unavailable
92180A
SHIM,45.3X57X0.15
92180-0260
Unavailable
92180B
SHIM,45.3X57X0.2
92180-0261
Unavailable
92180C
SHIM,45.3X57X1.2
92180-0262
Unavailable
92180D
SHIM,T=1.0
92180-1205
Unavailable
92180E
SHIM,T=0.5
92180-1207
Unavailable
92180F
SHIM,62X71X0.15
92180-1390
Unavailable
92180G
SHIM,62X71X0.20
92180-1391
Unavailable
92180H
SHIM,62X71X0.50
92180-1392
Unavailable
92180I
SHIM,62X71X0.70
92180-1393
Unavailable
92180J
SHIM,62X71X0.80
92180-1394
Unavailable
92180K
SHIM,62X71X0.90
92180-1395
Unavailable
92180L
SHIM,62X71X1.00
92180-1396
Unavailable
92180M
SHIM,62X71X1.10
92180-1397
Unavailable
92180N
SHIM,62X71X1.20
92180-1398
Unavailable
92180O
SHIM,60X72X0.15
92180-1423
Unavailable
92180P
SHIM,60X72X0.20
92180-1424
Unavailable
92180Q
SHIM,60X72X0.50
92180-1425
Unavailable
92180R
SHIM,60X72X0.80
92180-1426
Unavailable
92180S
SHIM,60X72X1.00
92180-1427
Unavailable
92180T
SHIM,60X72X1.20
92180-1428
Unavailable
92192
TUBE,3X7X350
92192-0622
$5.86
92192A
TUBE,3X7X100
92192-0623
$4.05
92192B
TUBE,3X7X480
92192-0637
$8.05
92192C
TUBE,7X12X760
92192-0716
$25.81
92200
WASHER,11.8X29X1.2
92200-0335
$4.09
92200A
WASHER,12X32X2.5
92200-0336
$4.09
92210
NUT,DISC
92210-1255
$1.34
92210A
NUT,30MM
92210-1294
$40.82
671
O RING,25MM
671B2525
$5.00
