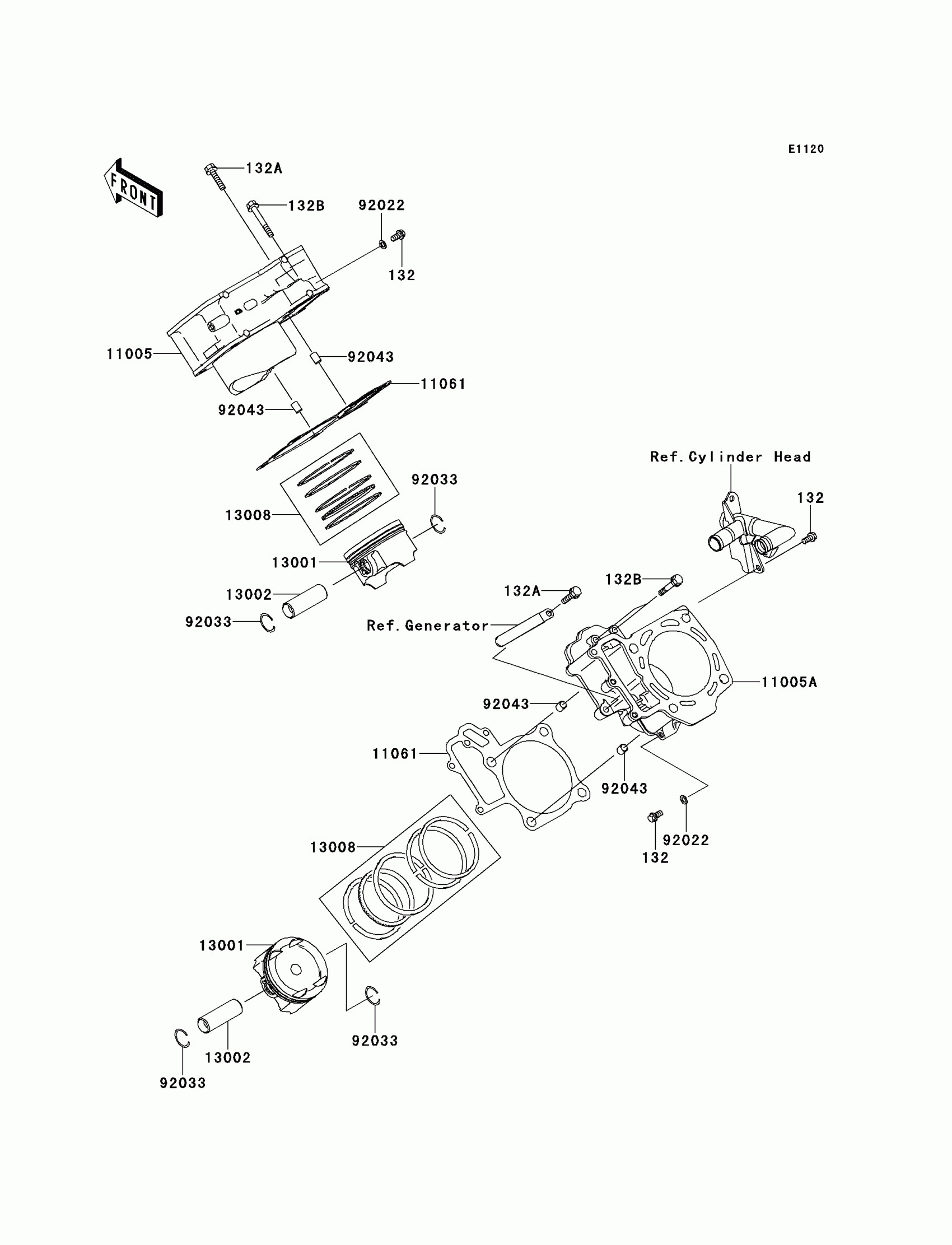

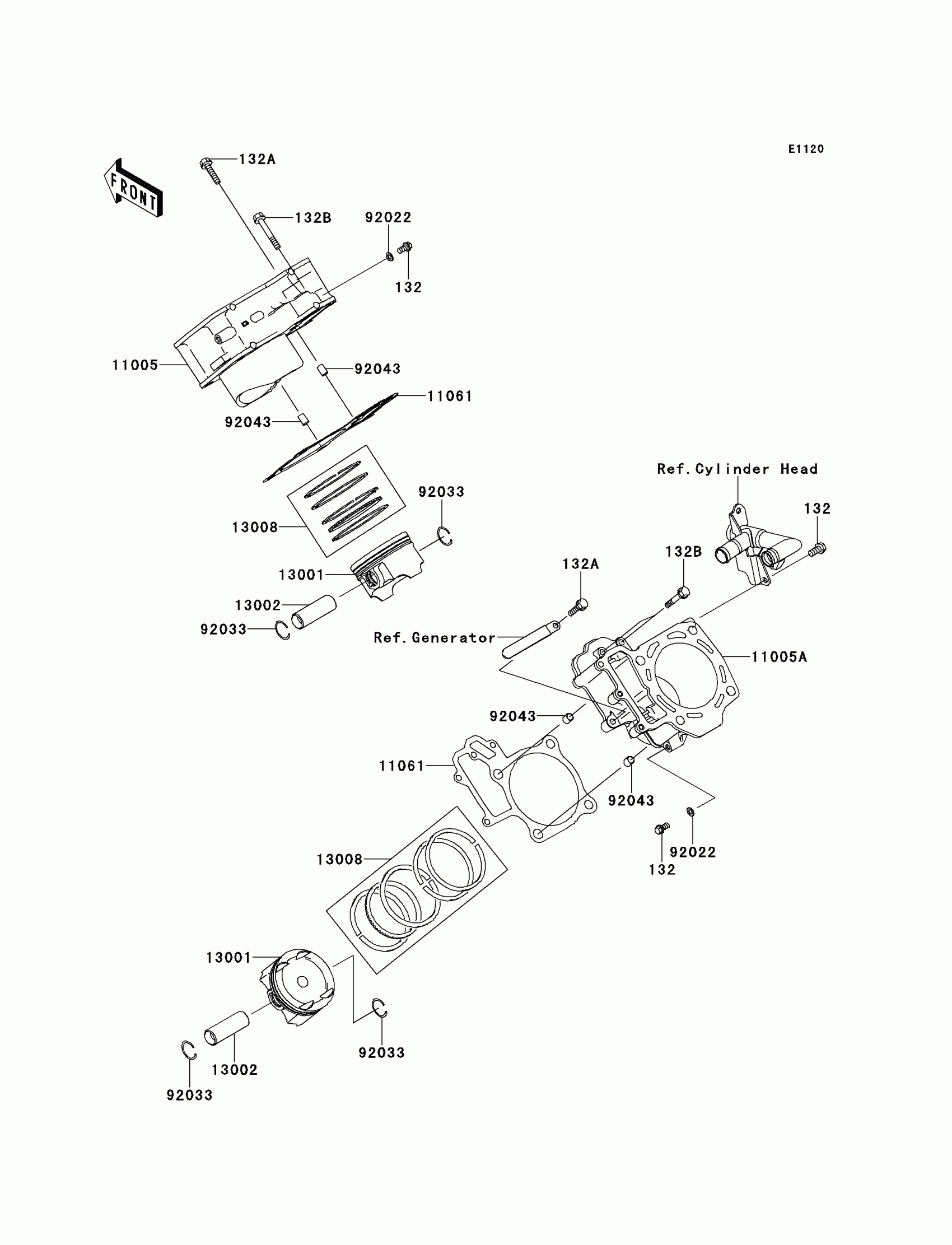

Kawasaki TERYX® 750 FI 4x4 SPORT Cylinder/Piston(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132A

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132B

BOLT-FLANGED-SMALL,6X40

132BD0640

$5.25

11005

CYLINDER-ENGINE,FR

11005-0592

$578.32

11005A

CYLINDER-ENGINE,RR

11005-0593

$578.32

11061

GASKET,CYLINDER BASE

11061-0063

$19.45

13001

PISTON-ENGINE

13001-0718

$130.13

13002

PIN-PISTON

13002-1060

$22.21

13008

RING-SET-PISTON

13008-0042

$57.43

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1207

$2.38

92043

PIN,10.1X12X14

92043-4009

$6.22
