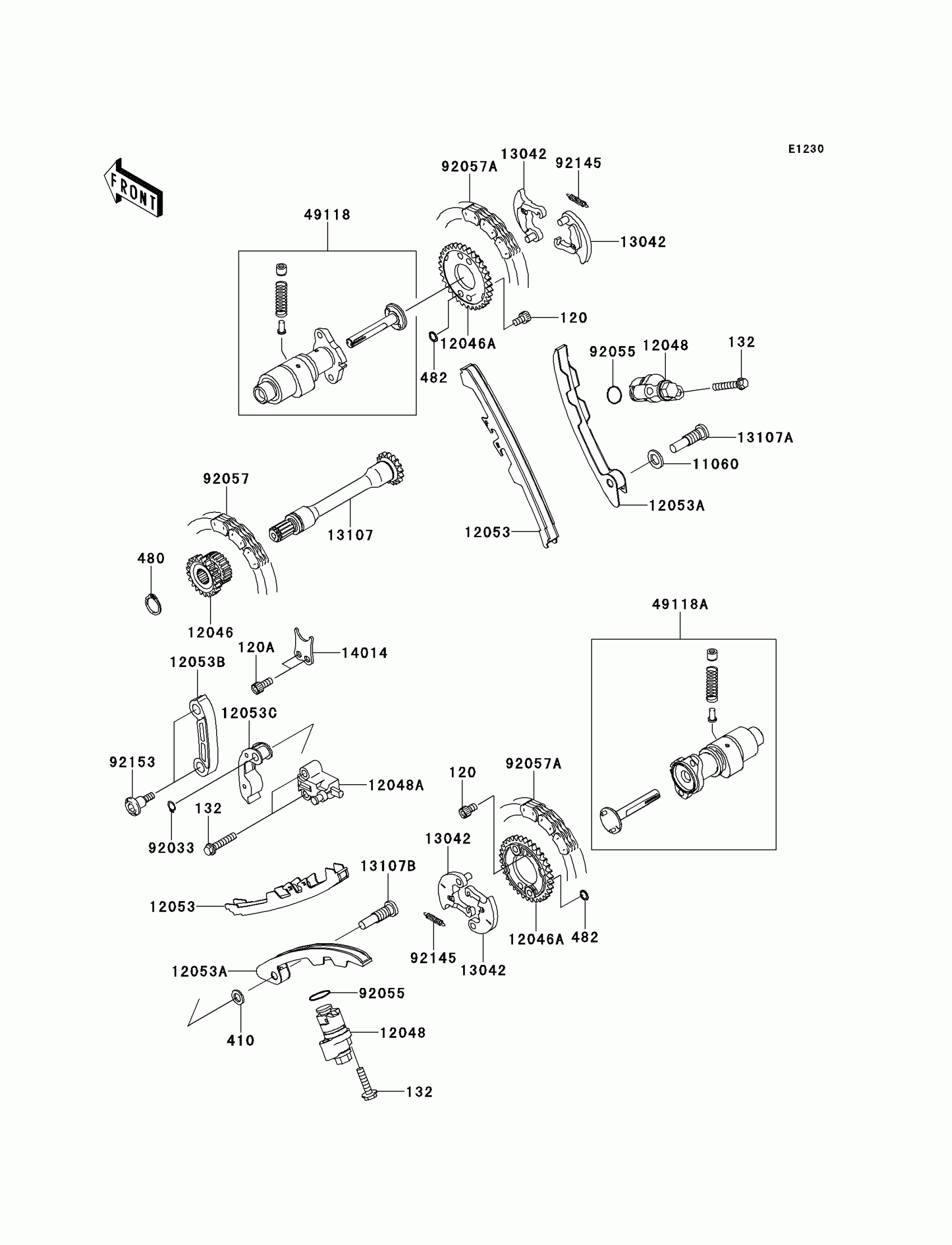

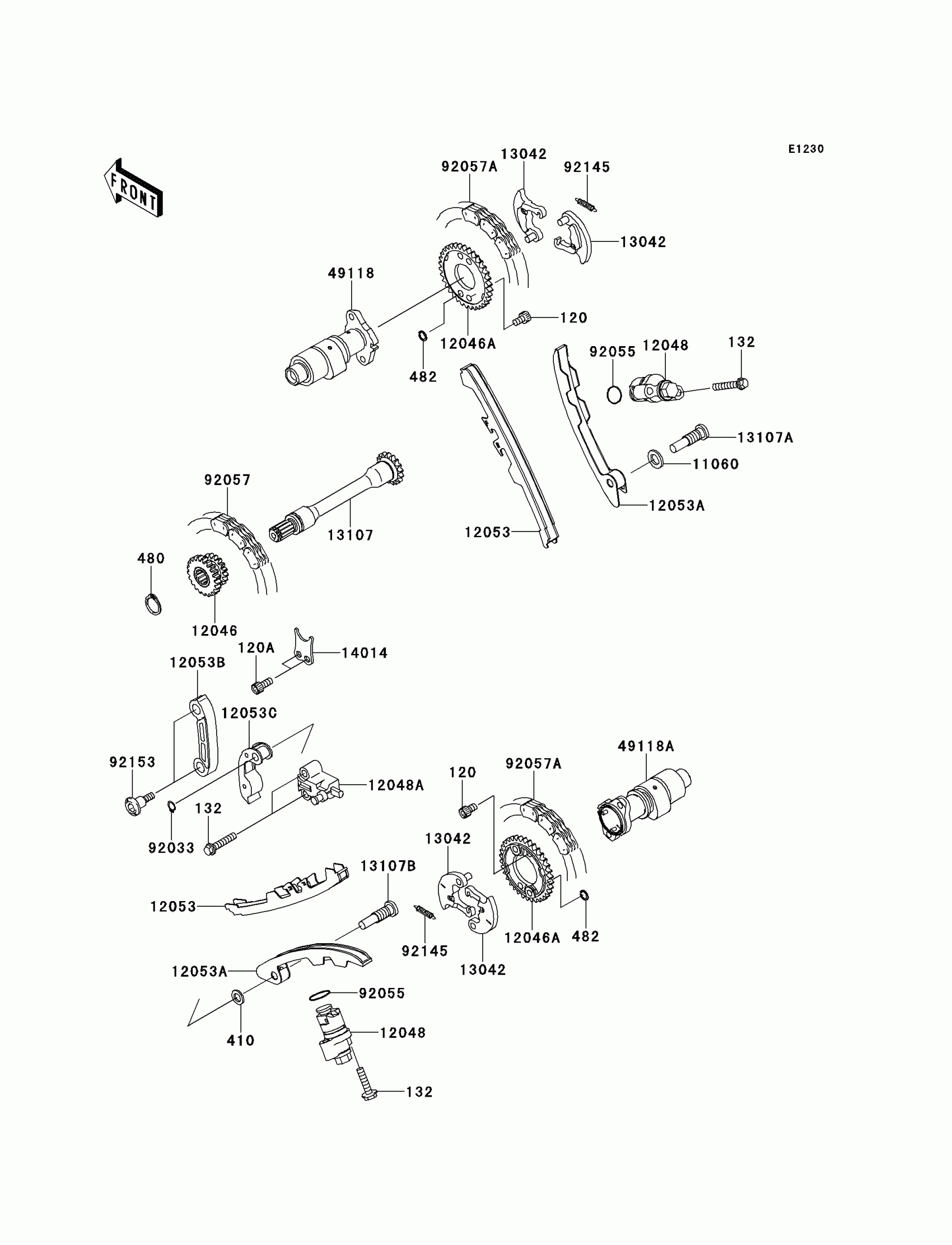

Kawasaki TERYX® 750 FI 4x4 SPORT Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X10

120CA0610

$1.71

120A

BOLT-SOCKET,6X14

120CB0614

$4.12

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

482

CIRCLIP-TYPE-E,5MM

482J5000

$3.41

11060

GASKET

11060-1966

$2.24

12046

SPROCKET,21T&17T

12046-0021

Unavailable

12046A

SPROCKET,CAMSHAFT,34T

12046-1203

$60.55

12048

TENSIONER-ASSY,CAM

12048-1176

$139.76

12048A

TENSIONER-ASSY,SECONDARY

12048-1177

$139.76

12053

GUIDE-CHAIN,CAMSHAFT,TENSION

12053-1441

$54.31

12053A

GUIDE-CHAIN,CAMSHAFT,SLACK

12053-1442

$57.43

12053B

GUIDE-CHAIN,TENSION

12053-1443

$27.26

12053C

GUIDE-CHAIN,SLACK

12053-1444

$49.52

13042

WEIGHT,DECOMP

13042-1141

$44.00

13107

SHAFT

13107-0029

$167.98

13107A

SHAFT,CHAIN GUIDE,FR

13107-1443

$10.90

13107B

SHAFT,CHAIN GUIDE,RR

13107-1444

$12.92

14014

PLATE-POSITION,DRIVE

14014-1148

Unavailable

49118

CAMSHAFT-COMP,FR

49118-0001

$220.22

49118A

CAMSHAFT-COMP,RR

49118-0002

$208.68

92033

RING-SNAP,8MM

92033-1039

$4.26

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,DID SCR-0412 SV

92057-0186

$29.58

92057A

CHAIN,DID SCR-0409 SV

92057-0187

$41.23

92145

SPRING,DECOMP

92145-1303

$3.02

92153

BOLT,SOCKET,6X24.5

92153-1200

$11.59
