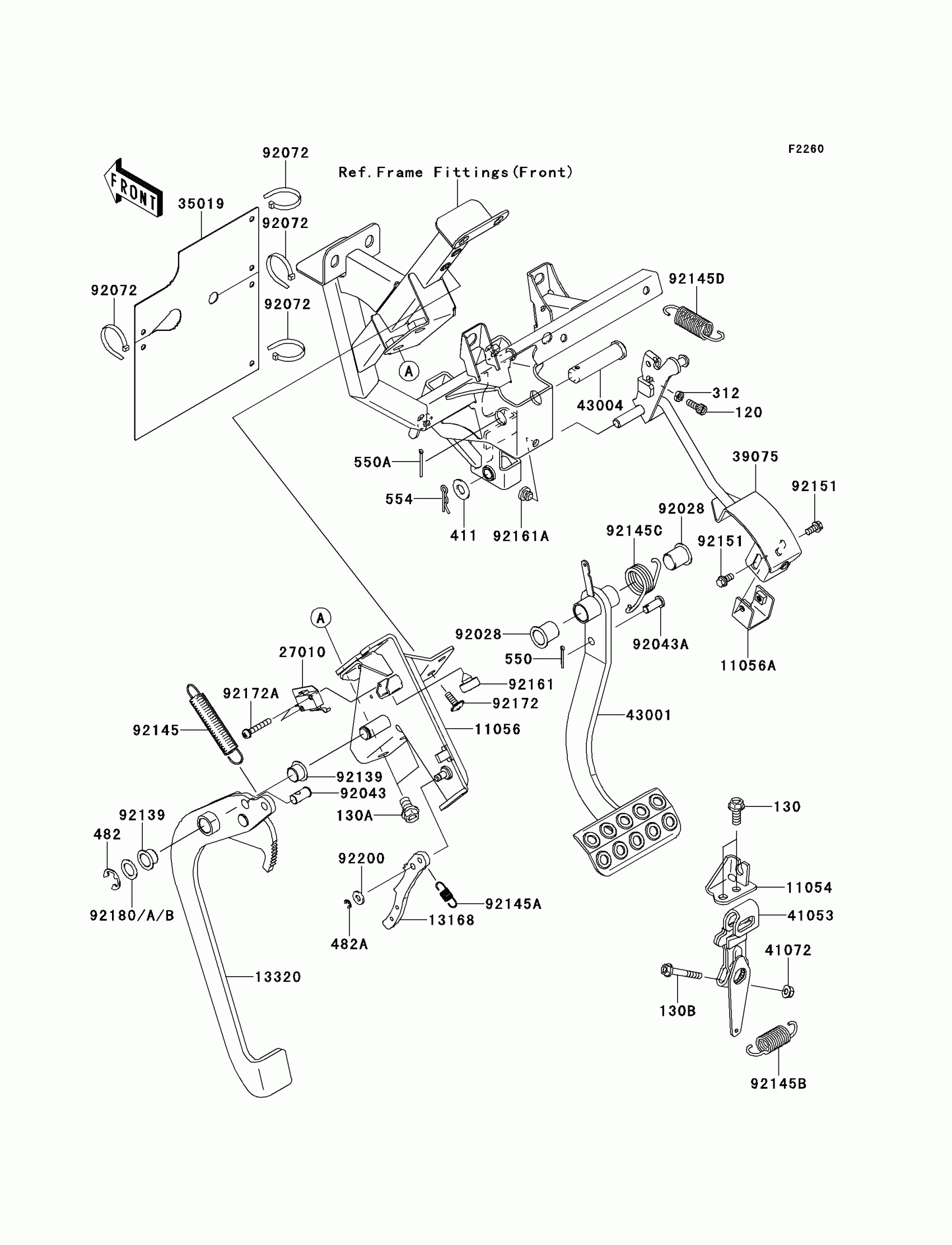

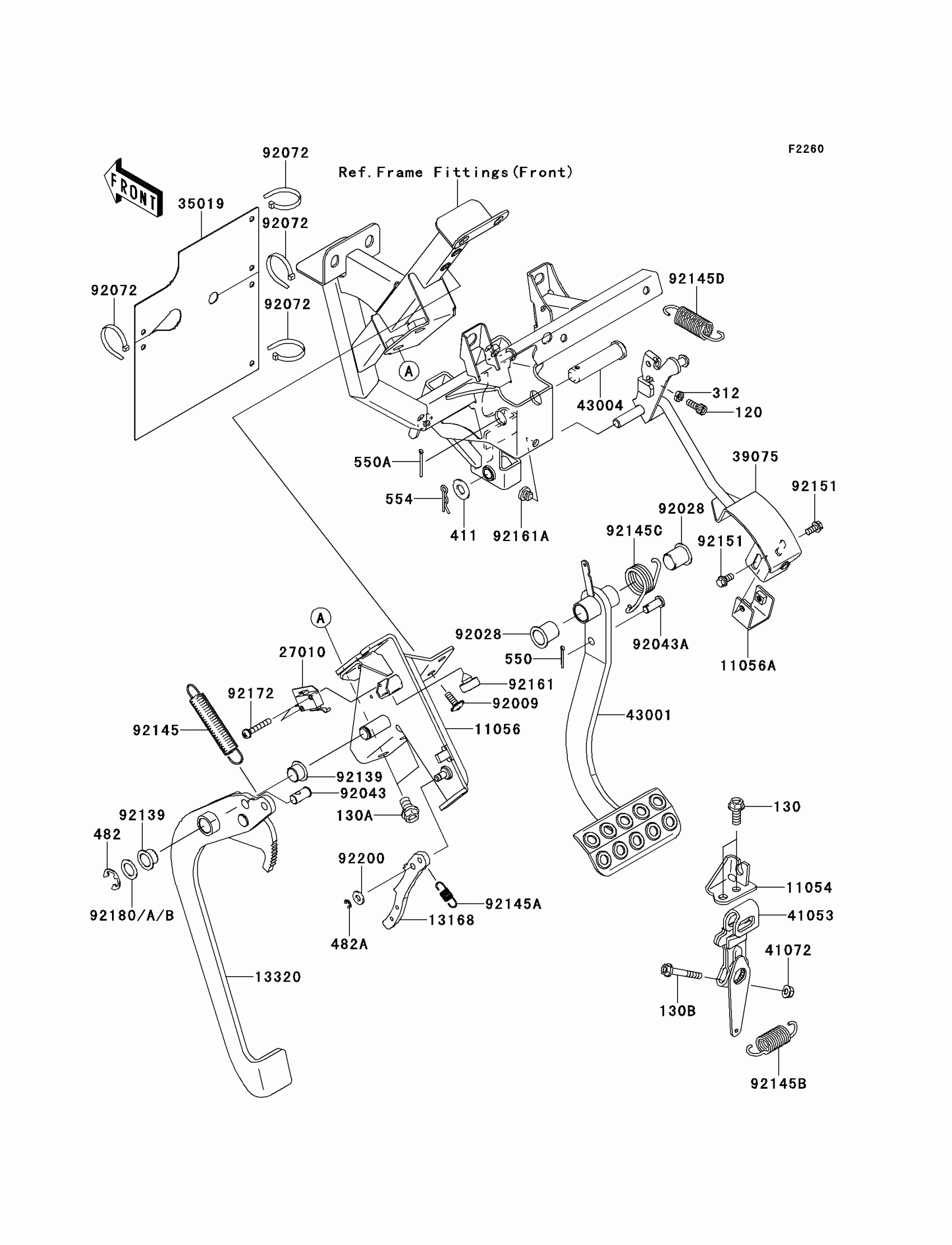

Kawasaki TERYX® 750 FI 4x4 SPORT Brake Pedal/Throttle Lever Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120CA0616

$2.49

130

BOLT-FLANGED,8X20

130BA0820

$4.14

130A

BOLT-FLANGED,10X16

130BA1016

$4.76

130B

BOLT-FLANGED,6X40

130CA0640

$2.80

312

NUT-HEX

312BA0600

$1.52

411

WASHER-PLAIN,10MM

411AA1000

$0.96

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

482A

CIRCLIP-TYPE-E,4MM

482J4000

$1.35

550

PIN-COTTER,2.5X18

550AA2518

$0.59

11054

BRACKET,BRAKE CABLE

11054-0933

$4.86

11056

BRACKET,BRAKE LEVER

11056-0007

$141.04

11056A

BRACKET

11056-0054

$7.15

13168

LEVER

13168-0174

$29.08

13320

LEVER-ASSY,BRAKE PEDAL

13320-0025

$76.07

27010

SWITCH

27010-0084

$33.04

35019

FLAP

35019-0079

$11.54

39075

LEVER-THROTTLE

39075-0015

$34.96

41053

LEVER-BRAKE CAM

41053-0010

$55.74

41072

NUT,6MM

41072-007

$3.92

43001

LEVER-BRAKE,PEDAL

43001-0103

$42.99

43004

SHAFT-BRAKE

43004-1128

$17.76

92009

SCREW,6X16

92009-1621

Unavailable

92028

BUSHING

92028-1571

$10.67

92043

PIN

92043-0124

$8.03

92043A

PIN

92043-1039

$9.91

92072

BAND,L=188

92072-1239

$1.73

92139

BUSHING

92139-0182

$4.05

92145

SPRING

92145-0446

$8.05

92145A

SPRING

92145-0447

$4.81

92145B

SPRING

92145-0563

$4.05

92145C

SPRING,BRAKE PEDAL RETURN

92145-0575

$8.05

92145D

SPRING

92145-0636

$10.43

92151

BOLT,6X12

92151-1997

$1.54

92161

DAMPER

92161-0590

$3.90

92161A

DAMPER

92161-1084

$2.67

92172

SCREW,3X20

92172-0419

$2.21

92180

SHIM,T=0.8

92180-0279

Unavailable

92180A

SHIM,T=1.0

92180-0281

Unavailable

92180B

SHIM,T=1.2

92180-0282

Unavailable

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.74

550A

PIN-COTTER,2.5X25

550AA2525

$1.36

554

PIN-SNAP,10MM

554DA1000

$1.36
