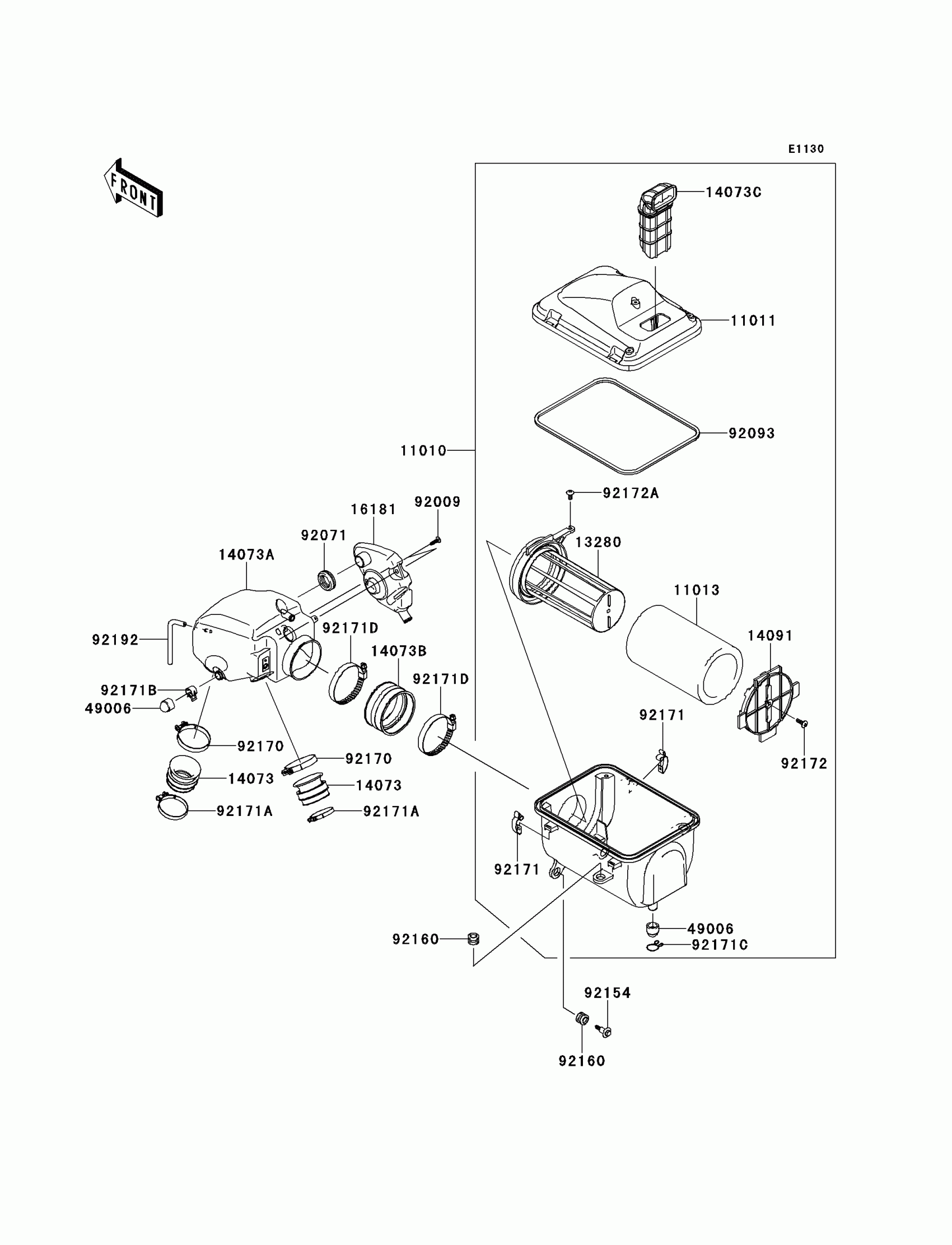

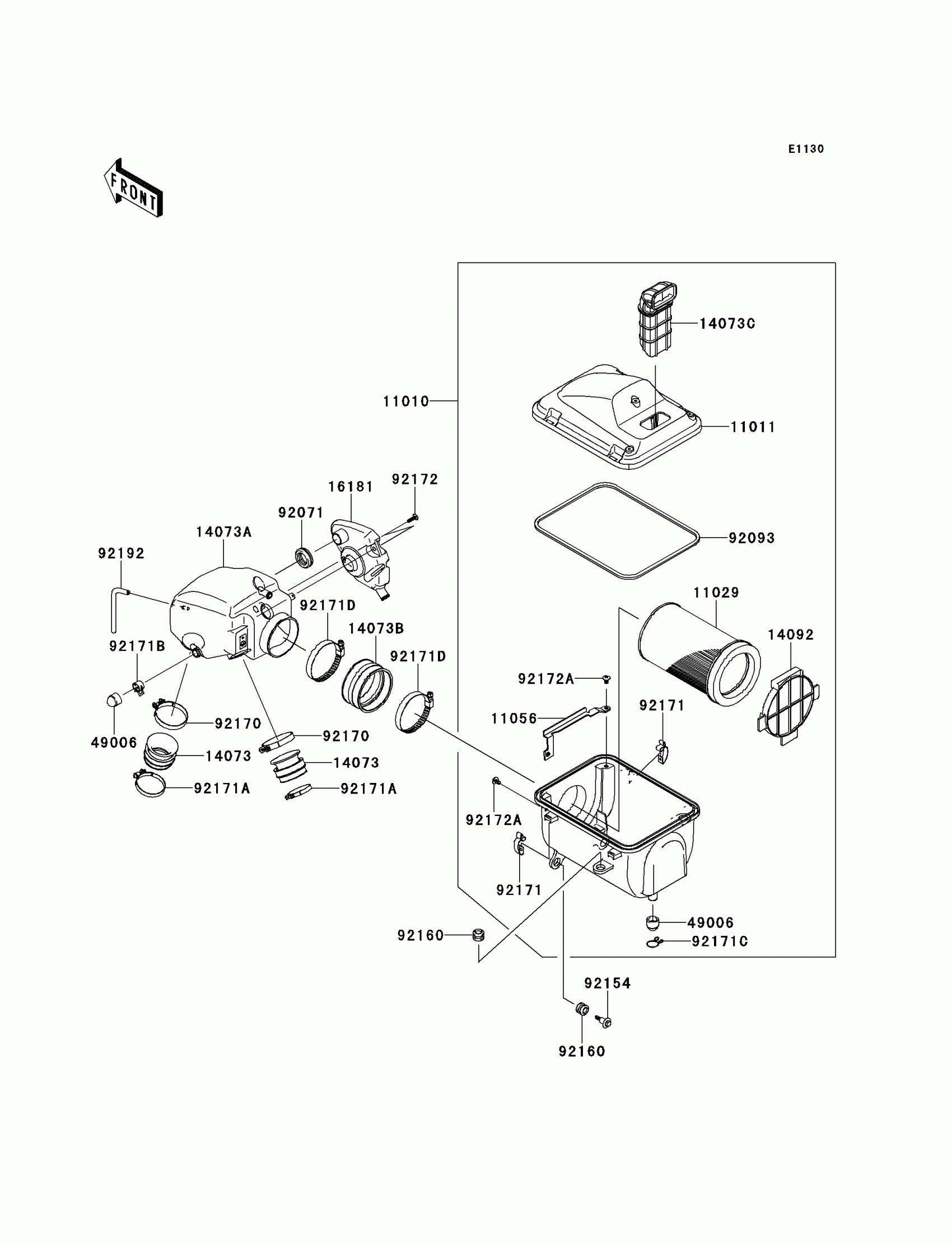

Kawasaki TERYX® 750 FI 4x4 SPORT Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0184

Unavailable

11011

CASE-AIR FILTER,UPP

11011-0140

$42.25

11013

ELEMENT-AIR FILTER

11013-0018

$8.56

13280

HOLDER

13280-0267

$11.88

14073

DUCT

14073-0160

$6.01

14073A

DUCT,A/C-THROBO

14073-0257

$126.33

14073B

DUCT,JOINT,A/C SIDE

14073-0258

$6.18

14073C

DUCT,AIR INLET

14073-0261

$19.44

14091

COVER

14091-0935

$7.36

16181

TANK-RESONATOR

16181-0015

$21.41

49006

BOOT,DRAIN

49006-3718

$4.94

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92093

SEAL

92093-0083

$6.00

92154

BOLT,FLANGED,6X27.5

92154-0029

$5.17

92160

DAMPER

92160-1594

$3.57

92170

CLAMP

92170-1448

$6.18

92171

CLAMP

92171-0225

$1.44

92171A

CLAMP

92171-0722

$11.53

92171B

CLAMP

92171-1277

$2.25

92171C

CLAMP,BOOT

92171-3711

$3.37

92171D

CLAMP

92171-3716

$7.79

92172

SCREW,6X18

92172-0130

$1.33

92172A

SCREW,6X14

92172-0131

$1.33

92172B

SCREW,TAPPING,5X20

92172-0444

$1.02

92192

TUBE,4X8X127

92192-0763

$2.69
