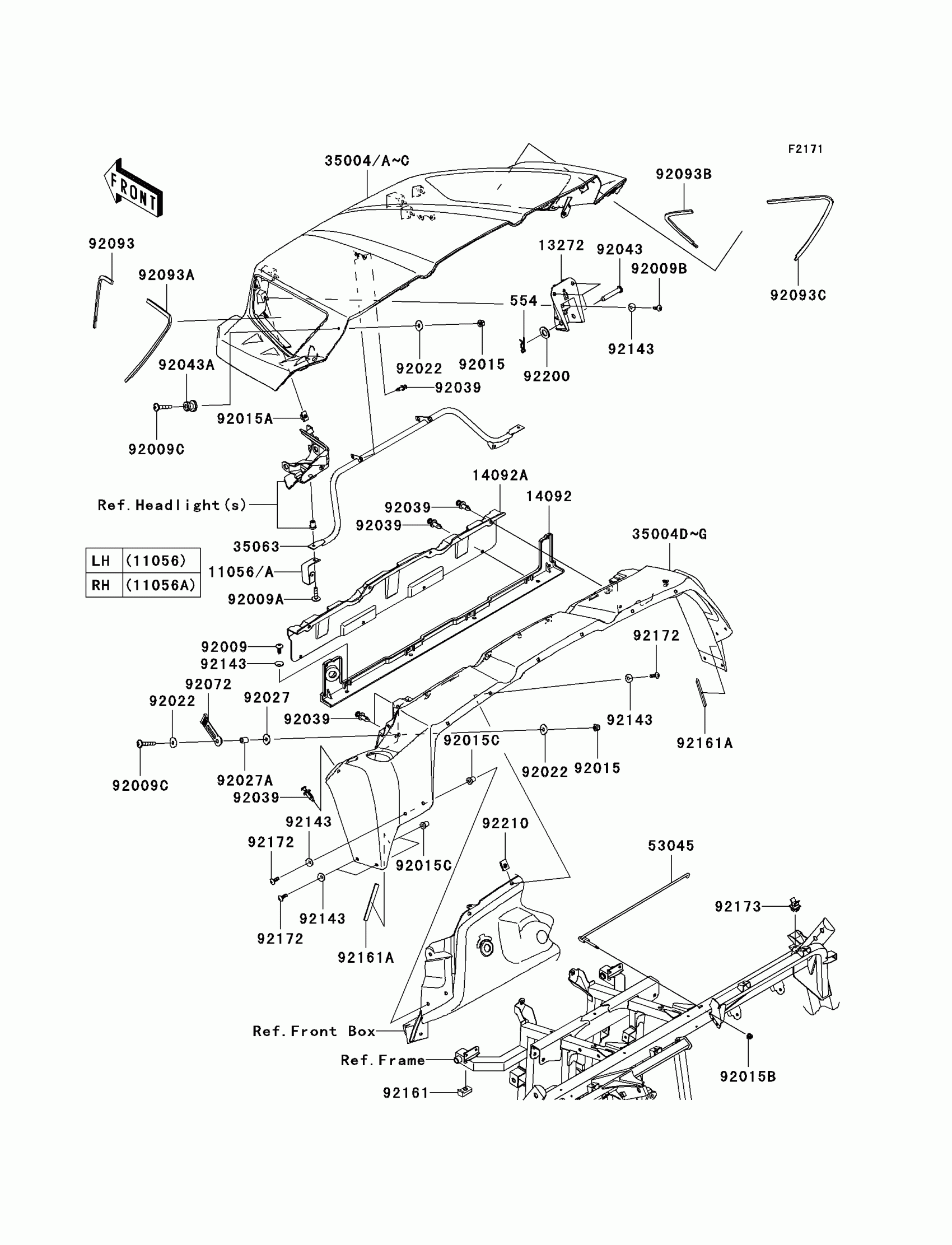

Kawasaki Teryx 750 FI 4X4 (SGE) Front Fender(s) Diagram

#

Description
Price

11056

BRACKET,LH

11056-0129

$4.20

11056A

BRACKET,RH

11056-0130

$4.20

13272

PLATE

13272-0849

$54.93

14092

COVER,BASE PLATE

14092-0059

$22.51

14092A

COVER,CHECK PLATE

14092-0060

$13.75

35004

FENDER-FRONT,FR,G.D.RED

35004-0134-31H

$721.68

35004A

FENDER-FRONT,FR,G.D.SILVER

35004-0134-31J

$721.68

35004B

FENDER-FRONT,FR,G.D.BLACK

35004-0134-31K

$721.68

35004C

FENDER-FRONT,FR,G.D.BLUE

35004-0134-31L

$721.68

35004D

FENDER-FRONT,RR,G.D.RED

35004-0143-31H

$153.34

35004E

FENDER-FRONT,RR,G.D.SILVER

35004-0143-31J

$153.34

35004F

FENDER-FRONT,RR,G.D.BLACK

35004-0143-31K

$153.34

35004G

FENDER-FRONT,RR,G.D.BLUE

35004-0143-31L

$153.34

35063

STAY,HEAD LAMP

35063-0677

$95.76

53045

HOOK-ASSY

53045-0018

$21.10

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X25

92009-1465

$2.99

92009B

SCREW,5X16,BLACK

92009-1654

$2.17

92009C

SCREW,6X35

92009-1672

$3.53

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,5MM

92015-1627

$4.47

92015B

NUT,LOCK,FLANGED,5MM

92015-1752

$3.29

92015C

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

92027

COLLAR,L=5.1

92027-1260

$4.67

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92039

RIVET

92039-1229

$0.80

92043

PIN,12.4X72.4

92043-0168

$8.08

92043A

PIN

92043-0197

$2.41

92072

BAND

92072-0144

$5.73

92093

SEAL,FR,LH

92093-0168

$7.42

92093A

SEAL,RR,LH

92093-0169

$7.42

92093B

SEAL,FR,RH

92093-0170

$7.42

92093C

SEAL,RR,RH

92093-0171

$7.42

92143

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-0861

$1.86

92161A

DAMPER

92161-0877

Unavailable

92172

SCREW,5X16

92172-0479

$1.96

92173

CLAMP

92173-0106

$5.12

92200

WASHER,13X24X2

92200-0451

$2.42

554

PIN-SNAP,12MM

554DA1200

$2.63

92210

NUT,5MM

92210-0499

$6.07
