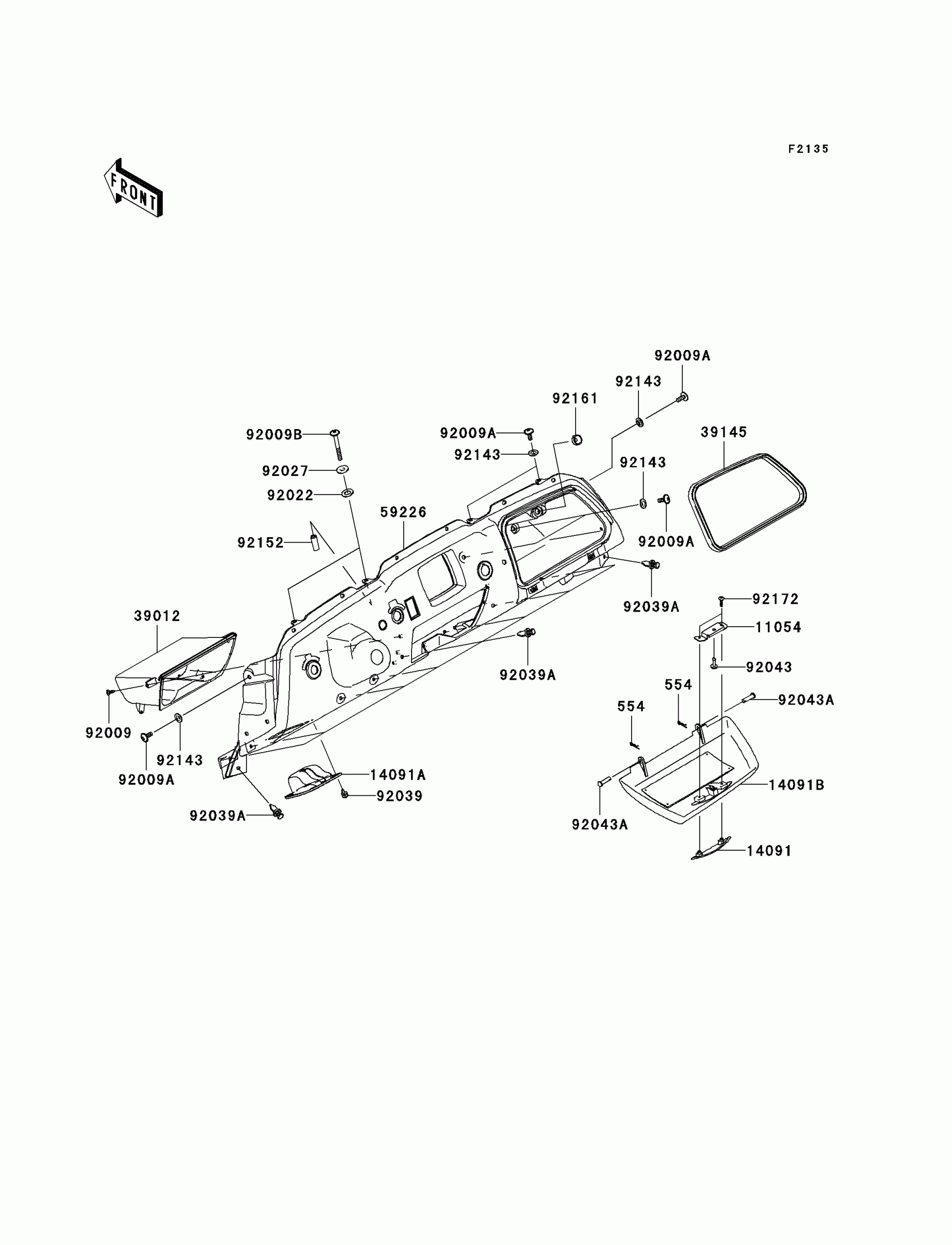

Kawasaki Teryx 750 FI 4X4 (SGE) Front Box Diagram

Description

Price

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

11054

BRACKET

11054-1789

$4.12

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

$5.41

14091A

COVER,LH,F.BLACK

14091-0702-6Z

Unavailable

14091B

COVER,STORAGE,F.BLACK

14091-0985-6Z

$30.52

39012

CASE-STORAGE,F.BLACK

39012-0017-6Z

$45.56

39145

TRIM-SEAL,L=940

39145-0029

$18.54

59226

PANEL-CONTROL,F.BLACK

59226-0019-6Z

$150.97

92009

SCREW,TAPPING,4X12

92009-1444

$2.23

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,6X56

92009-1829

$2.12

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,L=4.7

92027-1964

$5.61

92039

RIVET

92039-0046

$2.98

92039A

RIVET

92039-1229

$0.68

92043

92043-0138

$8.54

92043A

PIN,6X23

92043-0164

$4.17

92143

COLLAR

92143-1087

$2.98

92152

COLLAR,7.95X15.88X40

92152-0777

$4.71

92161

DAMPER

92161-0568

$1.08

92172

SCREW,TAPPING,4X16

92172-0347

$1.32
