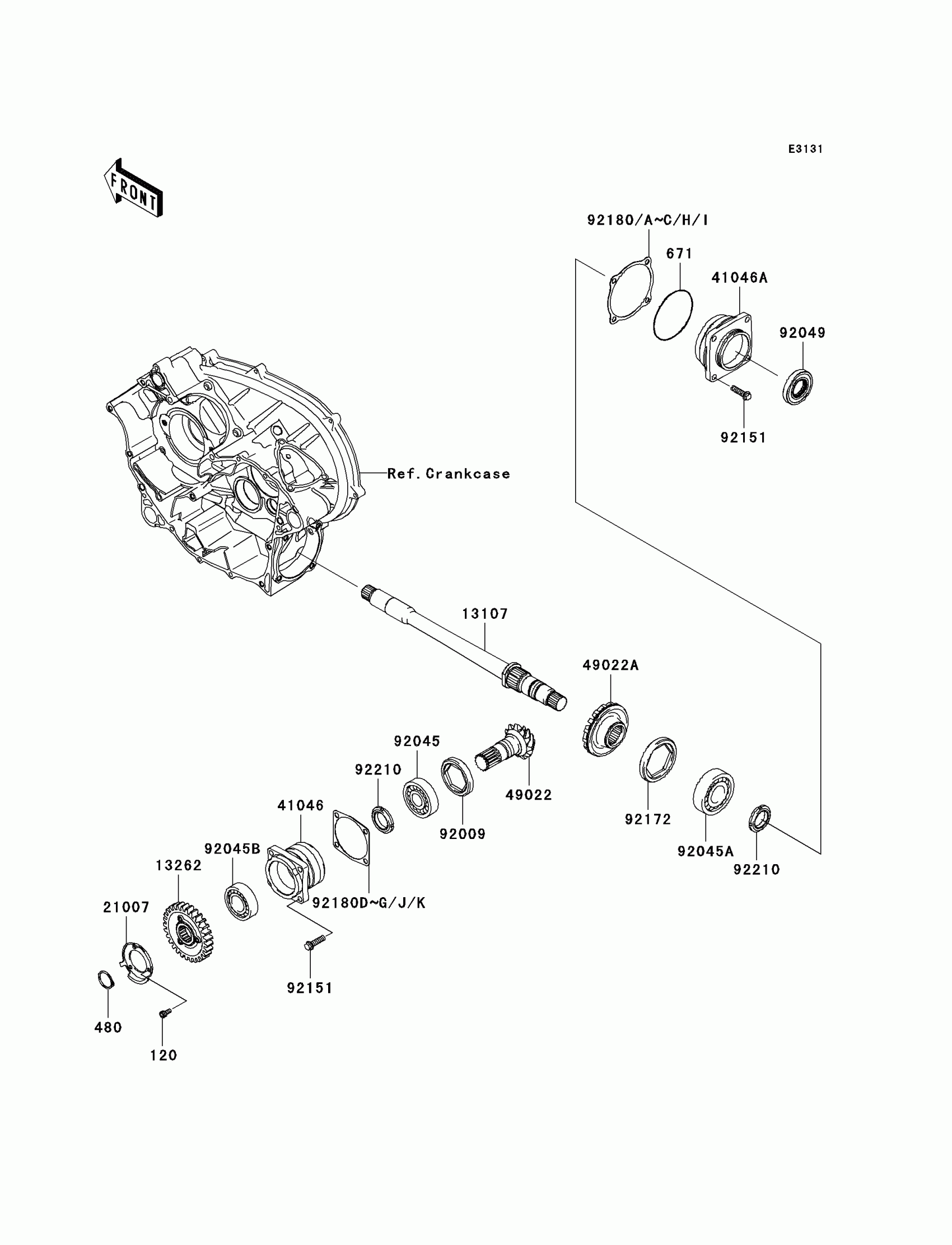

Kawasaki Teryx 750 FI 4X4 (SGE) Front Bevel Gear Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120CA0612

$1.71

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

671

O RING

671D2585

$7.98

13107

SHAFT

13107-0176

$334.80

13262

GEAR,OUTPUT DRIVEN,29T

13262-0548

$98.41

21007

ROTOR,REVERSE SENSOR

21007-1416

$9.43

41046

HOUSING-BEARING

41046-1101

$139.87

41046A

HOUSING-BEARING

41046-1102

Unavailable

49022

GEAR-BEVEL,DRIVE,11T

49022-0044

$225.61

49022A

GEAR-BEVEL,DRIVEN,21T

49022-0045

$225.61

92009

SCREW,64MM

92009-1914

$29.63

92045

BEARING-BALL

92045-0131

Unavailable

92045A

BEARING-BALL,6306SH2

92045-1190

$40.80

92045B

BEARING-BALL,62/28

92045-1207

$19.03

92049

SEAL-OIL

92049-0095

$18.11

92151

BOLT-FLANGED-SMALL,8X30

92151-1688

$2.80

92172

SCREW,SET,75X10

92172-0371

$46.79

92180

SHIM,DRIVEN,T=0.15

92180-1307

Unavailable

92180A

SHIM,DRIVEN,T=0.20

92180-1308

Unavailable

92180B

SHIM,DRIVEN,T=0.50

92180-1309

Unavailable

92180C

SHIM,DRIVEN,T=0.80

92180-1310

Unavailable

92180D

SHIM,DRIVE,T=0.15

92180-1311

Unavailable

92180E

SHIM,DRIVE,T=0.20

92180-1312

Unavailable

92180F

SHIM,DRIVE,T=0.50

92180-1313

Unavailable

92180G

SHIM,DRIVE,T=0.80

92180-1314

Unavailable

92180H

SHIM,DRIVEN,T=1.00

92180-1349

Unavailable

92180I

SHIM,DRIVEN,T=1.20

92180-1350

Unavailable

92180J

SHIM,DRIVE,T=1.00

92180-1351

Unavailable

92180K

SHIM,DRIVE,T=1.20

92180-1352

Unavailable

92210

NUT,30MM

92210-1294

$40.82
