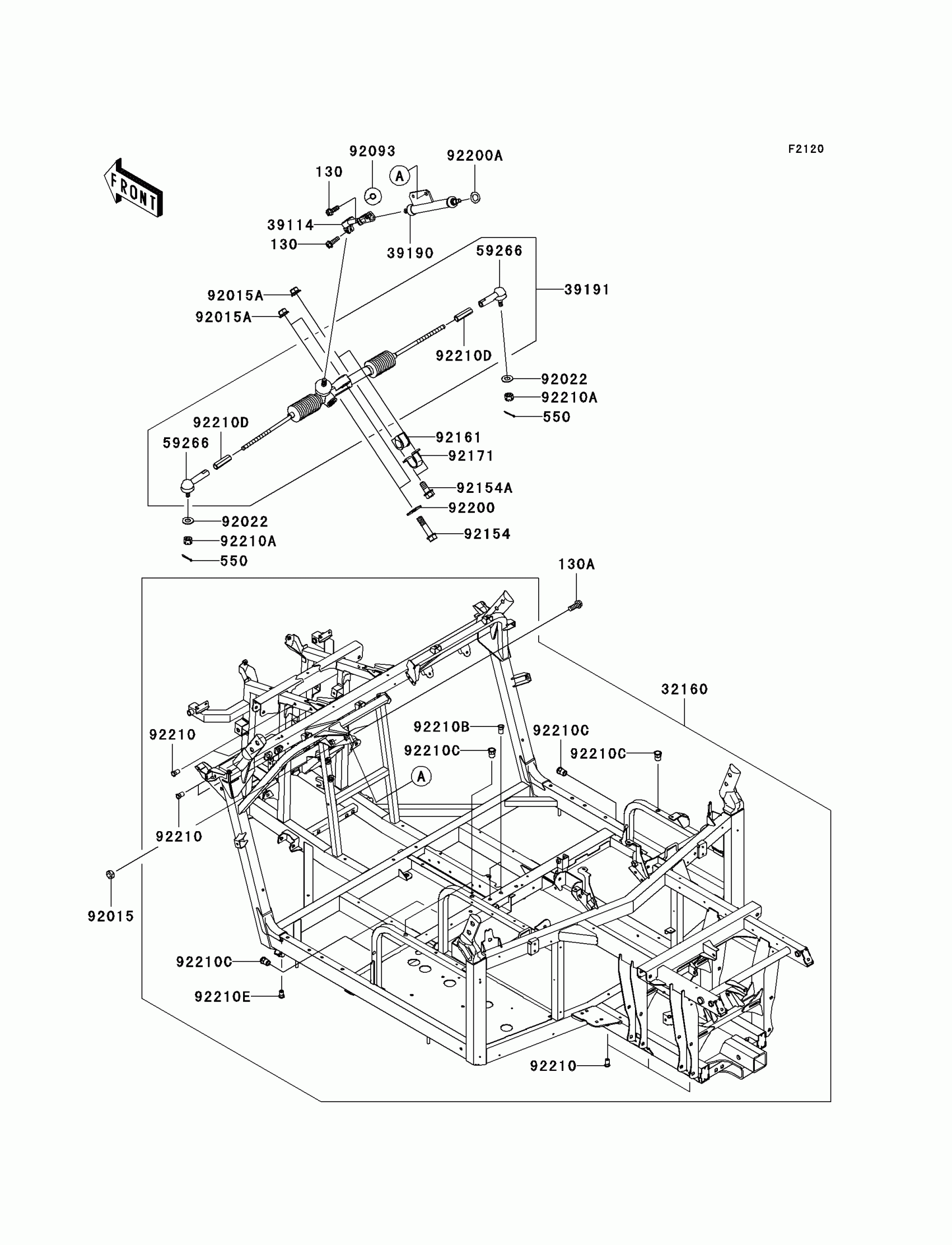

Kawasaki Teryx 750 FI 4X4 (SGE) Frame Diagram
#
Description
Price
130
BOLT-FLANGED,8X25
130BA0825
$2.95
130A
BOLT-FLANGED,10X25
130BA1025
$3.40
550
PIN-COTTER,3.0X25
550AA3025
$0.62
32160
FRAME-COMP
32160-0502
$2,625.70
39114
SHAFT-COMP-STRG
39114-0011
$334.80
39190
SHAFT-ASSY-STEERING
39190-0004
$242.95
39191
GEAR-ASSY-STEERING
39191-0011
Unavailable
59266
JOINT-BALL
59266-0038
$59.96
92015
NUT,LOCK,10MM,BLACK
92015-1189
$7.34
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92022
WASHER
92022-1831
$5.52
92093
SEAL,STEERING SHAFT
92093-0070
$3.32
92154
BOLT,FLANGED,12X60
92154-0072
$7.95
92154A
BOLT,FLANGED,12X27
92154-0073
$9.53
92161
DAMPER,STEERING GEAR
92161-0506
$9.58
92171
CLAMP,STEERING GEAR
92171-1866
$10.85
92200
WASHER,12.3X38X2.0
92200-0379
$4.86
92200A
WASHER,15X25X1.6
92200-0460
$3.71
92210
NUT,POP,6MM,L=16.5
92210-0324
$5.33
92210A
NUT,CASTLE,12MM
92210-0395
$3.86
92210B
NUT,FLANGED,8MM
92210-0527
$4.49
92210C
NUT,10MM
92210-0573
$10.86
92210D
NUT,14MM
92210-0588
$30.16
92210E
NUT,POP,6MM,L=15
92210-1397
$5.48
